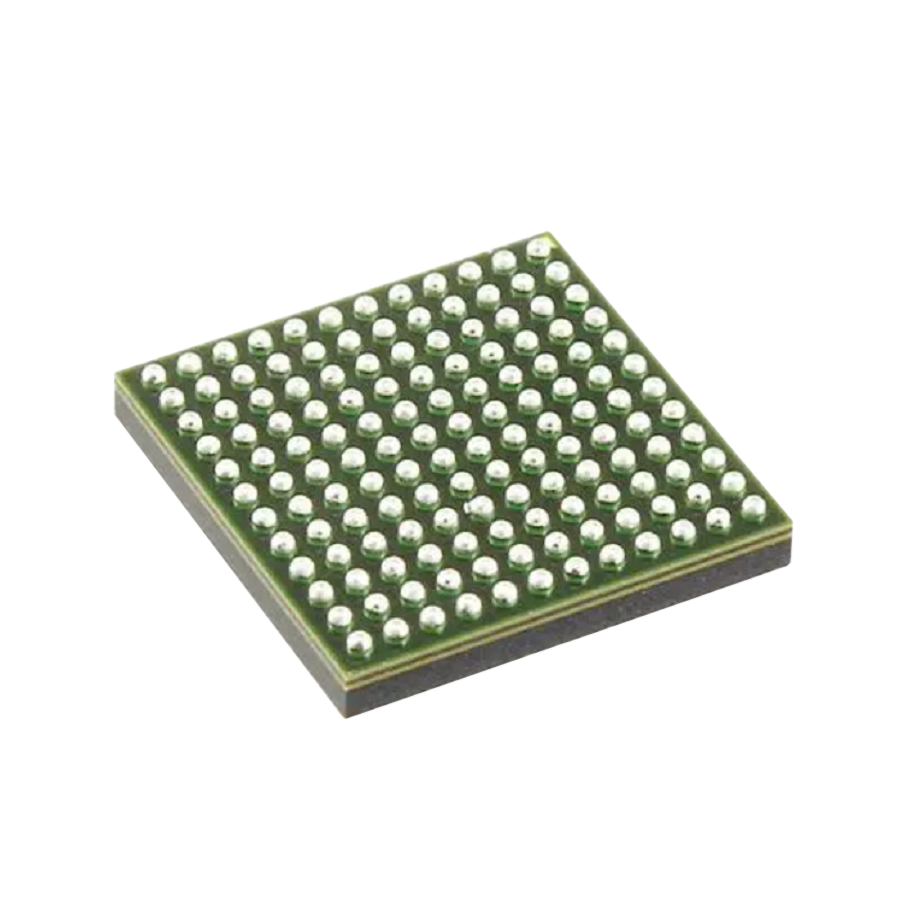

ATSAM3U2EA-CU
Manufacturer:
Microchip
Mfr.Part #:
ATSAM3U2EA-CU
Datasheet:
Description:
Microcontrollers BGA-144 SMD/SMT 32 bit 128 kb FLASH
| Parameter | Value |
|---|---|
| Length | 10 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 144 |
| Packaging | Tray |
| RoHS | Compliant |
| Contact Plating | Copper, Silver, Tin |
| Frequency | 96 MHz |
| Core Architecture(core/core processor) | ARM |
| Interface | EBI/EMI, I²C, MMC, SPI, UART, USART, USB |
| Memory Size | 128 kb |
| Memory Type | FLASH |
| Number of I/Os | 96 |
| Oscillator Type | Internal |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Operating Supply Voltage | 1.8 V |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 1.62 V |
| Max Frequency | 96 MHz |
| RAM Size | 36 kB |
| Data Bus Width | 32 bit |
| Number of Programmable I/O | 96 |
| Number of Timers/Counters | 8 |
| Schedule B | 8542310000 |
| Max Clock Frequency | 96 MHz |
| ADC Resolution | 12 bit |
Stock: 5
Distributors
pcbx
pcbxUnit Price$4.96885
Ext.Price$4.96885
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.96885 | $4.96885 |
| 10 | $4.73819 | $47.38190 |
| 25 | $4.51830 | $112.95750 |
| 50 | $4.30015 | $215.00750 |
| 100 | $4.09255 | $409.25500 |
