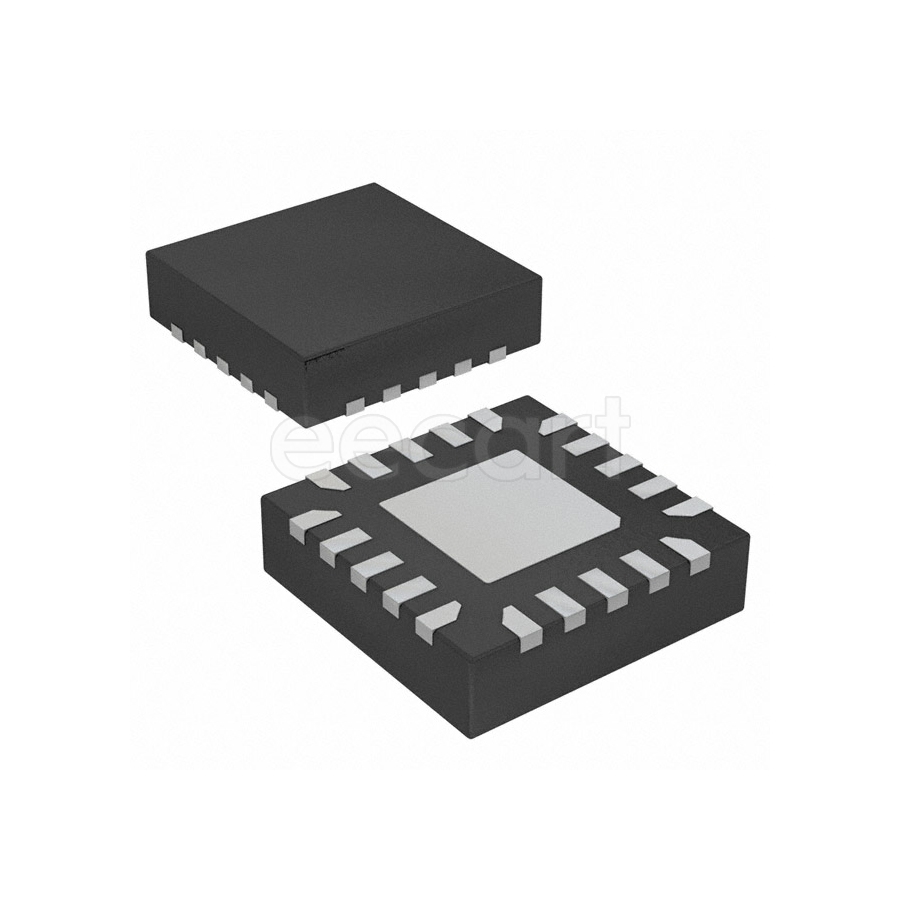

ATTINY441-MMH
Manufacturer:
Microchip
Mfr.Part #:
ATTINY441-MMH
Datasheet:
Description:
Microcontrollers VQFN-20 SMD/SMT 8 bit 4 kb FLASH
| Parameter | Value |
|---|---|
| Length | 3.1 mm |
| Width | 3.1 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 20 |
| Height | 800 µm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Frequency | 16 MHz |
| Core Architecture(core/core processor) | AVR |
| Interface | I²C, SPI, UART, USART |
| Memory Size | 4 kb |
| Memory Type | FLASH |
| Number of I/Os | 12 |
| Oscillator Type | Internal |
| Peripherals | PWM |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.7 V |
| Number of ADC Channels | 17 |
| Max Frequency | 16 MHz |
| RAM Size | 256 B |
| Data Bus Width | 8 bit |
| Number of PWM Channels | 6 |
| Number of Programmable I/O | 12 |
| Number of Timers/Counters | 3 |
| Schedule B | 8542310000 |
| Operating Supply Voltage | 1.7 V to 5.5 V |
| RoHS | Compliant |
| Packaging | Tray |
| ADC Resolution | 10 bit |
| Max Clock Frequency | 16 MHz |
