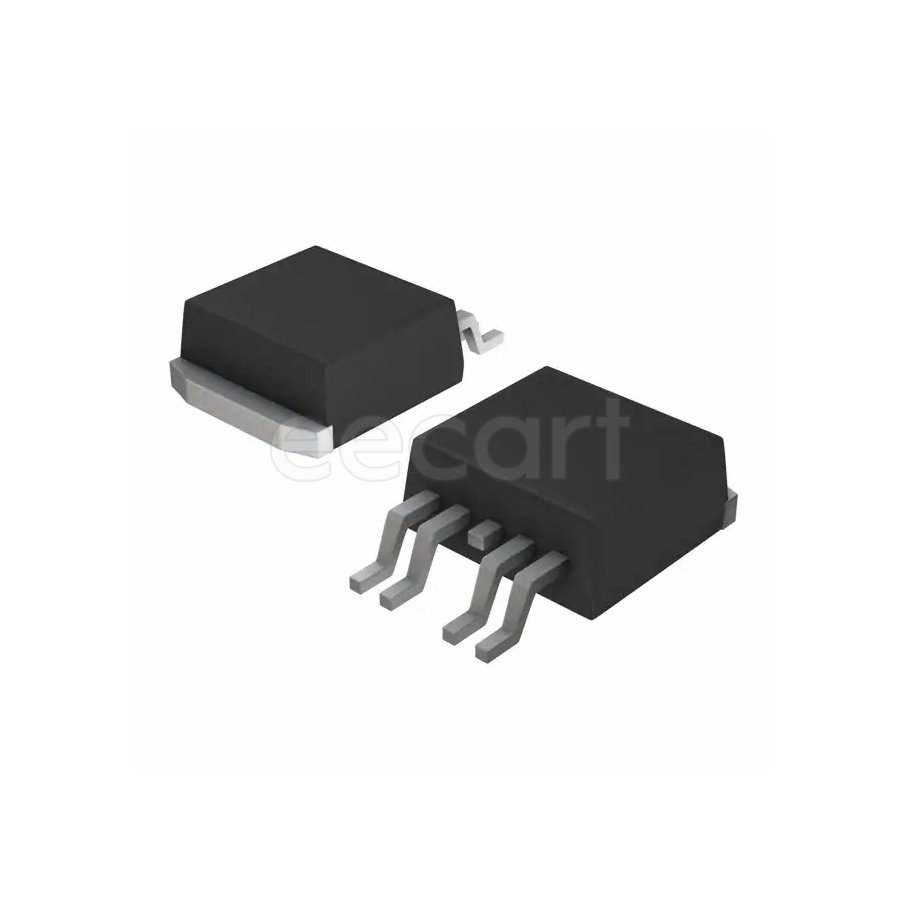

AUIPS7111STRL
Manufacturer:
Infineon
Mfr.Part #:
AUIPS7111STRL
Datasheet:
Description:
Gate Drivers TO-263-5 SMD/SMT Half-Bridge Drivers High Side
| Parameter | Value |
|---|---|
| Length | 10.668 mm |
| Width | 9.65 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Resistance | 6 mΩ |
| Power Rating | 2.5 W |
| Height | 4.826 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Manufacturer Package Identifier | PG-TO263-5-2 |
| Voltage | 50 V |
| REACH SVHC | No SVHC |
| Type | High Side |
| Current | 10 A |
| Current Rating | 10 A |
| Interface | On/Off |
| Output Current | 10 A |
| Operating Supply Voltage | 50 V |
| Lifecycle Status | NRND (Last Updated: 10 months ago) |
| Max Power Dissipation | 2.5 W |
| Max Supply Voltage | 50 V |
| Min Supply Voltage | 8 V |
| Power Dissipation | 2.5 W |
| Max Output Current | 10 A |
| Number of Channels | 1 |
| Output Configuration | High Side |
| Number of Outputs | 1 |
| Fall Time | 13 µs |
| Output Current per Channel | 10 A |
| Clamping Voltage | 65 V |
| Nominal Input Voltage | 50 V |
| Number of Drivers | 1 |
| Fault Protection | Over Temperature |
| Package Quantity | 800 |
| Gate Type | High Side |
| Configuration | Half-Bridge Drivers |
