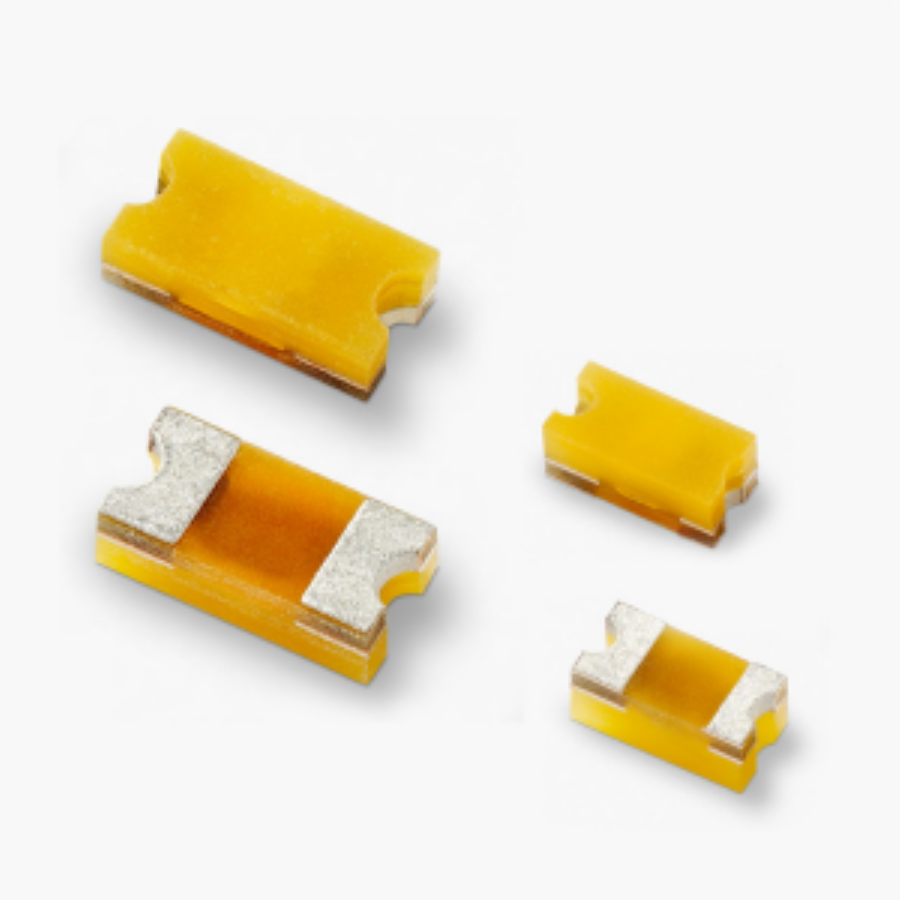

AXGD10402KR
Manufacturer:
Littelfuse
Mfr.Part #:
AXGD10402KR
Datasheet:
Description:
TVS Diodes 0402(1005 Metric) SMD/SMT Working Voltage:24 V Clamping Voltage:40 V Polarity:Bidirectional
| Parameter | Value |
|---|---|
| Capacitance | 40 fF |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Case Code (Metric) | 0402 |
| Height | 510 µm |
| Packaging | Reel |
| RoHS | Non-Compliant |
| Polarity | Bidirectional |
| Max Voltage Rating (DC) | 24 V |
| Working Voltage | 24 V |
| Operating Supply Voltage | 24 V |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Number of Channels | 1 |
| Direction(Counting Sequence) | Bidirectional |
| Clamping Voltage | 40 V |
| Voltage ESD Contact | 30 kV |
| Voltage ESD Air Gap | 30 kV |
| Diode Capacitance | 0.04 pF |
Stock: 9703
Distributors
pcbx
pcbxUnit Price$0.11635
Ext.Price$0.11635
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11635 | $0.11635 |
| 10 | $0.10317 | $1.03170 |
| 50 | $0.09149 | $4.57450 |
| 100 | $0.08032 | $8.03200 |
| 500 | $0.07052 | $35.26000 |
| 1000 | $0.06552 | $65.52000 |
| 3000 | $0.06087 | $182.61000 |
| 5000 | $0.05655 | $282.75000 |
