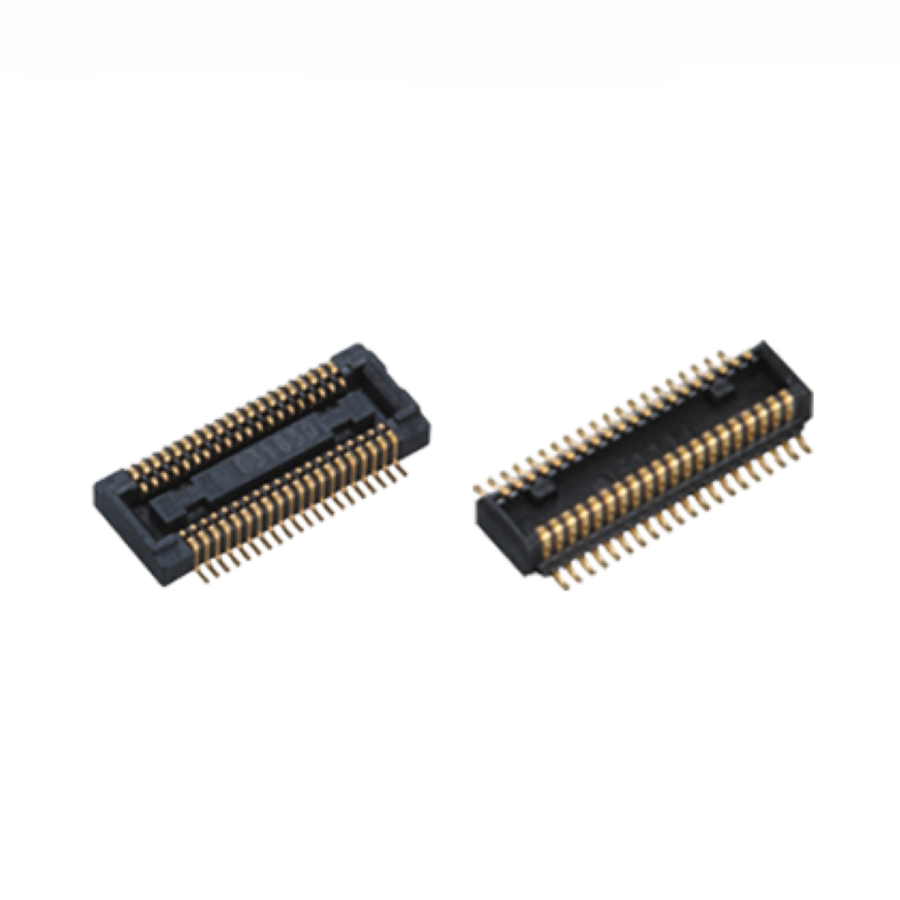

AXK840145WG
Manufacturer:
Panasonic
Mfr.Part #:
AXK840145WG
Datasheet:
Description:
Board to Board Connectors SMD/SMT Number of Positions:40 Number of Rows:2 Pitch:400 µm
| Parameter | Value |
|---|---|
| Length | 9.1 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 40 |
| Packaging | Reel |
| Voltage Rating | 60 V |
| Depth | 3.12 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 400 µm |
| Current Rating | 300 mA |
| Max Current Rating | 5 A |
| Max Voltage Rating (DC) | 6.06 kV |
| Orientation | Straight |
| Number of Contacts | 40 |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Contact Resistance | 70 mΩ |
| Max Voltage Rating (AC) | 60 V |
| Housing Color | Black |
| Stack Height | 1.5 mm, 2 mm |
| Mated Stacking Heights | 2.5 mm |
| Mounting Angle | Vertical |
Stock: 2444
Distributors
pcbx
pcbxUnit Price$1.15756
Ext.Price$1.15756
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.15756 | $1.15756 |
| 10 | $0.98112 | $9.81120 |
| 25 | $0.91951 | $22.98775 |
| 50 | $0.87548 | $43.77400 |
| 100 | $0.83368 | $83.36800 |
| 300 | $0.78763 | $236.28900 |
| 500 | $0.74414 | $372.07000 |
| 1000 | $0.70862 | $708.62000 |
| 3000 | $0.65579 | $1967.37000 |
