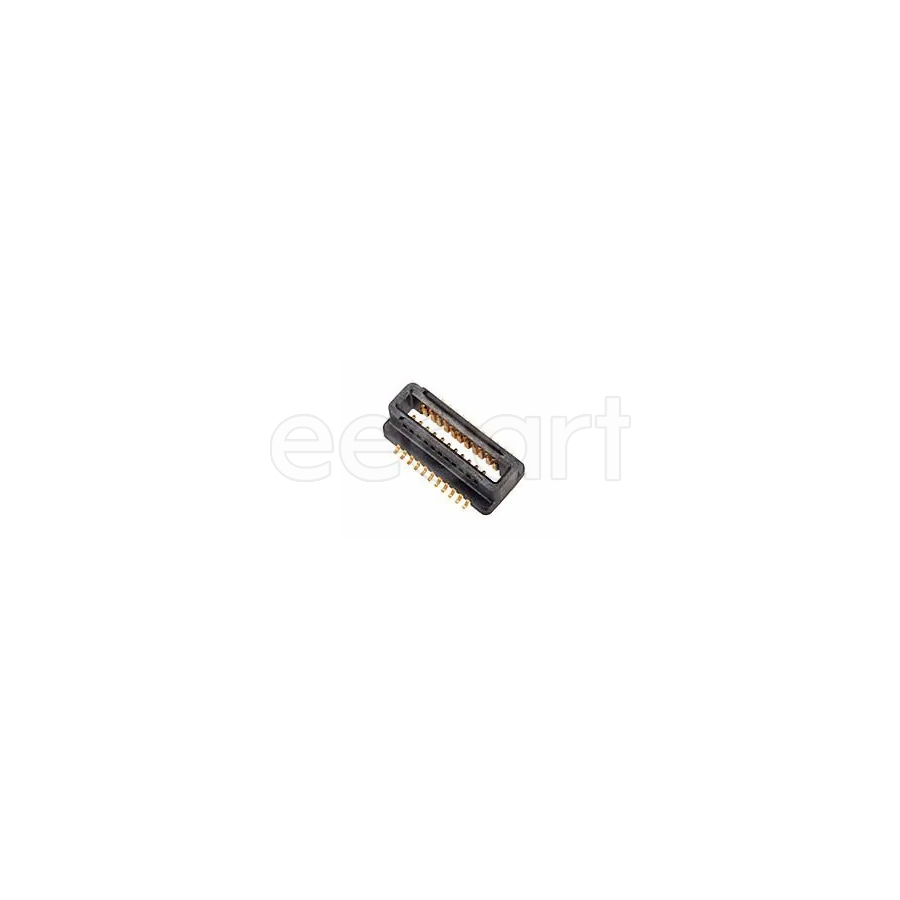

AXN420530S
Manufacturer:
Panasonic
Mfr.Part #:
AXN420530S
Datasheet:
Description:
Board to Board Connectors SMD/SMT Number of Positions:20 Number of Rows:2 Pitch:800 µm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Voltage Rating | 60 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 800 µm |
| Current Rating | 500 mA |
| Max Current Rating | 500 mA |
| Max Voltage Rating (DC) | 6.06 kV |
| Orientation | Straight |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Housing Material | Resin |
| Contact Resistance | 60 mΩ |
| Stack Height | 5 mm, 5.5 mm, 8 mm |
| Mated Stacking Heights | 8 mm |
| Mounting Angle | Vertical |
