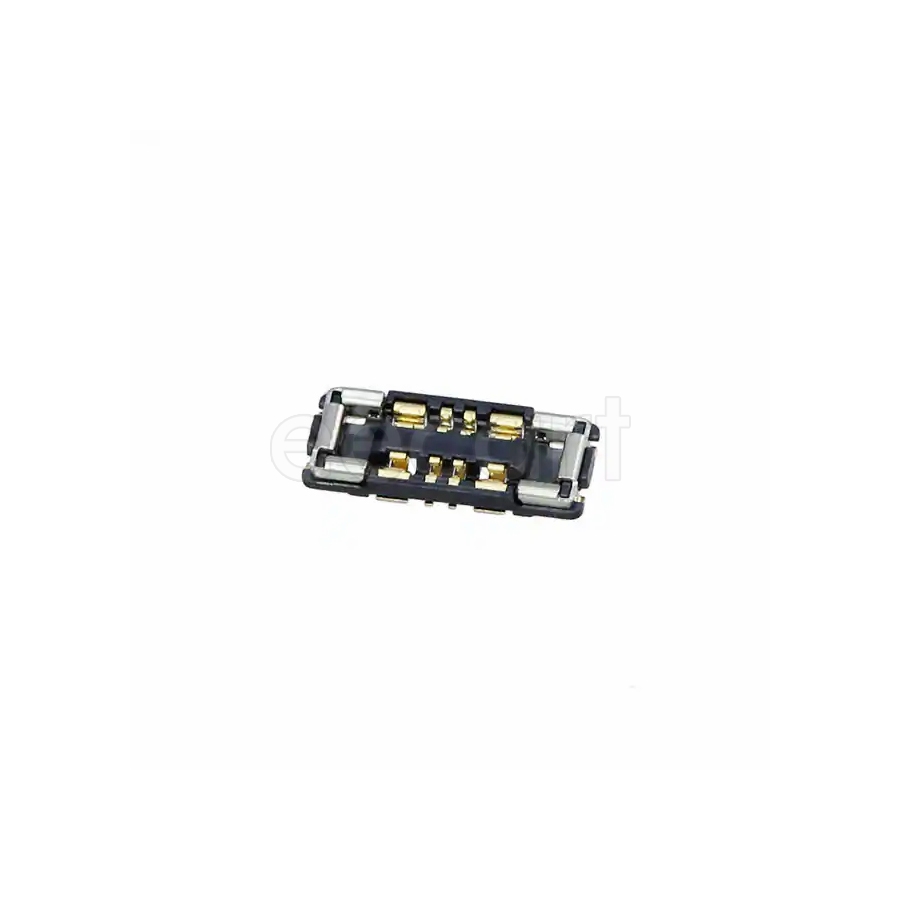

AXT530124
Manufacturer:
Panasonic
Mfr.Part #:
AXT530124
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Socket Number of Positions:30 Pitch:400 µm
| Parameter | Value |
|---|---|
| Length | 8.5 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Voltage Rating | 60 V |
| Depth | 3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 400 µm |
| Current Rating | 300 mA |
| Max Current Rating | 5 A |
| Max Voltage Rating (DC) | 60 V |
| Orientation | Straight |
| Gender | Receptacle |
| Number of Contacts | 30 |
| Connector Type | Socket |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Housing Material | Polymer |
| Contact Resistance | 90 mΩ |
| Max Voltage Rating (AC) | 60 V |
| Mated Stacking Heights | 1 mm |
Stock: 6012
Distributors
pcbx
pcbxUnit Price$0.76338
Ext.Price$0.76338
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.76338 | $0.76338 |
| 10 | $0.64884 | $6.48840 |
| 25 | $0.60817 | $15.20425 |
| 50 | $0.57914 | $28.95700 |
| 100 | $0.55149 | $55.14900 |
| 300 | $0.52101 | $156.30300 |
| 500 | $0.49221 | $246.10500 |
| 1000 | $0.46871 | $468.71000 |
| 3000 | $0.43376 | $1301.28000 |
