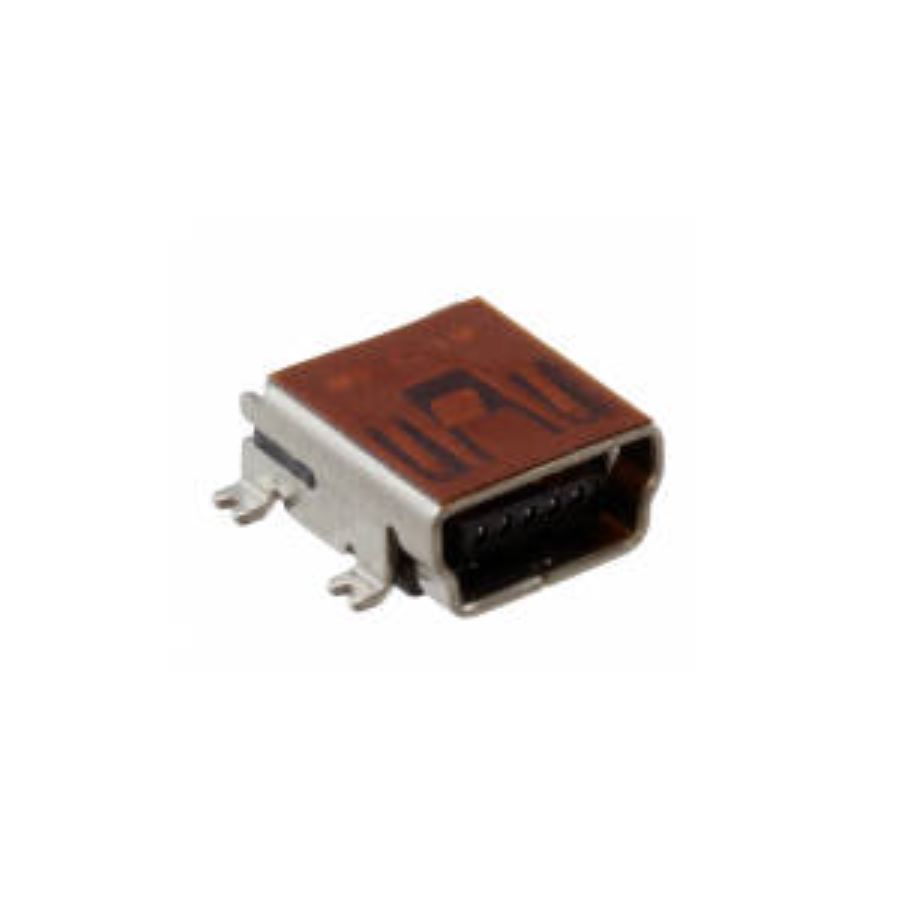

10033526-N3212MLF
Manufacturer:
Amphenol
Mfr.Part #:
10033526-N3212MLF
Datasheet:
Description:
USB Connectors SMD/SMT USB - mini B Female USB 2.0
| Parameter | Value |
|---|---|
| Length | 9.9 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 5 |
| Height | 4.15 mm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Depth | 9.4 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold, Nickel |
| Pitch | 800 µm |
| Type | USB - mini B |
| Number of Terminals | 5 |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 5 |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle, USB |
| Number of Positions | 5 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Plating | Nickel |
| Mounting Angle | Right Angle |
Stock: 98
Distributors
pcbx
pcbxUnit Price$0.69379
Ext.Price$0.69379
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.69379 | $0.69379 |
| 10 | $0.56784 | $5.67840 |
| 25 | $0.52407 | $13.10175 |
| 50 | $0.48367 | $24.18350 |
| 100 | $0.44639 | $44.63900 |
| 300 | $0.42597 | $127.79100 |
| 500 | $0.40649 | $203.24500 |
| 1000 | $0.38790 | $387.90000 |
