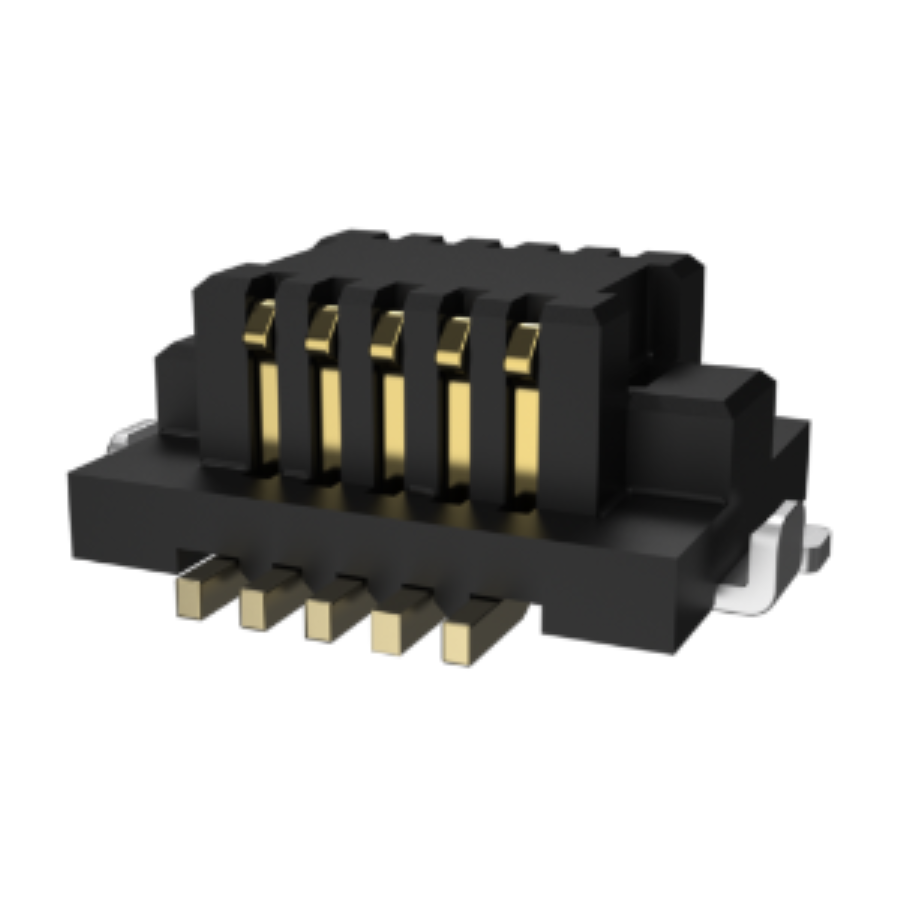

10132798-031100LF
Manufacturer:
Amphenol
Mfr.Part #:
10132798-031100LF
Datasheet:
Description:
Board to Board Connectors SMD/SMT Receptacle Number of Positions:30 Number of Rows:2 Pitch:500 µm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 30 |
| Packaging | Reel |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Orientation | Vertical |
| Connector Type | Receptacle |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Housing Material | Thermoplastic (TP) |
| Stack Height | 3 mm |
| Mated Stacking Heights | 4.5 mm |
| Schedule B | 8536694040 |
| Mounting Angle | Vertical |
Stock: 6185
Distributors
pcbx
pcbxUnit Price$0.59417
Ext.Price$0.59417
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.59417 | $0.59417 |
| 10 | $0.50356 | $5.03560 |
| 25 | $0.47192 | $11.79800 |
| 50 | $0.44970 | $22.48500 |
| 100 | $0.42832 | $42.83200 |
| 300 | $0.39911 | $119.73300 |
| 500 | $0.37190 | $185.95000 |
| 1000 | $0.35736 | $357.36000 |
