7111S2015X02LF
Manufacturer:
Amphenol
Mfr.Part #:
7111S2015X02LF
Datasheet:
Description:

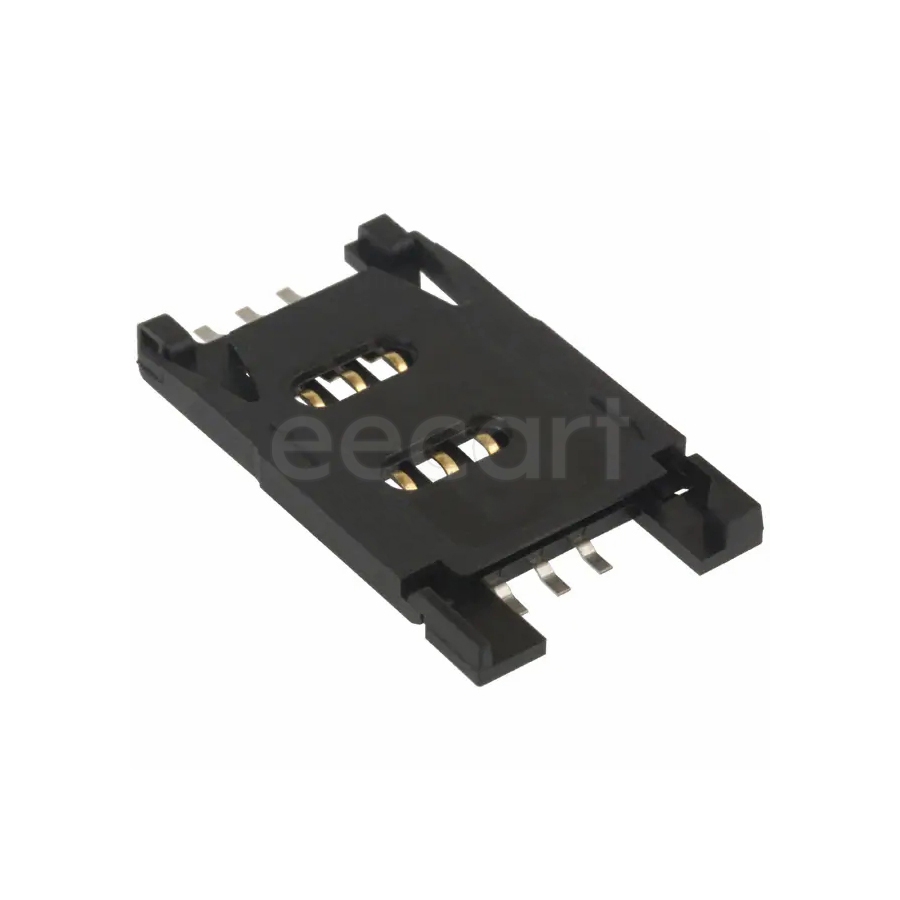

Memory Connectors SMD/SMT Number of Positions:6 Connector, Socket
| Parameter | Value |
|---|---|
| Length | 17.2 mm |
| Width | 17.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 90 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 29.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Flammability Rating | UL94V-1 |
| Orientation | Straight |
| Gender | Female |
| Number of Contacts | 6 |
| Connector Type | Connector, Socket |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 25.3 mm |
| Housing Material | Thermoplastic |
| Housing Color | Black |
Stock: 30
Distributors
pcbx
pcbxUnit Price$0.76138
Ext.Price$0.76138
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.76138 | $0.76138 |
| 10 | $0.63379 | $6.33790 |
| 25 | $0.59060 | $14.76500 |
| 50 | $0.55035 | $27.51750 |
| 100 | $0.51284 | $51.28400 |
| 300 | $0.48152 | $144.45600 |
| 500 | $0.45212 | $226.06000 |
| 1000 | $0.43136 | $431.36000 |
