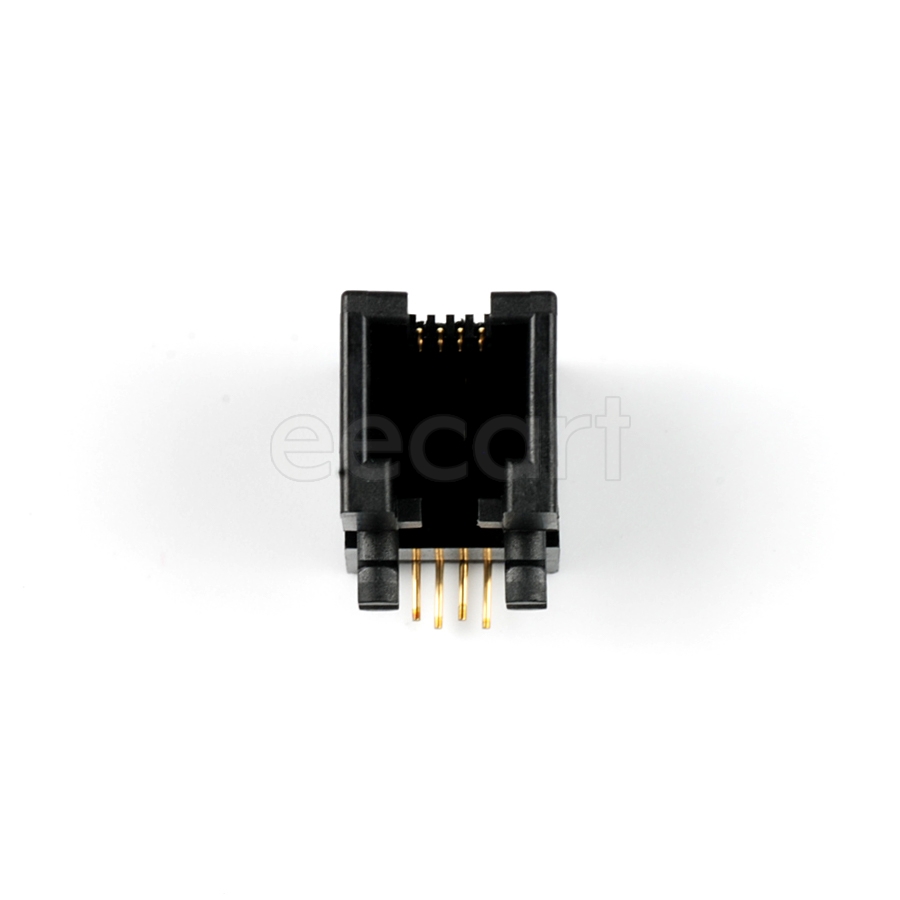

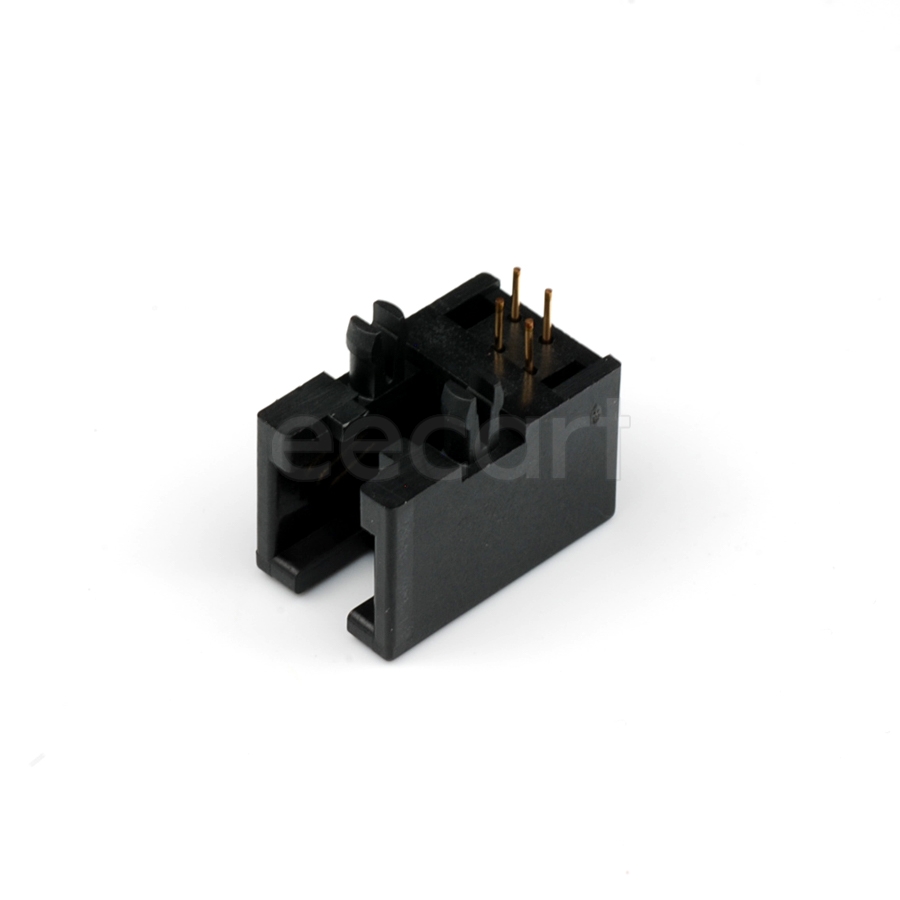

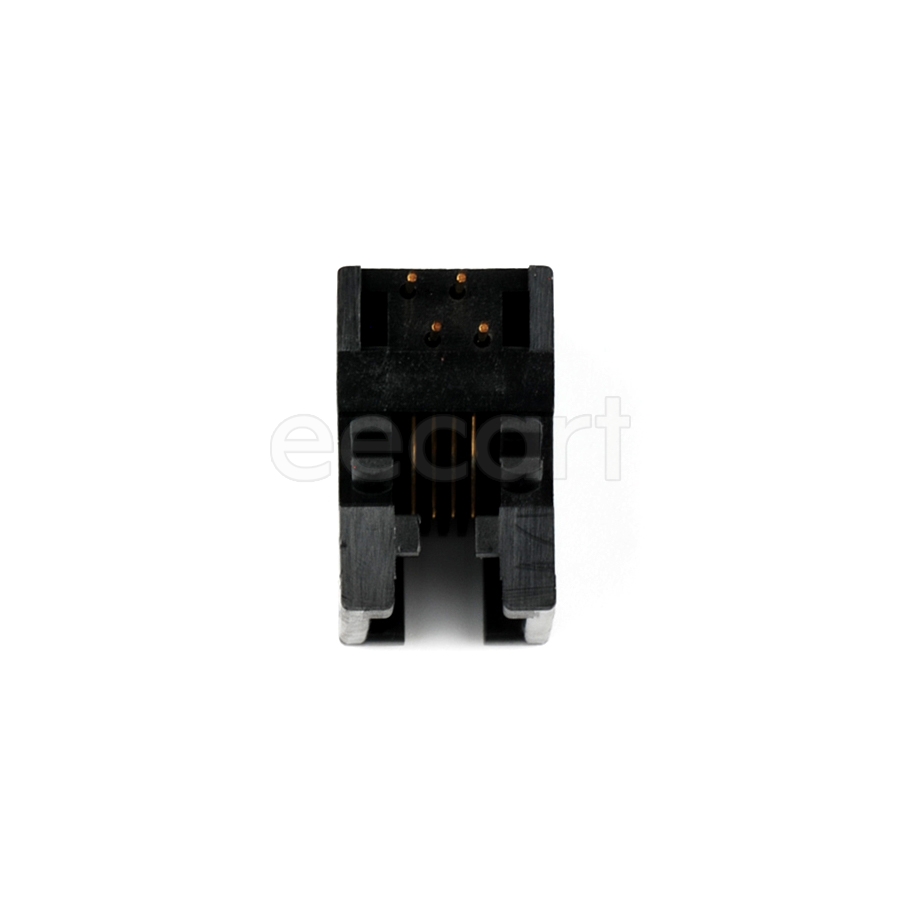

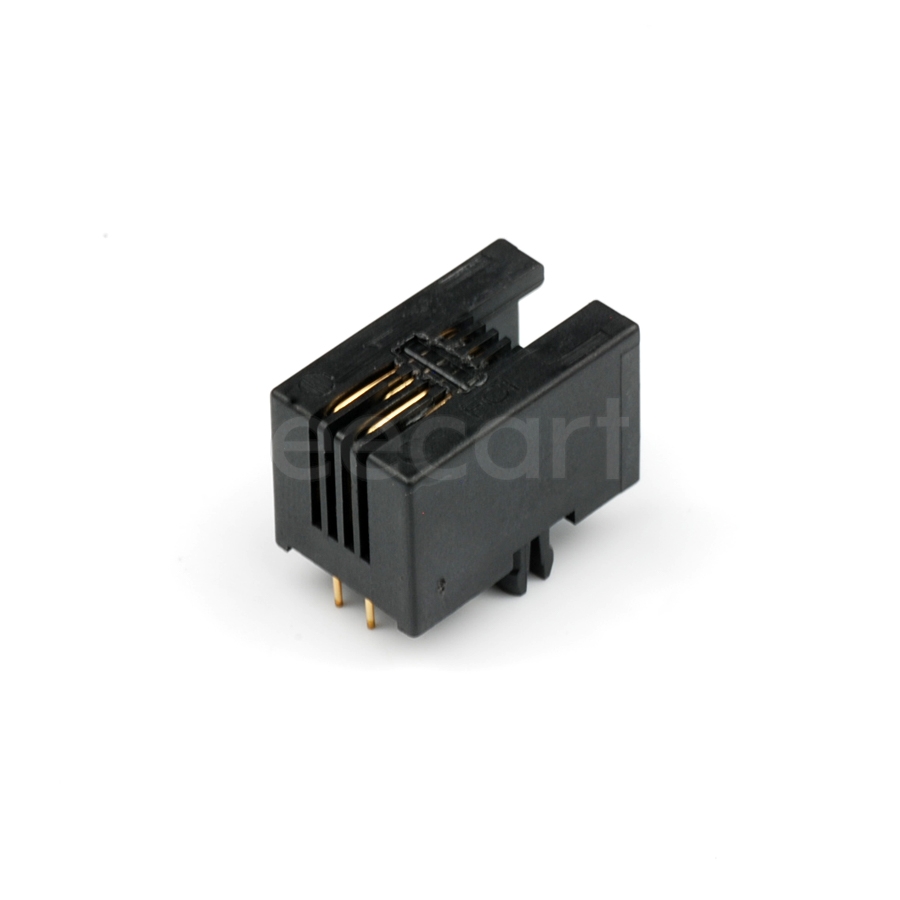

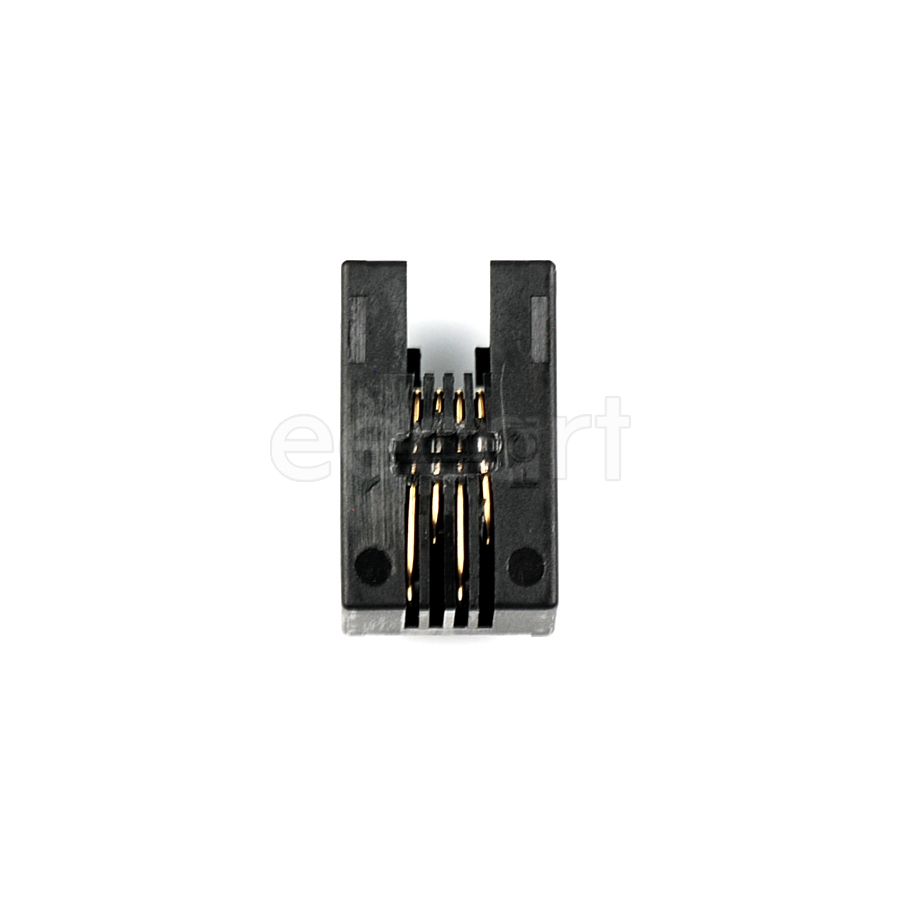

87180-044LF
Manufacturer:
Amphenol
Mfr.Part #:
87180-044LF
Datasheet:
Description:
Modular / Ethernet Connectors Through Hole Female Current Rating:1 A Voltage Rating:1000 V (1 kV)
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 1 kV |
| Length | 11.2 mm |
| Width | 11.2 mm |
| Termination | Through Hole |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Material | Resin, Thermoplastic |
| Packaging | Tube |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 18 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Max Voltage Rating (DC) | 1000 V (1 kV) |
| Working Voltage | 1 kV |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 4 |
| Direction(Counting Sequence) | Down |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 1 kV |
| Housing Color | Black |
| Number of Positions Loaded | 4 |
| Mounting Angle | Right Angle |
| Performance Category | Cat 3 |
| Accessory Type | |
| Number of Positions/Contacts | 4P4C |
Stock: 2258
Distributors
pcbx
pcbxUnit Price$1.01993
Ext.Price$1.01993
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.01993 | $1.01993 |
| 10 | $0.86348 | $8.63480 |
| 25 | $0.73866 | $18.46650 |
| 50 | $0.61983 | $30.99150 |
| 100 | $0.60358 | $60.35800 |
| 300 | $0.54849 | $164.54700 |
| 500 | $0.49843 | $249.21500 |
