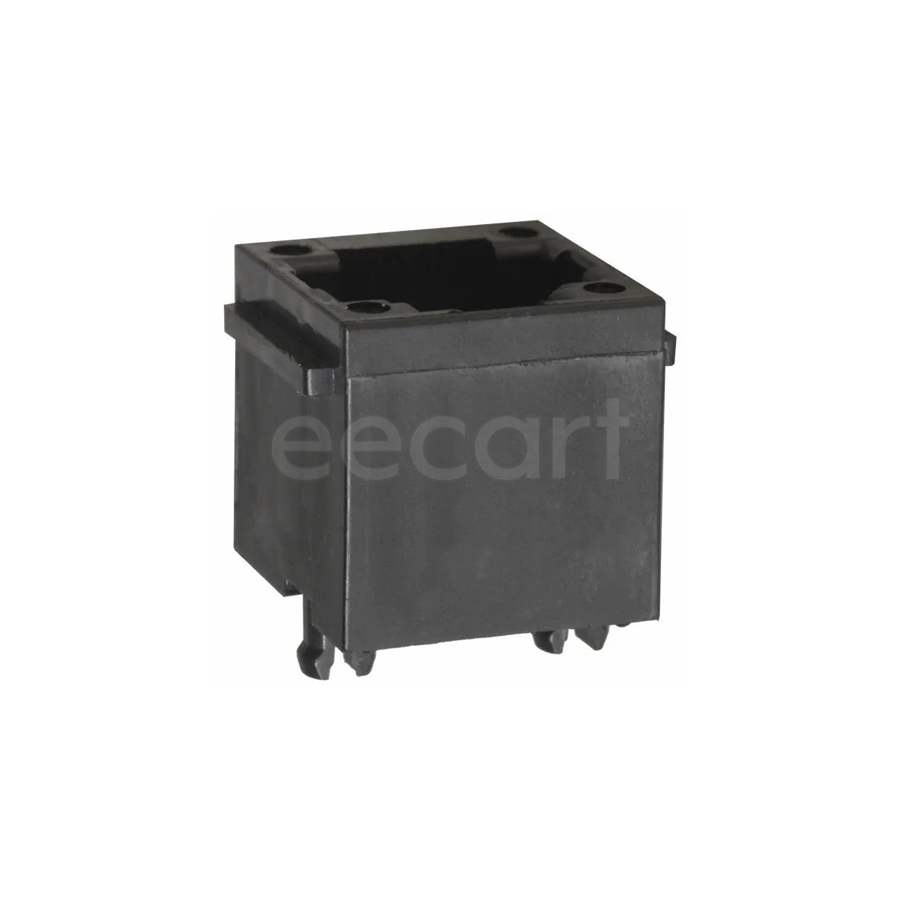

90598-001LF
Manufacturer:
Amphenol
Mfr.Part #:
90598-001LF
Datasheet:
Description:
Modular / Ethernet Connectors Through Hole RJ45 Female Current Rating:1 A Voltage Rating:1000 V (1 kV)
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 1 kV |
| Length | 17.78 mm |
| Width | 17.78 mm |
| Termination | Through Hole |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -65 °C |
| Height | 15.77 mm |
| Material | Resin, Thermoplastic |
| Packaging | Tube |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 16.38 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Max Voltage Rating (DC) | 1000 V (1 kV) |
| Working Voltage | 1 kV |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 8 |
| Direction(Counting Sequence) | User Selectable |
| Connector Type | RJ45 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Number of Ports | 1 |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 1 kV |
| Housing Color | Black |
| Number of Positions Loaded | 8 |
| Schedule B | 8536695050 |
| Mounting Angle | Vertical |
| Performance Category | Cat 3 |
| Accessory Type | |
| USOC Codes | RJ45 |
| Number of Positions/Contacts | 8P8C |
Stock: 4280
Distributors
pcbx
pcbxUnit Price$1.32628
Ext.Price$1.32628
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.32628 | $1.32628 |
| 10 | $1.12555 | $11.25550 |
| 25 | $1.06372 | $26.59300 |
| 50 | $1.00528 | $50.26400 |
| 100 | $0.95005 | $95.00500 |
| 300 | $0.89786 | $269.35800 |
| 500 | $0.84853 | $424.26500 |
| 1000 | $0.80192 | $801.92000 |
