GSB311231HR
Manufacturer:
Amphenol
Mfr.Part #:
GSB311231HR
Datasheet:
Description:

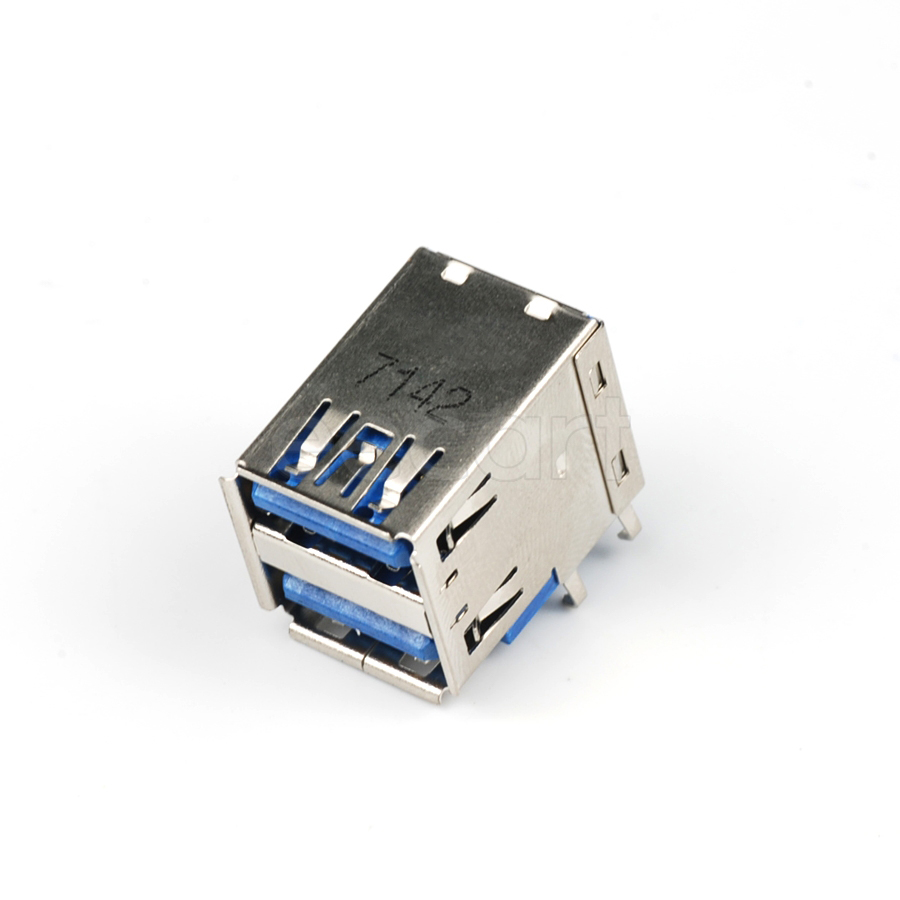

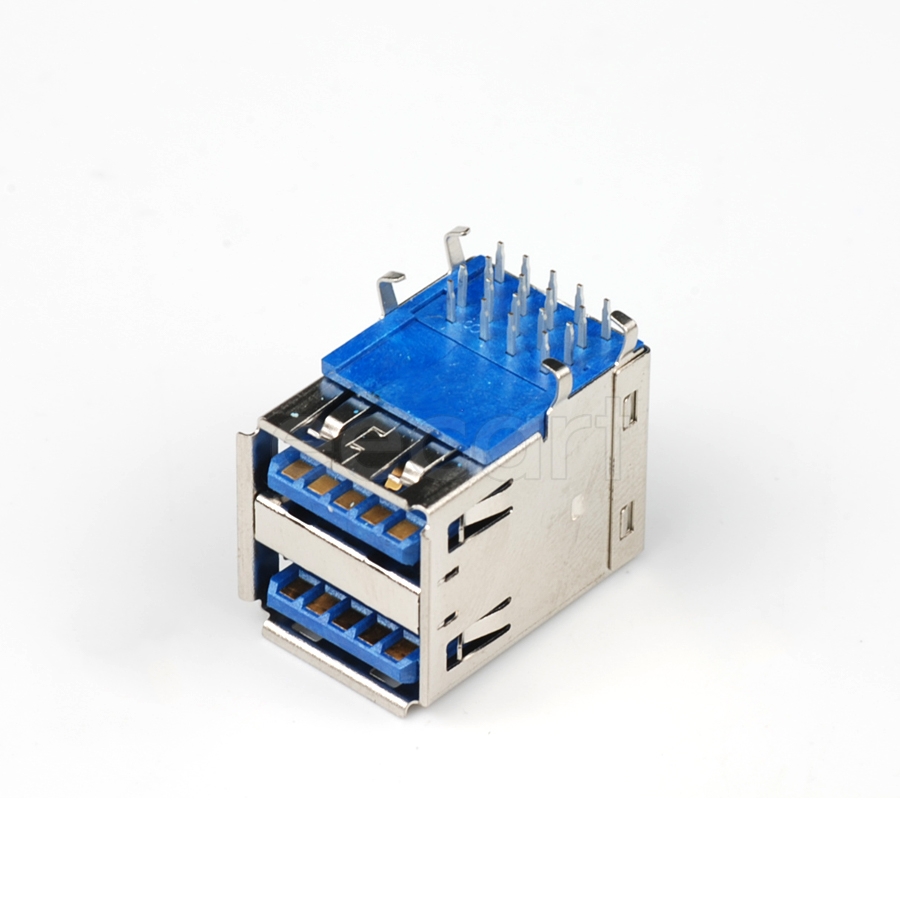

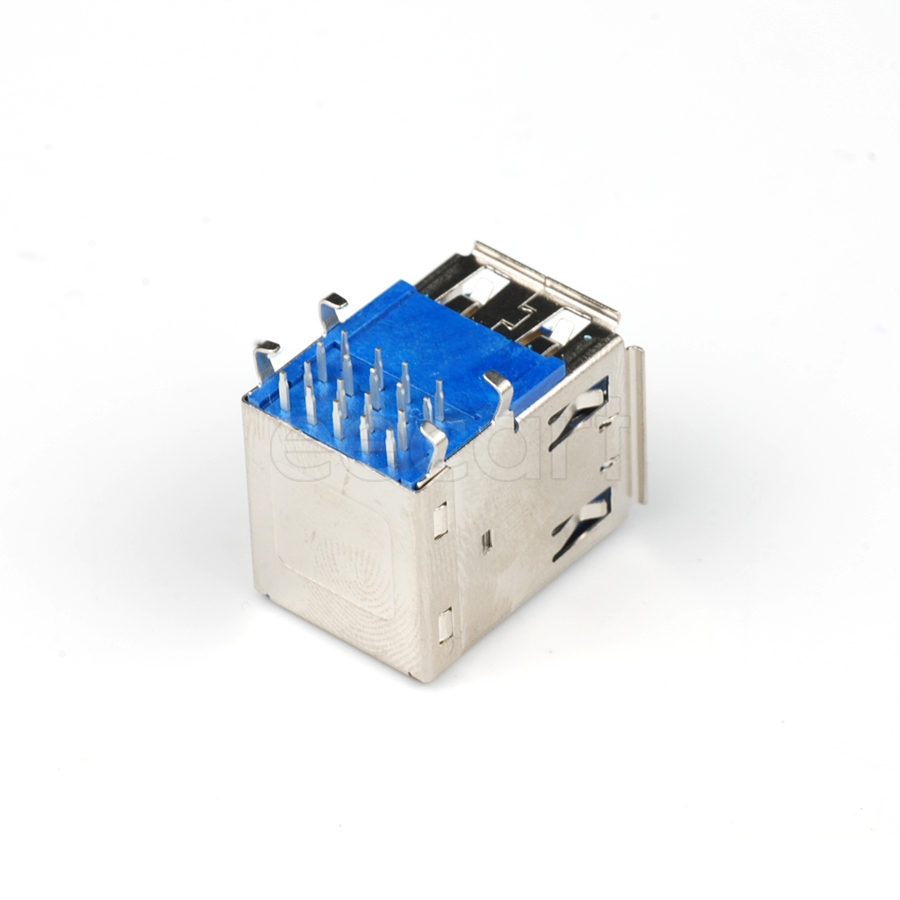

USB Connectors Through Hole USB-A (USB TYPE-A), Stacked Female USB 3.0
| Parameter | Value |
|---|---|
| Length | 13.5 mm |
| Termination | Solder |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 30 V |
| Voltage Rating | 30 V |
| Depth | 19.5 mm |
| Radiation Hardening | No |
| Insulation Resistance | 100 MΩ |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold, Nickel |
| Type | USB-A (USB TYPE-A), Stacked |
| Number of Terminals | 18 |
| Current Rating | 1.8 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Blue |
| Gender | Female |
| Number of Contacts | 18 |
| USB Standard | USB 3.0 |
| Connector Type | DIP, USB |
| Housing Material | Polymer |
| Number of Ports | 2 |
| Plating | Nickel |
| Mounting Angle | Right Angle |
| Packaging | Tray |
| RoHS | Compliant |
Stock: 2119
Distributors
pcbx
pcbxUnit Price$1.87144
Ext.Price$1.87144
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.87144 | $1.87144 |
| 10 | $1.58931 | $15.89310 |
| 25 | $1.48929 | $37.23225 |
| 50 | $1.42090 | $71.04500 |
| 100 | $1.35164 | $135.16400 |
| 300 | $1.27781 | $383.34300 |
| 500 | $1.20801 | $604.00500 |
| 1000 | $1.15159 | $1151.59000 |
