L717TSEH09POL2RM8
Manufacturer:
Amphenol
Mfr.Part #:
L717TSEH09POL2RM8
Datasheet:
Description:

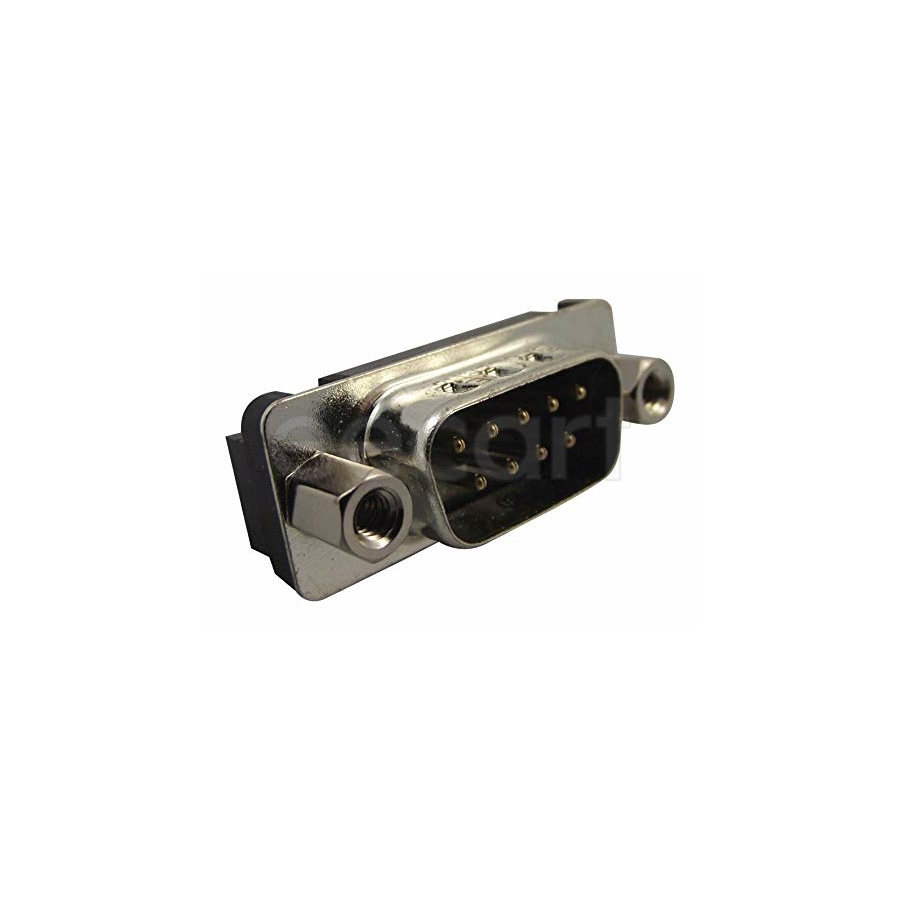

D-Sub Connectors Through Hole Plug Number of Positions:9 Solder Male
| Parameter | Value |
|---|---|
| Length | 30.84 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating | 600 V |
| Depth | 12.55 mm |
| REACH SVHC | Unknown |
| Dielectric Material | Thermoplastic, Glass Filled |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 2.74 mm |
| Type | Plug |
| Number of Terminals | 9 |
| Current Rating | 5 A |
| Orientation | Straight |
| Gender | Male |
| Number of Contacts | 9 |
| Body Material | Steel |
| Connector Type | D-Sub, Plug, Signal |
| Contact Type | Signal |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Max Supply Voltage (AC) | 600 V |
| Shell Material | Steel |
| Packaging | Tray |
| RoHS | Compliant |
Stock: 206
Distributors
pcbx
pcbxUnit Price$0.96009
Ext.Price$0.96009
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.96009 | $0.96009 |
| 10 | $0.81903 | $8.19030 |
| 25 | $0.76944 | $19.23600 |
| 50 | $0.70788 | $35.39400 |
| 100 | $0.67112 | $67.11200 |
| 300 | $0.62564 | $187.69200 |
| 500 | $0.58324 | $291.62000 |
| 1000 | $0.54373 | $543.73000 |
