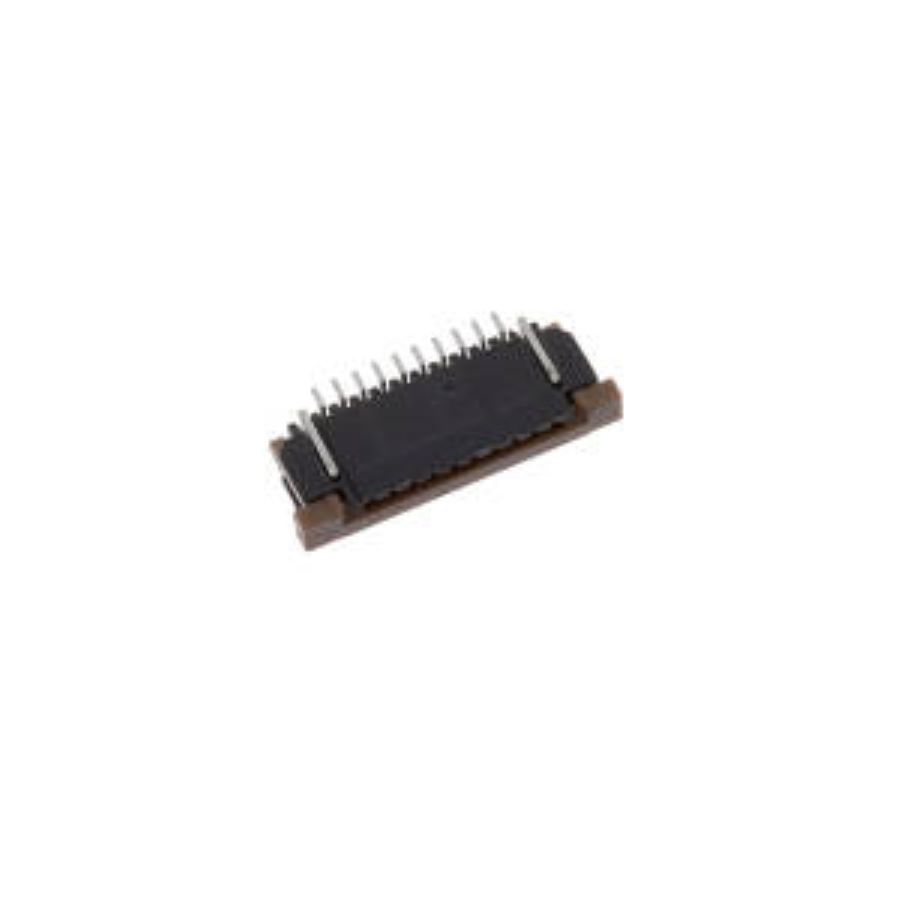

SFW10R-3STE1LF
Manufacturer:
Amphenol
Mfr.Part #:
SFW10R-3STE1LF
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:10 1 A 100 V
| Parameter | Value |
|---|---|
| Length | 15.8 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 100 V |
| Packaging | Reel |
| Voltage Rating | 100 V |
| Depth | 6.5 mm |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1 mm |
| Current Rating | 1 A |
| Max Voltage Rating (DC) | 100 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Housing Material | Polyphenylene |
| Contact Location | Bottom |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 100 V |
| Actuator Material | Glass, Polyphenylene |
| Housing Color | Black |
| Schedule B | 8536694040 |
| Mounting Angle | Right Angle |
Stock: 415
Distributors
pcbx
pcbxUnit Price$0.31290
Ext.Price$0.31290
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31290 | $0.31290 |
| 10 | $0.26760 | $2.67600 |
| 25 | $0.23425 | $5.85625 |
| 50 | $0.22906 | $11.45300 |
| 100 | $0.22399 | $22.39900 |
| 300 | $0.20806 | $62.41800 |
| 500 | $0.19327 | $96.63500 |
| 1000 | $0.17953 | $179.53000 |
| 3000 | $0.17117 | $513.51000 |
| 5000 | $0.16320 | $816.00000 |
| 10000 | $0.15560 | $1556.00000 |
