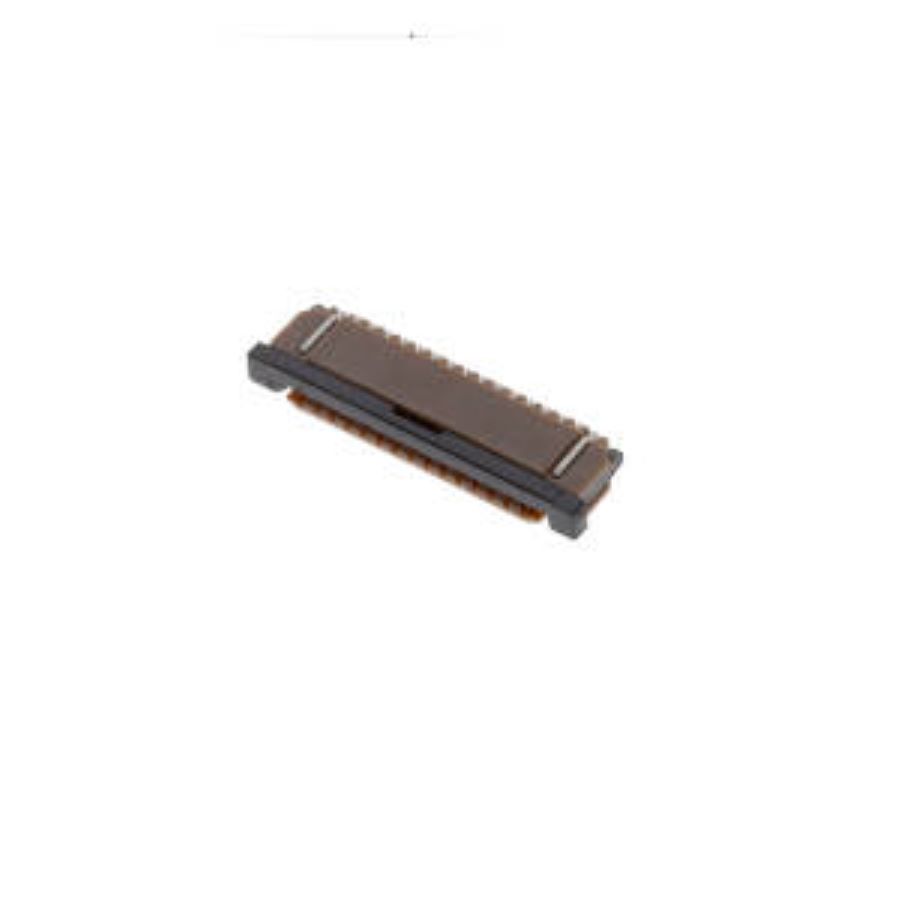

SFW15R-1STAE1LF
Manufacturer:
Amphenol
Mfr.Part #:
SFW15R-1STAE1LF
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:15 1 A 100 V
| Parameter | Value |
|---|---|
| Length | 20.8 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 100 V |
| Packaging | Reel |
| Voltage Rating | 100 V |
| Depth | 5.5 mm |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Number of Contacts | 15 |
| Number of Positions | 15 |
| Number of Rows | 1 |
| Housing Material | Polyphenylene |
| Contact Location | Bottom |
| Actuator Material | Glass, Polyphenylene |
| Housing Color | Brown |
| Mounting Angle | Right Angle |
Stock: 1649
Distributors
pcbx
pcbxUnit Price$0.47534
Ext.Price$0.47534
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.47534 | $0.47534 |
| 10 | $0.40267 | $4.02670 |
| 25 | $0.35821 | $8.95525 |
| 50 | $0.35000 | $17.50000 |
| 100 | $0.34197 | $34.19700 |
| 300 | $0.32262 | $96.78600 |
| 500 | $0.30436 | $152.18000 |
| 1000 | $0.25990 | $259.90000 |
| 3000 | $0.21800 | $654.00000 |
