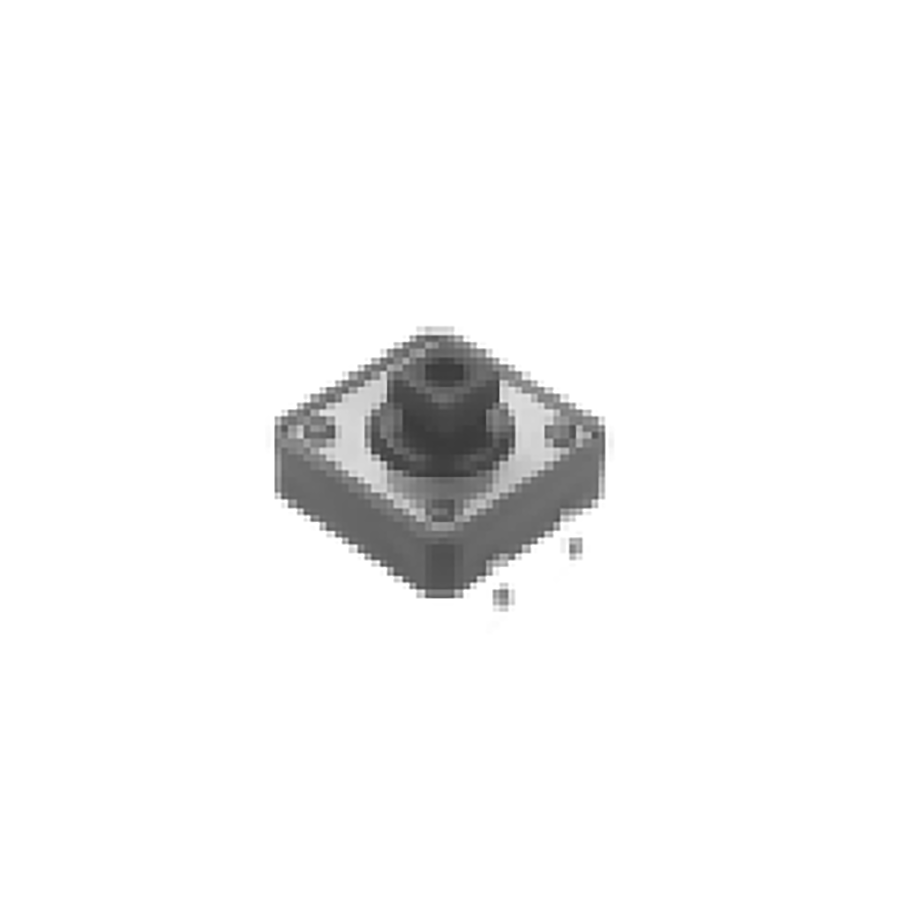

MJTP1212C
Manufacturer:
Apem
Mfr.Part #:
MJTP1212C
Datasheet:
Description:
Tactile Switches Through Hole SPST-NO Off-Mom 1.6 N
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Gold, Silver |
| Contact Material(Contact Finish) | Bronze |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Color | Black |
| Actuator Length | 3.3 mm |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 1.6 N |
| Switch Travel | 300 µm |
| Actuator Material | Acetal, Polyoxymethylene |
| Mechanical Life | 100 kcycles |
| Actuator Type | Plunger for Cap |
Stock: 2980
Distributors
pcbx
pcbxUnit Price$0.31889
Ext.Price$0.31889
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31889 | $0.31889 |
| 10 | $0.27870 | $2.78700 |
| 25 | $0.23681 | $5.92025 |
| 50 | $0.22855 | $11.42750 |
| 100 | $0.22057 | $22.05700 |
| 300 | $0.21273 | $63.81900 |
| 500 | $0.20518 | $102.59000 |
| 1000 | $0.19663 | $196.63000 |
| 3000 | $0.19318 | $579.54000 |
| 5000 | $0.18980 | $949.00000 |
