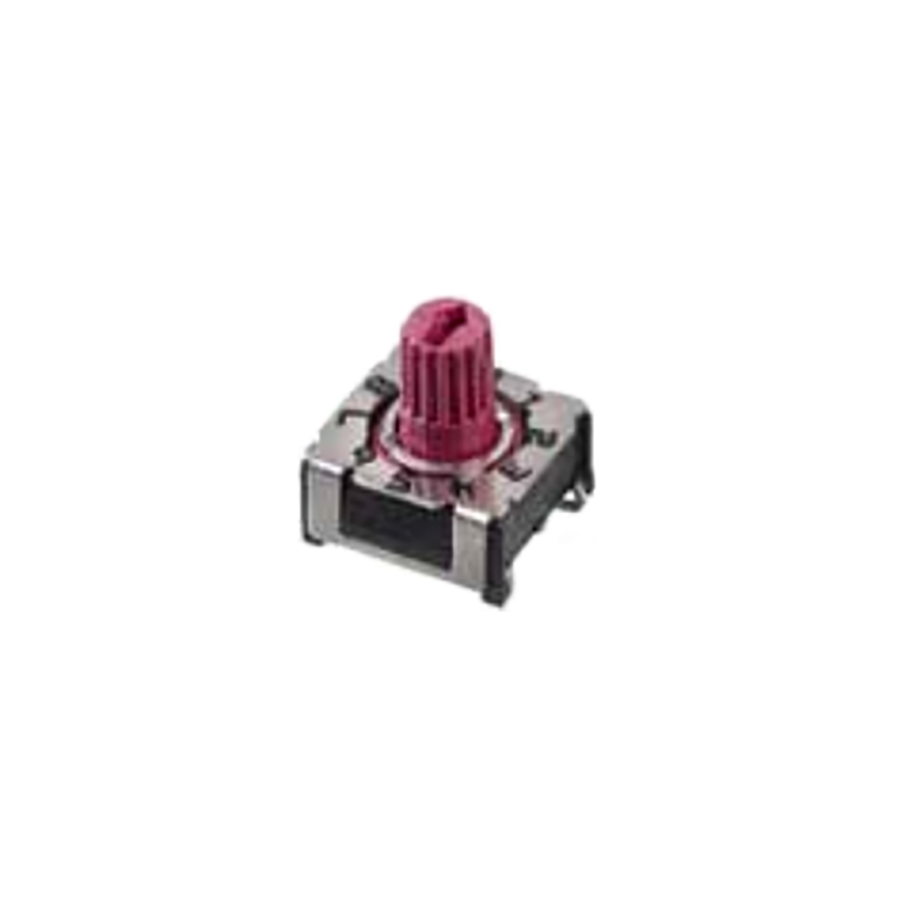

P36S101
Manufacturer:
Apem
Mfr.Part #:
P36S101
Datasheet:
Description:
Rotary Switches SMD/SMT BCD Number of Positions:10 Current Rating:100 mA Rotary for Tool
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 7.4 mm |
| Width | 9.5 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -50 °C |
| Circuit Type | BCD |
| Packaging | Reel |
| Depth | 9.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Stainless Steel |
| Terminal Pitch | 2.54 mm |
| Current Rating | 100 mA |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 24 V |
| Orientation | Straight |
| Actuator Length | 0 m |
| Throw Configuration | SP10T |
| Number of Positions | 10 |
| Housing Material | Thermoplastic |
| Contact Resistance | 250 mΩ |
| Illumination Type | Non-Illuminated |
| Actuator Material | Thermoplastic |
| Mechanical Life | 10 kcycles |
| Contact Current Rating | 100 mA |
| switching current | 400 mA |
| Actuator Type | Rotary for Tool |
| Termination Style | Gull Wing |
| Switching Voltage | 24 V |
| Washable | Yes |
| Life (Cycles) | 10 kCycles |
Stock: 12663
Distributors
pcbx
pcbxUnit Price$4.63024
Ext.Price$4.63024
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.63024 | $4.63024 |
| 10 | $4.10003 | $41.00030 |
| 25 | $3.87321 | $96.83025 |
| 50 | $3.65893 | $182.94650 |
| 100 | $3.49024 | $349.02400 |
| 300 | $3.31136 | $993.40800 |
| 500 | $3.14165 | $1570.82500 |
| 1000 | $3.12728 | $3127.28000 |
