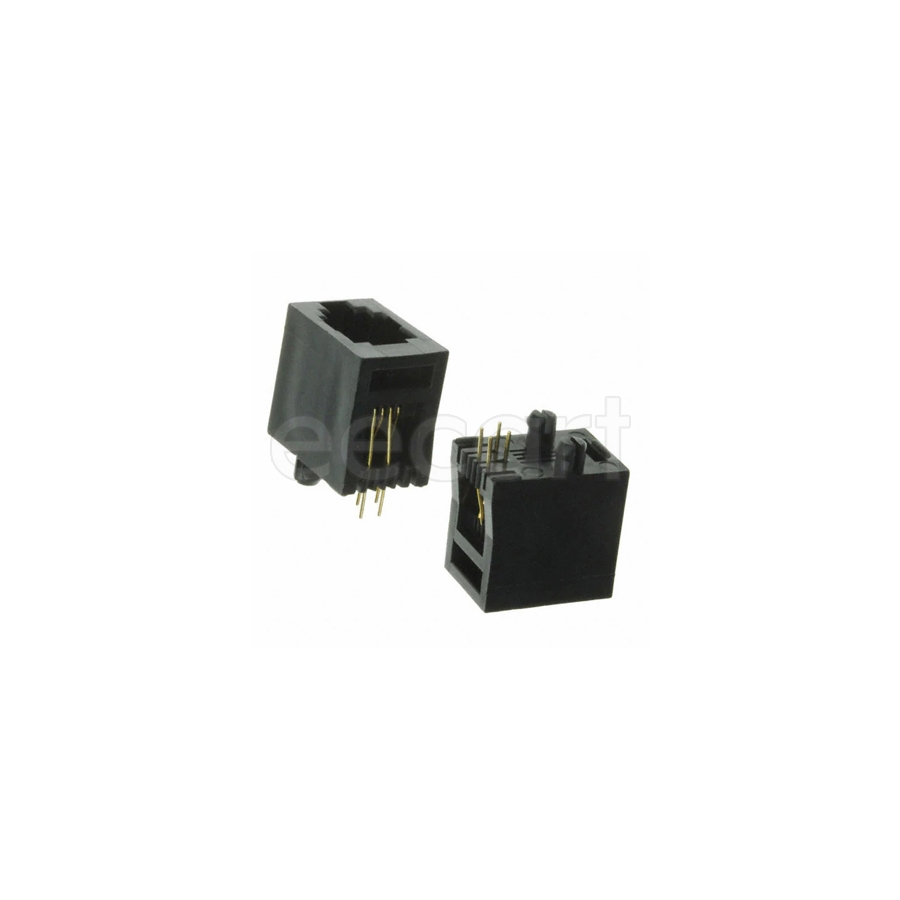

A-2014-3-4-N-T-R
Manufacturer:
Assmann WSW Components
Mfr.Part #:
A-2014-3-4-N-T-R
Datasheet:
Description:
Modular / Ethernet Connectors Through Hole RJ9, RJ10, RJ22
| Parameter | Value |
|---|---|
| Length | 11.43 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tray |
| Depth | 16.5 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 1.5 A |
| Orientation | Vertical |
| Color | Black |
| Shielding | Unshielded |
| Direction(Counting Sequence) | User Selectable |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing | |
| Insulation Material | |
| Housing Material | Glass |
| Number of Ports | 1 |
| Fastening Type | |
| Contact Style | |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 120 V |
| Housing Color | Black |
| Contact Mating Length | |
| Number of Positions Loaded | 4 |
| Contact Shape | |
| Mounting Angle | Vertical |
| Performance Category | |
| Accessory Type | |
| USOC Codes | RJ9, RJ10, RJ22 |
| Number of Positions/Contacts | 4P4C |
Stock: 33649
Distributors
pcbx
pcbxUnit Price$0.48799
Ext.Price$0.48799
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.48799 | $0.48799 |
| 10 | $0.41483 | $4.14830 |
| 25 | $0.38867 | $9.71675 |
| 50 | $0.37016 | $18.50800 |
| 100 | $0.34521 | $34.52100 |
| 300 | $0.32194 | $96.58200 |
| 500 | $0.30024 | $150.12000 |
| 1000 | $0.27999 | $279.99000 |
