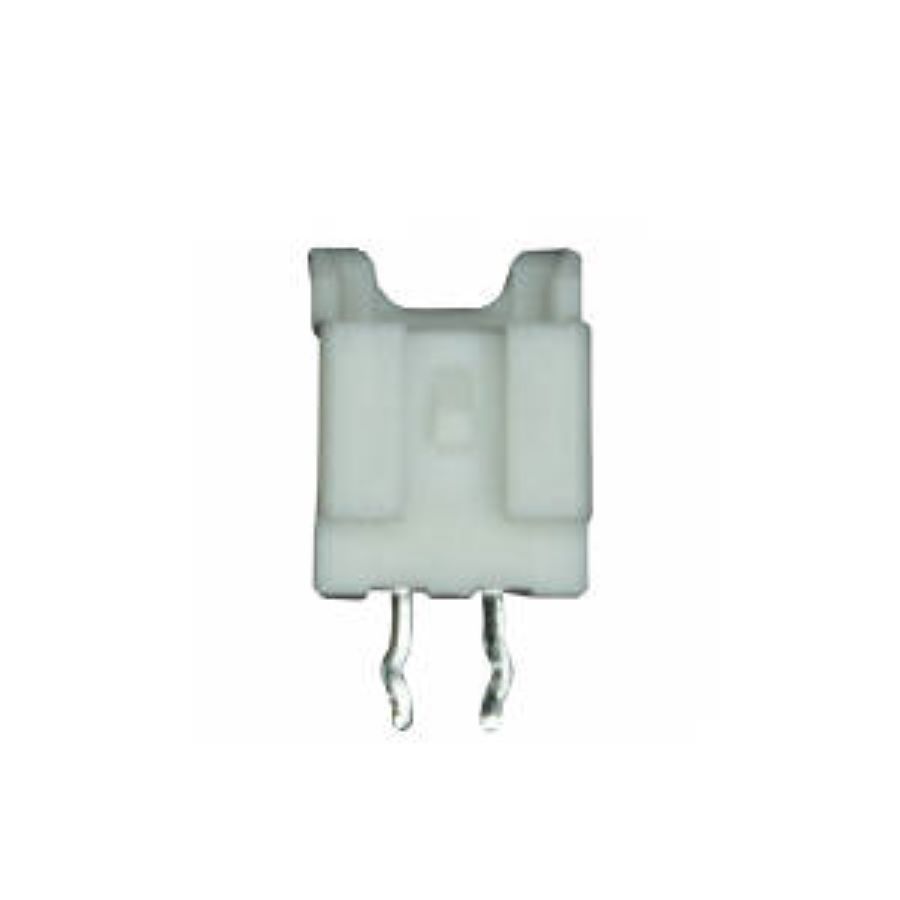

B02B-PASK(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
B02B-PASK(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:2 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 2 mm |
| Gender | Male |
| Number of Contacts | 2 |
| Mounting Style | Through Hole, PCB |
| lead free status | Lead Free |
| operating temperature | 85.0 °C |
| rohs status | Compliant |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| size width | 5.30 mm |
| size length | 6.00 mm |
| size height | 7.70 mm |
| Housing Color | White |
| pin pitch | 2.00 mm |
| Mating Post Length | 3.2 mm |
| Termination Post Length | 3 mm |
Stock: 28295
Distributors
pcbx
pcbxUnit Price$0.13661
Ext.Price$0.13661
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13661 | $0.13661 |
| 10 | $0.12291 | $1.22910 |
| 50 | $0.11059 | $5.52950 |
| 100 | $0.09872 | $9.87200 |
| 500 | $0.08813 | $44.06500 |
| 1000 | $0.07867 | $78.67000 |
| 3000 | $0.07288 | $218.64000 |
| 5000 | $0.06752 | $337.60000 |
