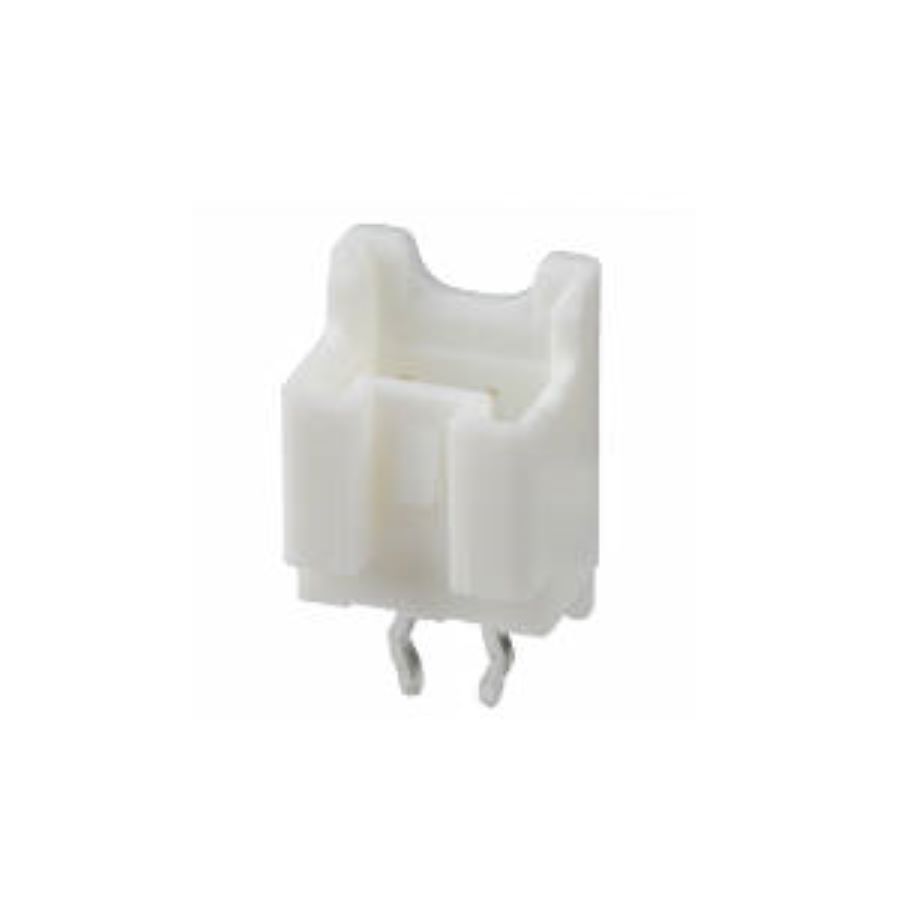

B02B-PASK-1(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
B02B-PASK-1(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:2 mm
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 2 mm |
| Gender | Male |
| Number of Contacts | 2 |
| Mounting Style | Through Hole, PCB |
| lead free status | Lead Free |
| operating temperature | 85.0 °C |
| rohs status | Compliant |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| size width | 5.30 mm |
| size length | 6.00 mm |
| size height | 7.70 mm |
| Housing Color | White |
| pin pitch | 2.00 mm |
| Mating Post Length | 3.2 mm |
| Termination Post Length | 3 mm |
Stock: 17341
Distributors
pcbx
pcbxUnit Price$0.09888
Ext.Price$0.09888
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09888 | $0.09888 |
| 10 | $0.09014 | $0.90140 |
| 50 | $0.08218 | $4.10900 |
| 100 | $0.07726 | $7.72600 |
| 500 | $0.07264 | $36.32000 |
| 1000 | $0.06829 | $68.29000 |
| 3000 | $0.06473 | $194.19000 |
| 5000 | $0.06135 | $306.75000 |
