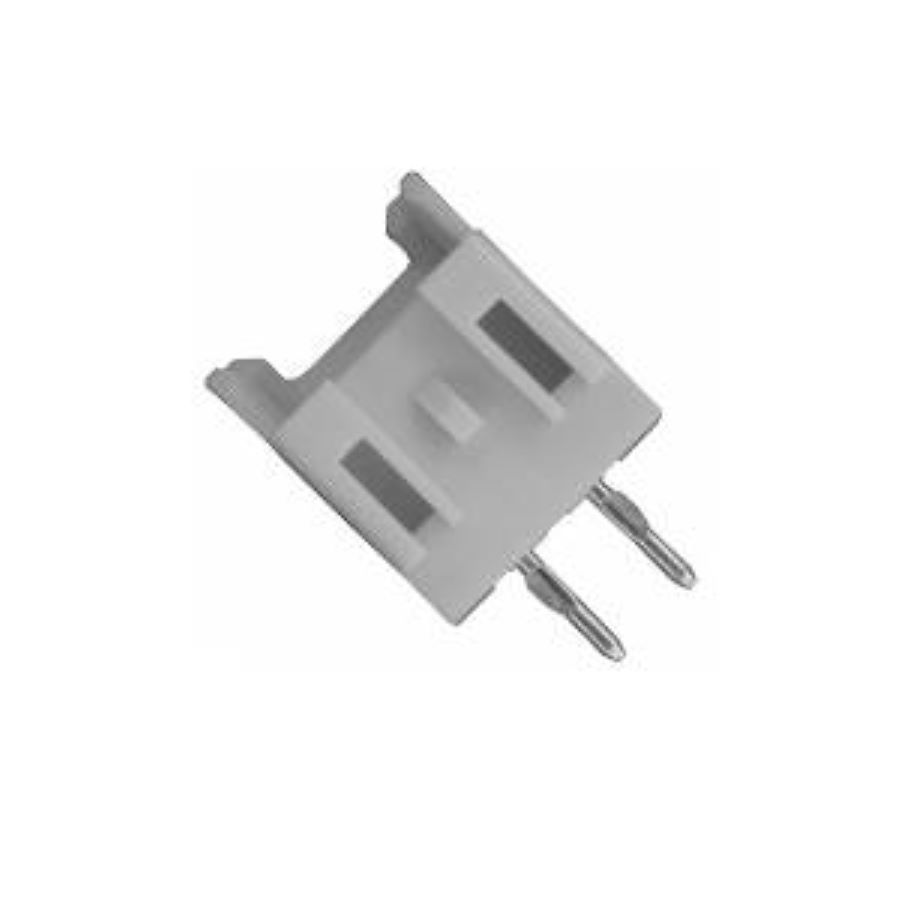

B02B-XASK-1(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
B02B-XASK-1(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Tin |
| Lead Length | 3.4 mm |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 2.5 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Color | Ivory |
| Gender | Male |
| Number of Contacts | 2 |
| Mounting Style | PCB |
| lead free status | Lead Free |
| operating temperature | -25.0 °C |
| pin count | 2 |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| size height | 8.80 mm |
| voltage rating ac | 250 V |
| pin pitch | 2.50 mm |
| Termination Post Length | 3.4 mm |
Stock: 3283
Distributors
pcbx
pcbxUnit Price$0.08139
Ext.Price$0.08139
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08139 | $0.08139 |
| 10 | $0.07010 | $0.70100 |
| 50 | $0.06491 | $3.24550 |
| 100 | $0.06010 | $6.01000 |
| 500 | $0.05520 | $27.60000 |
| 1000 | $0.05070 | $50.70000 |
| 3000 | $0.04506 | $135.18000 |
| 5000 | $0.04380 | $219.00000 |
| 10000 | $0.04257 | $425.70000 |
