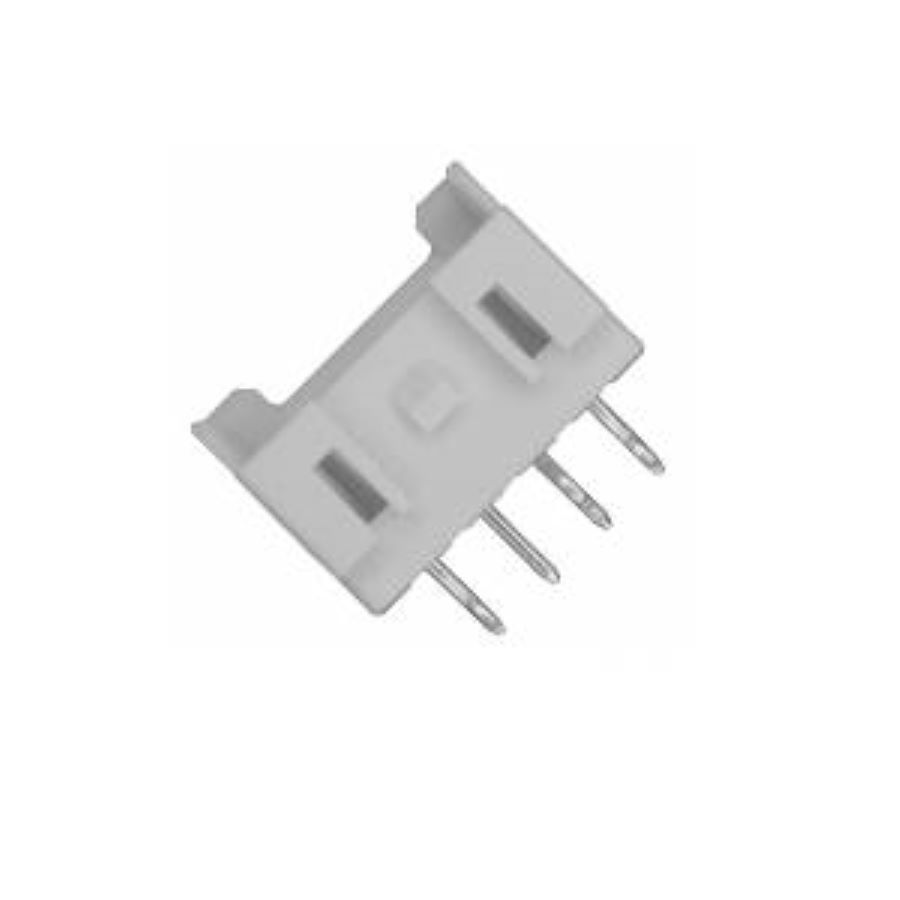

B04B-XASK-1(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
B04B-XASK-1(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:4 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 6.096 mm |
| Width | 12.5 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 4 |
| Height | 8.8 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| RoHS | Compliant |
| Lead Pitch | 2.5 mm |
| Insulation Resistance | 1 GΩ |
| Manufacturer Package Identifier | B04B-XASK-1(LF)(SN) |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 3.4 mm |
| Contact Material(Contact Finish) | Brass, Tin |
| Pitch | 2.5 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Beige, Natural |
| Gender | Male |
| Number of Contacts | 4 |
| Number of Poles | 4 |
| Connector Type | Male Pin |
| Wire/Cable Gauge | 20 AWG |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Fastening Type | Ramp |
| Contact Resistance | 10 mΩ |
| Termination Post Length | 3.4 mm |
Stock: 402
Distributors
pcbx
pcbxUnit Price$0.09494
Ext.Price$0.09494
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09494 | $0.09494 |
| 10 | $0.08475 | $0.84750 |
| 50 | $0.07565 | $3.78250 |
| 100 | $0.06860 | $6.86000 |
| 500 | $0.06221 | $31.10500 |
| 1000 | $0.05641 | $56.41000 |
| 3000 | $0.05116 | $153.48000 |
