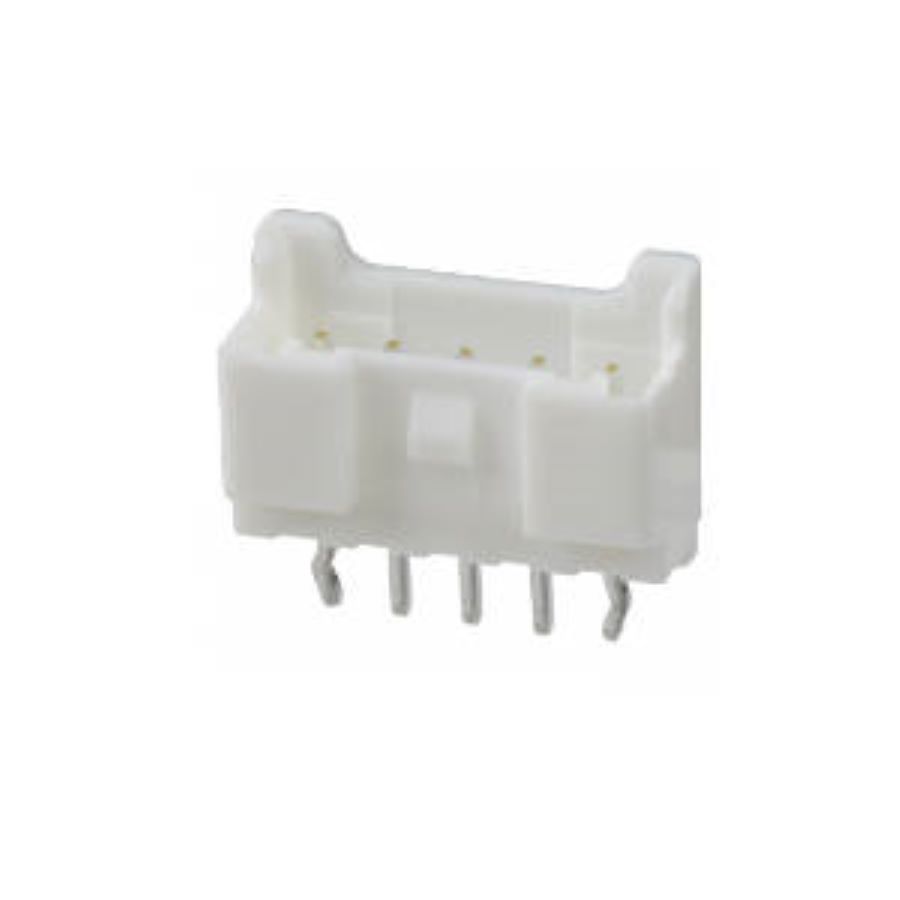

B05B-PASK-1(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
B05B-PASK-1(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:5 Pitch:2 mm
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 2 mm |
| Gender | Male |
| Number of Contacts | 5 |
| Mounting Style | Through Hole, PCB |
| lead free status | Lead Free |
| operating temperature | 85.0 °C |
| rohs status | Compliant |
| Connector Type | Header |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| size width | 5.30 mm |
| size length | 12.0 mm |
| size height | 7.70 mm |
| Housing Color | White |
| pin pitch | 2.00 mm |
| Mating Post Length | 3.2 mm |
| Termination Post Length | 3 mm |
Stock: 19
Distributors
pcbx
pcbxUnit Price$0.19882
Ext.Price$0.19882
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.19882 | $0.19882 |
| 10 | $0.18140 | $1.81400 |
| 50 | $0.16550 | $8.27500 |
| 100 | $0.14938 | $14.93800 |
| 500 | $0.13483 | $67.41500 |
| 1000 | $0.13086 | $130.86000 |
| 3000 | $0.12701 | $381.03000 |
| 5000 | $0.12328 | $616.40000 |
