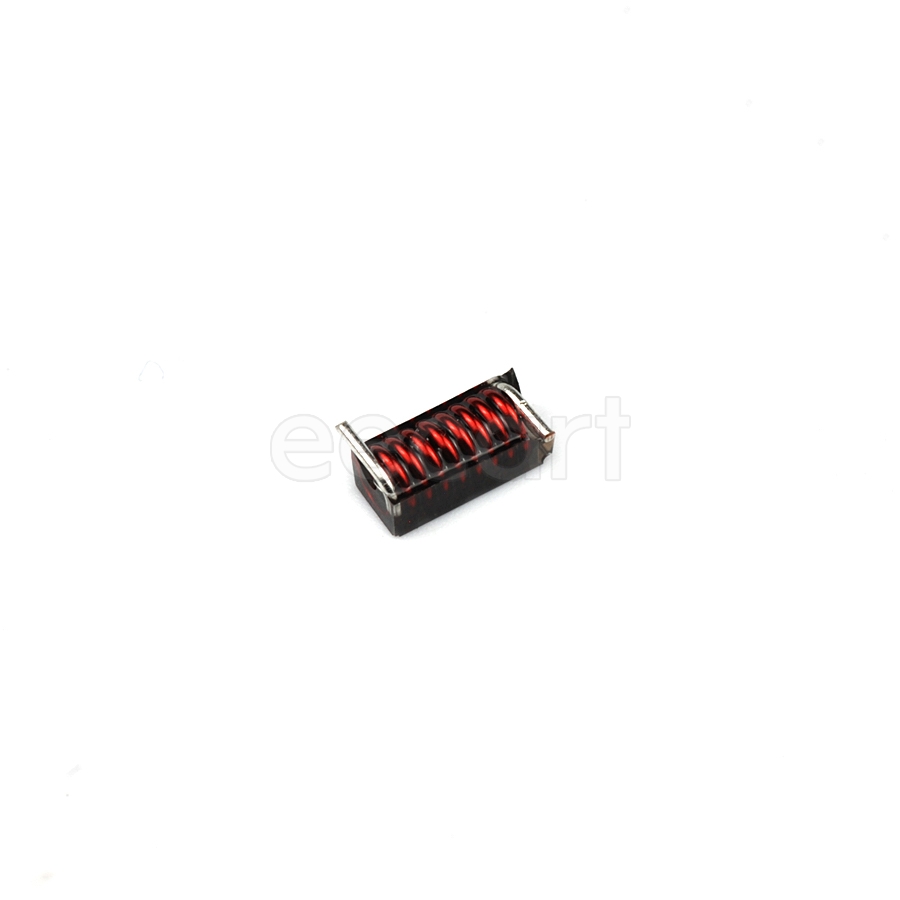

B08TGLB
Manufacturer:
Coilcraft
Mfr.Part #:
B08TGLB
Datasheet:
Description:
Fixed Inductors 6.86mmL×4.45mmW×3.15mmH SMD/SMT 28 nH 2 % 4 A 6 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 2 % |
| Height - Seated (Max) | 3.15 mm |
| Length | 6.86 mm |
| Width | 4.45 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 3.15 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 1.8 GHz |
| Type | Wirewound |
| Q Factor | 105 |
| DC Resistance (DCR) | 6 mΩ |
| Test Frequency | 150 MHz |
| Lifecycle Status | Production (Last Updated: 1 day ago) |
| Shielding | Unshielded |
| Inductance | 28 nH |
| Core Material | Air |
| RMS Current (Irms) | 4 A |
| inductance tolerance | 2 % |
| Max DC Current | 4 A |
| Current Rating | 4 A |
