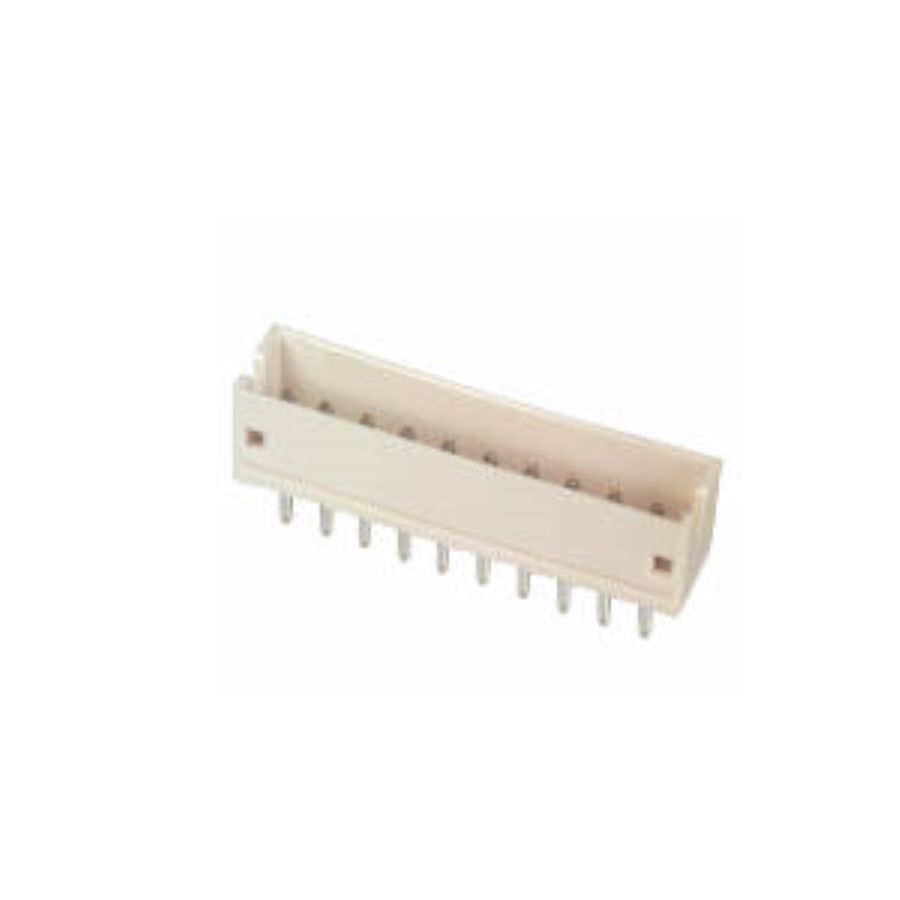

B10B-ZR(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
B10B-ZR(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:10 Pitch:1.5 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 1.5 mm |
| Gender | Male |
| Number of Contacts | 10 |
| Mounting Style | Through Hole |
| lead free status | Lead Free |
| operating temperature | 85.0 °C |
| rohs status | Compliant |
| Connector Type | Header |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| size width | 3.50 mm |
| size length | 16.5 mm |
| size height | 4.50 mm |
| Housing Color | Natural |
| pin pitch | 1.50 mm |
| Mating Post Length | 2.4 mm |
| Termination Post Length | 2.69 mm |
Stock: 3287
Distributors
pcbx
pcbxUnit Price$0.19407
Ext.Price$0.19407
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.19407 | $0.19407 |
| 10 | $0.16586 | $1.65860 |
| 50 | $0.15296 | $7.64800 |
| 100 | $0.14106 | $14.10600 |
| 500 | $0.12994 | $64.97000 |
| 1000 | $0.11969 | $119.69000 |
| 3000 | $0.10601 | $318.03000 |
| 5000 | $0.10385 | $519.25000 |
| 10000 | $0.10174 | $1017.40000 |
