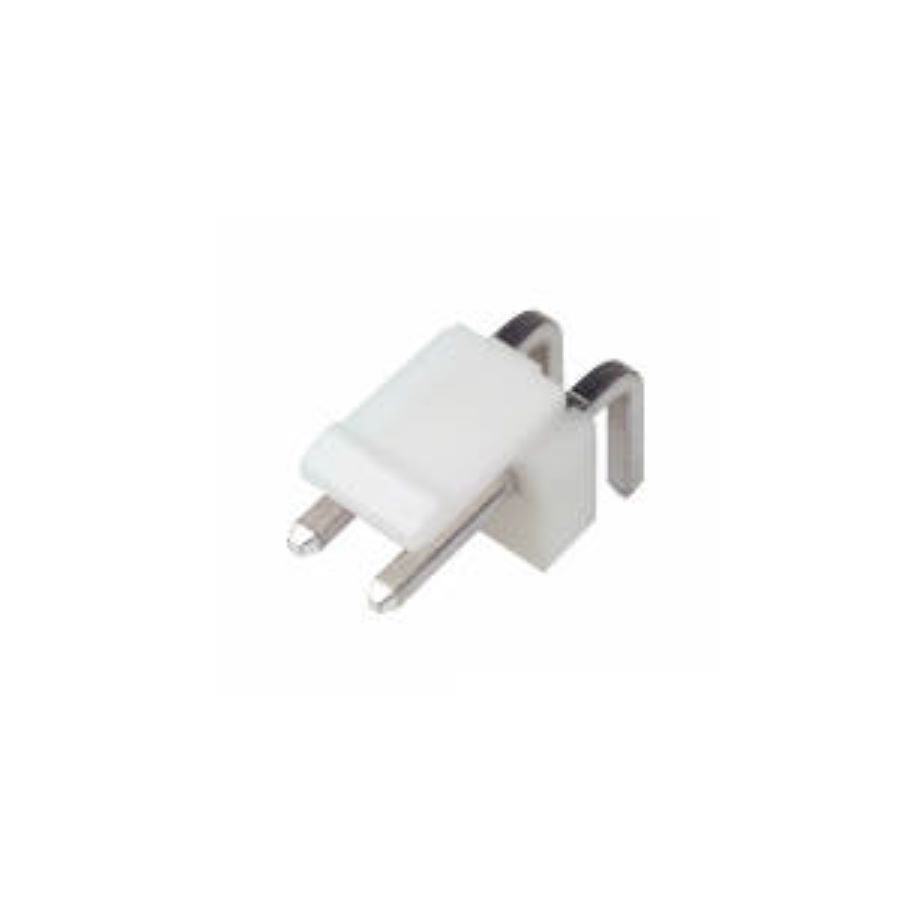

B2PS-VH(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
B2PS-VH(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.96 mm |
| Current Rating | 7 A |
| Color | White |
| Gender | Male |
| Number of Contacts | 2 |
| Mounting Style | Through Hole |
| lead free status | Lead Free |
| operating temperature | 85.0 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| size width | 9.40 mm |
| size length | 7.86 mm |
| size height | 8.50 mm |
| voltage rating ac | 250 V |
| Housing Color | Natural |
| pin pitch | 3.96 mm |
| Mating Post Length | 7.7 mm |
| Termination Post Length | 3.6 mm |
Stock: 7475
Distributors
pcbx
pcbxUnit Price$0.08928
Ext.Price$0.08928
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08928 | $0.08928 |
| 10 | $0.08007 | $0.80070 |
| 50 | $0.07181 | $3.59050 |
| 100 | $0.06654 | $6.65400 |
| 500 | $0.06166 | $30.83000 |
| 1000 | $0.05713 | $57.13000 |
| 3000 | $0.05328 | $159.84000 |
| 5000 | $0.04969 | $248.45000 |
