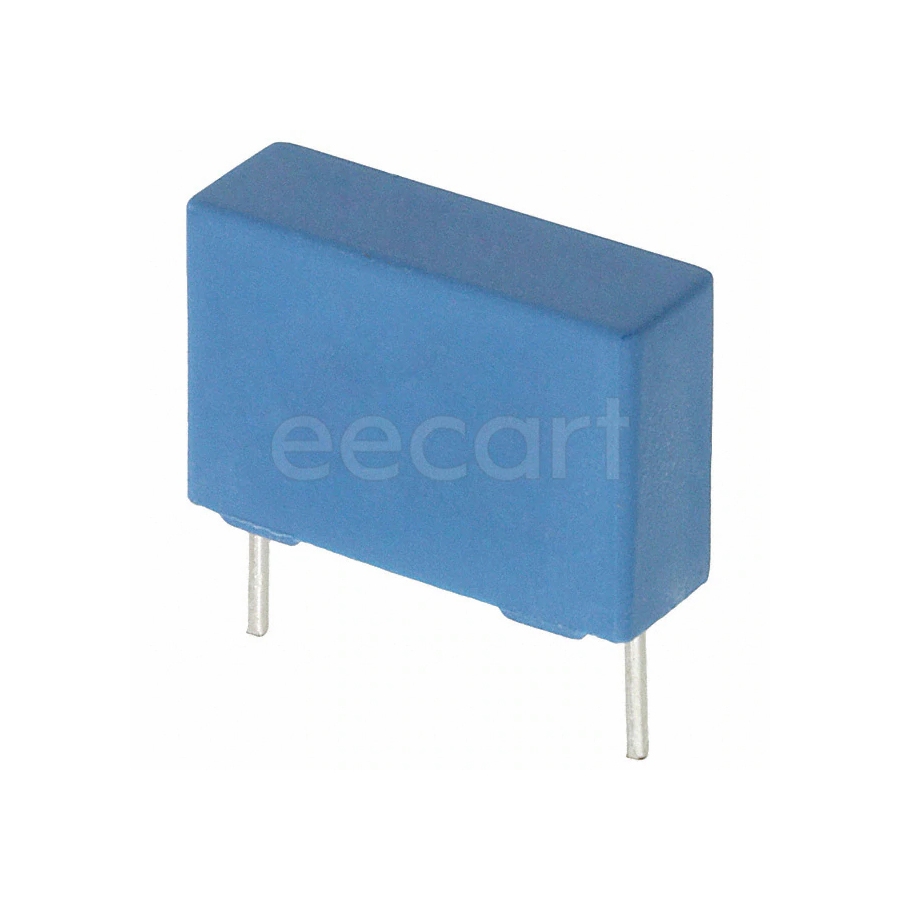

B32022A3223M189
Manufacturer:
EPCOS
Mfr.Part #:
B32022A3223M189
Datasheet:
Description:
Film Capacitors Through Hole 22 nF 20 % Polypropylene (PP) Voltage Rating (DC):1.5 kV Voltage Rating (AC):300 V
| Parameter | Value |
|---|---|
| Capacitance | 22 nF |
| Voltage Rating (DC) | 1.5 kV |
| Tolerance | 20 % |
| Height - Seated (Max) | 11.99 mm |
| Length | 18 mm |
| Width | 12 mm |
| Termination | Radial |
| Max Operating Temperature | 110 °C |
| Min Operating Temperature | -40 °C |
| Dielectric | Polypropylene (PP) |
| Voltage Rating (AC) | 300 V |
| Number of Pins | 2 |
| Height | 6 mm |
| Packaging | Reel |
| Depth | 6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 800 µm |
| Lead Pitch | 15 mm |
| Dielectric Material | Polypropylene |
| Contact Plating | Tin |
| Lead/Base Style | Straight |
| Lifecycle Status | Production (Last Updated: 3 months ago) |
| Schedule B | 8532250020 |
Stock: 2075
Distributors
pcbx
pcbxUnit Price$0.78824
Ext.Price$0.78824
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.78824 | $0.78824 |
| 10 | $0.40780 | $4.07800 |
| 25 | $0.39576 | $9.89400 |
| 50 | $0.38408 | $19.20400 |
| 100 | $0.37275 | $37.27500 |
| 300 | $0.33682 | $101.04600 |
| 500 | $0.30436 | $152.18000 |
| 1000 | $0.28360 | $283.60000 |
| 3000 | $0.26425 | $792.75000 |
| 5000 | $0.24622 | $1231.10000 |
