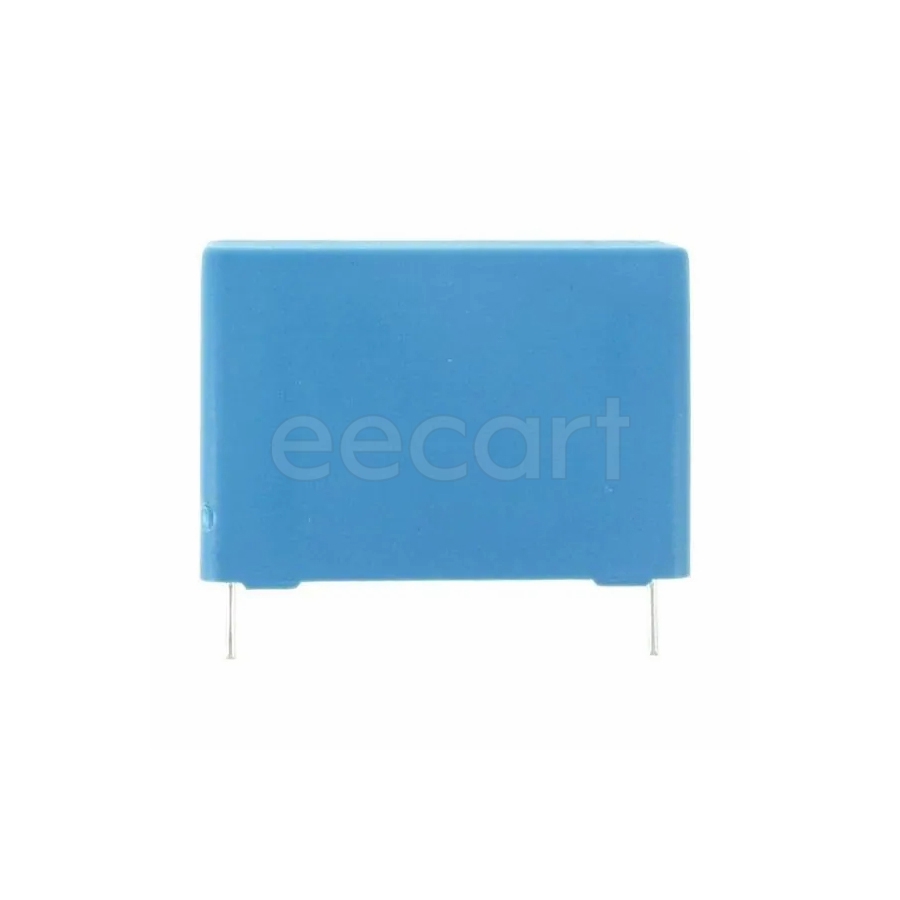

B32022B3473M
Manufacturer:
EPCOS
Mfr.Part #:
B32022B3473M
Datasheet:
Description:
Film Capacitors Through Hole 47 nF 20 % Polypropylene (PP) Voltage Rating (DC):1.5 kV Voltage Rating (AC):300 V
| Parameter | Value |
|---|---|
| Capacitance | 47 nF |
| Voltage Rating (DC) | 1.5 kV |
| Tolerance | 20 % |
| Height - Seated (Max) | 17.5 mm |
| Length | 18 mm |
| Width | 8.9916 mm |
| Termination | Radial |
| Max Operating Temperature | 110 °C |
| Min Operating Temperature | -40 °C |
| Dielectric | Polypropylene (PP) |
| Voltage Rating (AC) | 300 V |
| Number of Pins | 2 |
| Height | 9 mm |
| Packaging | Bulk |
| Depth | 9 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 800 µm |
| Lead Pitch | 15 mm |
| Dielectric Material | PP |
| Lead/Base Style | Straight |
| Schedule B | 8532250020 |
Stock: 499
Distributors
pcbx
pcbxUnit Price$0.90708
Ext.Price$0.90708
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.90708 | $0.90708 |
| 10 | $0.48047 | $4.80470 |
| 25 | $0.46759 | $11.68975 |
| 50 | $0.45506 | $22.75300 |
| 100 | $0.44286 | $44.28600 |
| 300 | $0.40954 | $122.86200 |
| 500 | $0.37873 | $189.36500 |
| 1000 | $0.35736 | $357.36000 |
| 3000 | $0.34118 | $1023.54000 |
| 5000 | $0.32573 | $1628.65000 |
| 10000 | $0.30863 | $3086.30000 |
