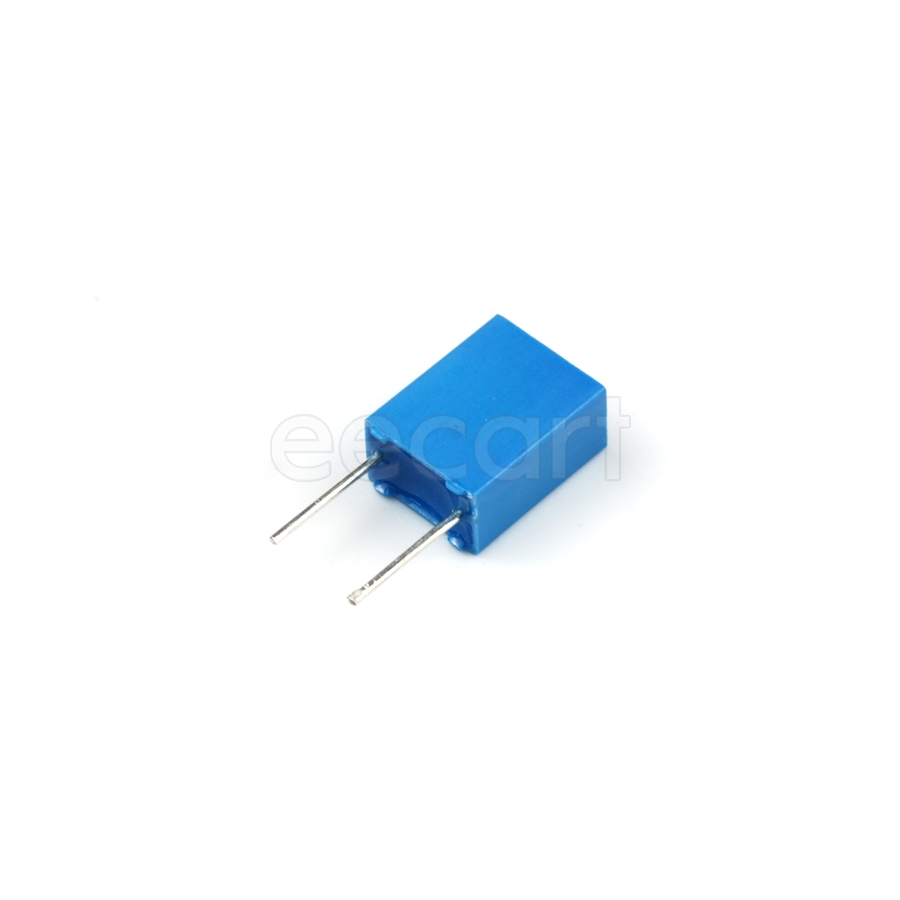

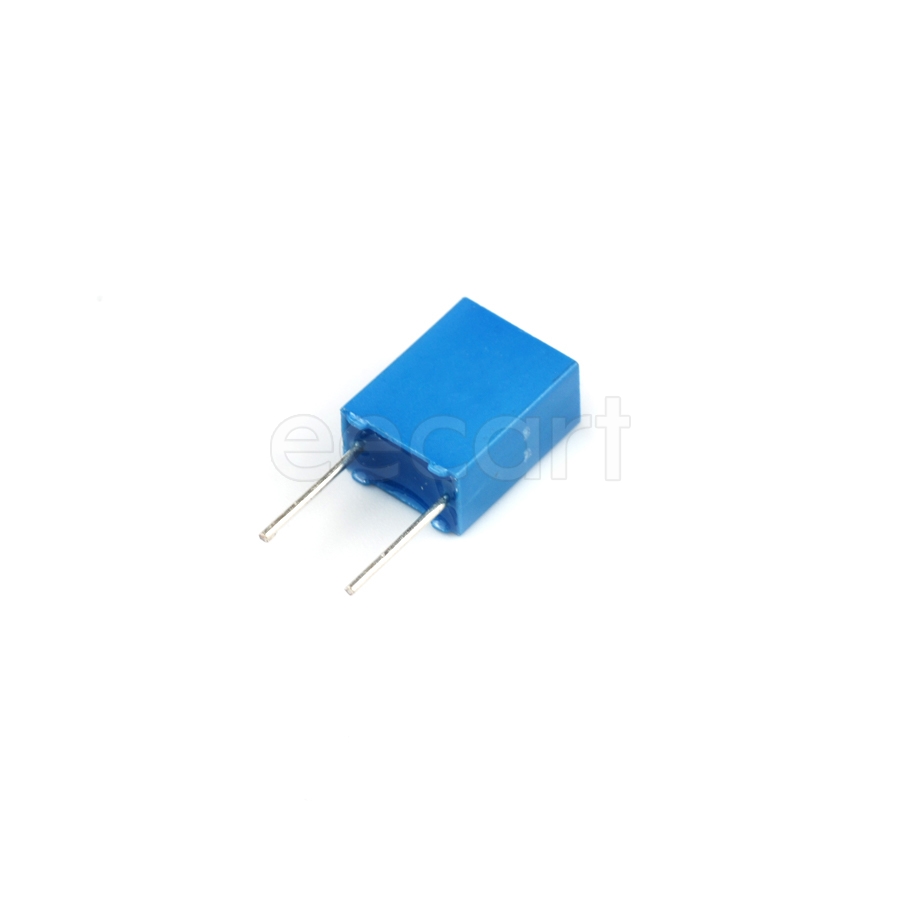

B32529C105K189
Manufacturer:
EPCOS
Mfr.Part #:
B32529C105K189
Datasheet:
Description:
Film Capacitors Through Hole 1 µF 10 % Polyethylene Terephthalate(PET) Voltage Rating (DC):63 V Voltage Rating (AC):40 V
| Parameter | Value |
|---|---|
| Capacitance | 1 µF |
| Voltage Rating (DC) | 63 V |
| Tolerance | 10 % |
| Life (Hours) | 200000 Hours |
| Height - Seated (Max) | 9.5 mm |
| Length | 7.3 mm |
| Width | 4.4958 mm |
| Termination | Radial |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | Polyethylene Terephthalate(PET) |
| Voltage Rating (AC) | 40 V |
| Number of Pins | 2 |
| Height | 9.5 mm |
| Voltage Rating | 63 V |
| Depth | 4.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 500 µm |
| Lead Pitch | 5 mm |
| REACH SVHC | Unknown |
| Dielectric Material | Polyester |
| Contact Plating | Tin |
| Features | General Purpose |
| Lead Length | 6 mm |
| Schedule B | 8532250010 |
| Packaging | Reel |
Stock: 13658
Distributors
pcbx
pcbxUnit Price$0.35650
Ext.Price$0.35650
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.35650 | $0.35650 |
| 10 | $0.16500 | $1.65000 |
| 50 | $0.15622 | $7.81100 |
| 100 | $0.14790 | $14.79000 |
| 500 | $0.12054 | $60.27000 |
| 1000 | $0.10599 | $105.99000 |
| 3000 | $0.09319 | $279.57000 |
