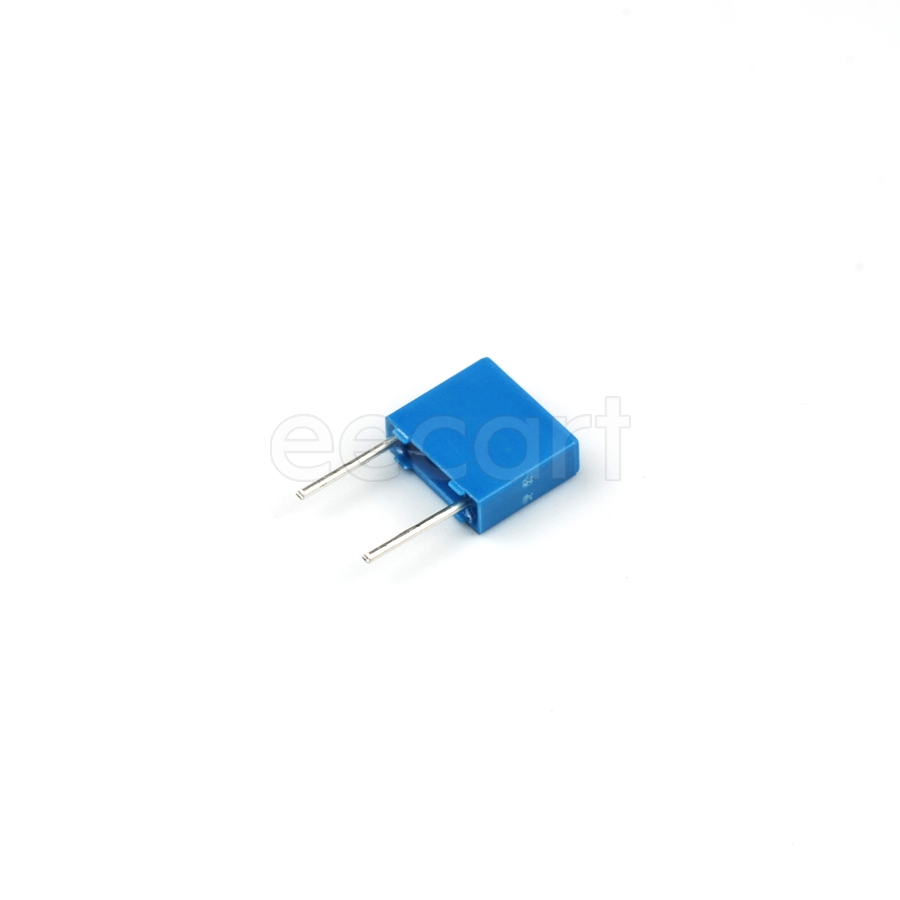

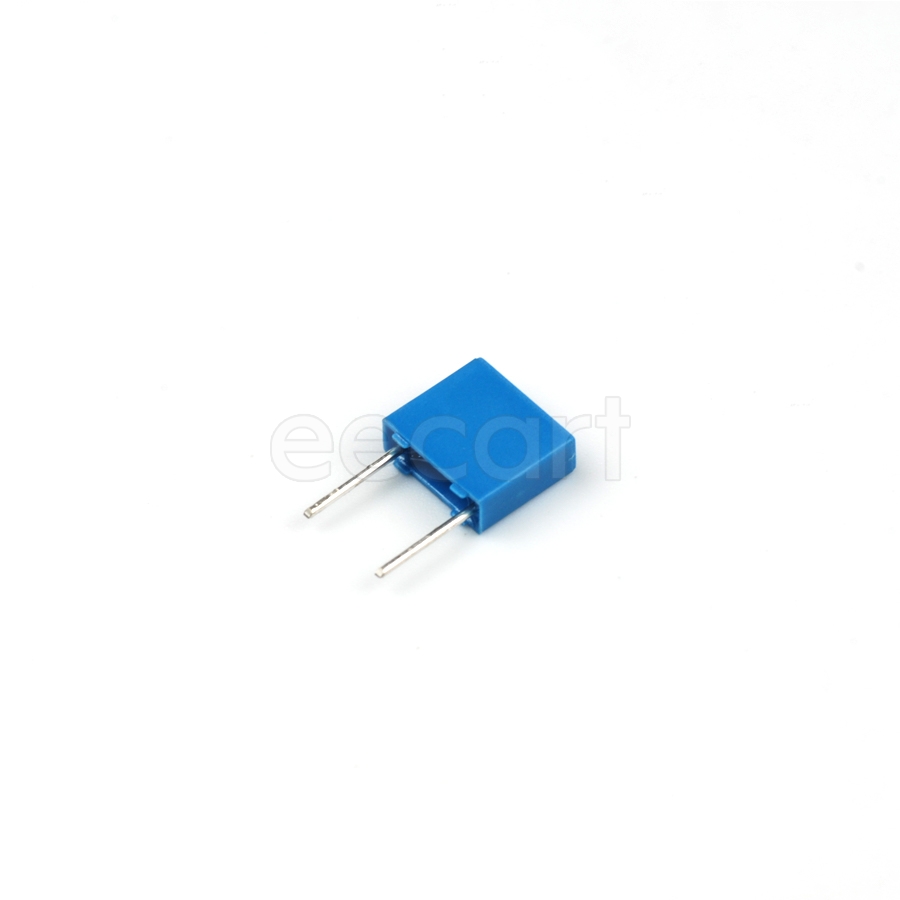

B32529C1104J
Manufacturer:
EPCOS
Mfr.Part #:
B32529C1104J
Datasheet:
Description:
Film Capacitors Through Hole 100 nF 5 % Polyethylene Terephthalate(PET) Voltage Rating (DC):100 V Voltage Rating (AC):63 V
| Parameter | Value |
|---|---|
| Capacitance | 100 nF |
| Voltage Rating (DC) | 100 V |
| Tolerance | 5 % |
| Life (Hours) | 200000 Hours |
| Height - Seated (Max) | 6.5 mm |
| Length | 7.2 mm |
| Width | 2.4892 mm |
| Termination | Radial |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | Polyethylene Terephthalate(PET) |
| Voltage Rating (AC) | 63 V |
| Height | 6.5 mm |
| Packaging | Bulk |
| Voltage Rating | 100 V |
| Depth | 2.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 500 µm |
| Lead Pitch | 5 mm |
| Insulation Resistance | 3.75 GΩ |
| Voltage | 100 V |
| REACH SVHC | Unknown |
| Dielectric Material | PET |
| Contact Plating | Tin |
| Lead Length | 6 mm |
| Schedule B | 8532250010 |
| Number of Pins | 2 |
Stock: 7407
Distributors
pcbx
pcbxUnit Price$0.18124
Ext.Price$0.18124
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18124 | $0.18124 |
| 10 | $0.07763 | $0.77630 |
| 50 | $0.07277 | $3.63850 |
| 100 | $0.06822 | $6.82200 |
| 500 | $0.05070 | $25.35000 |
| 1000 | $0.04724 | $47.24000 |
| 3000 | $0.04402 | $132.06000 |
| 5000 | $0.04102 | $205.10000 |
| 10000 | $0.03822 | $382.20000 |
