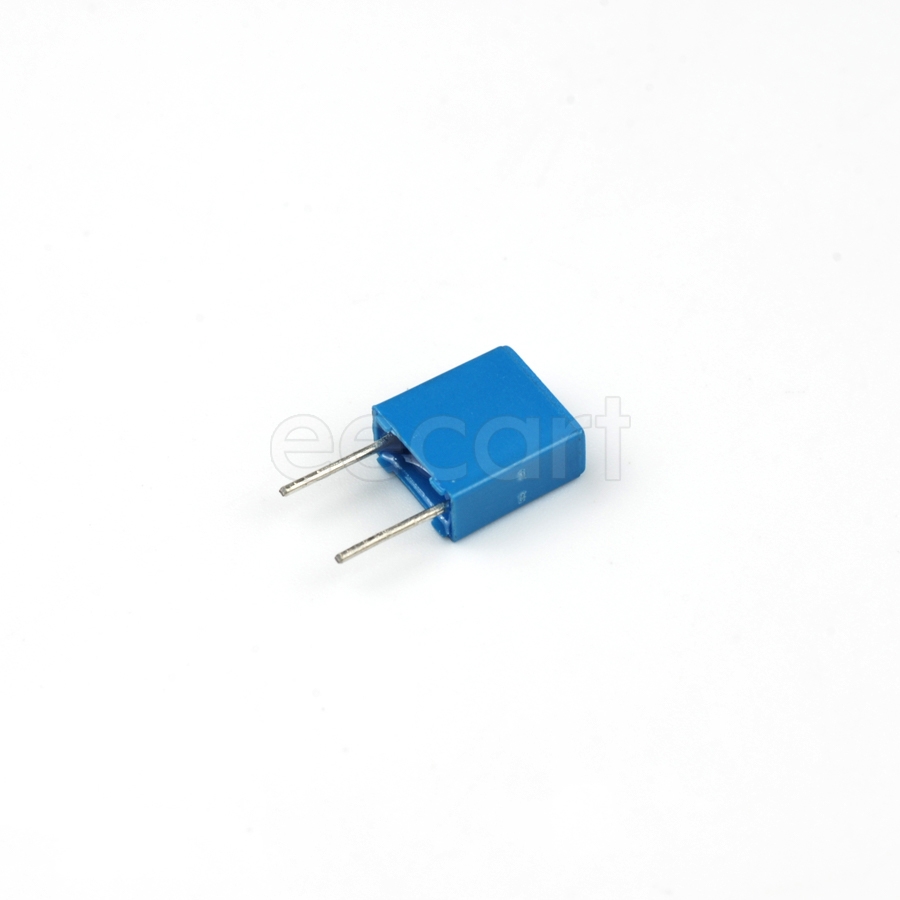

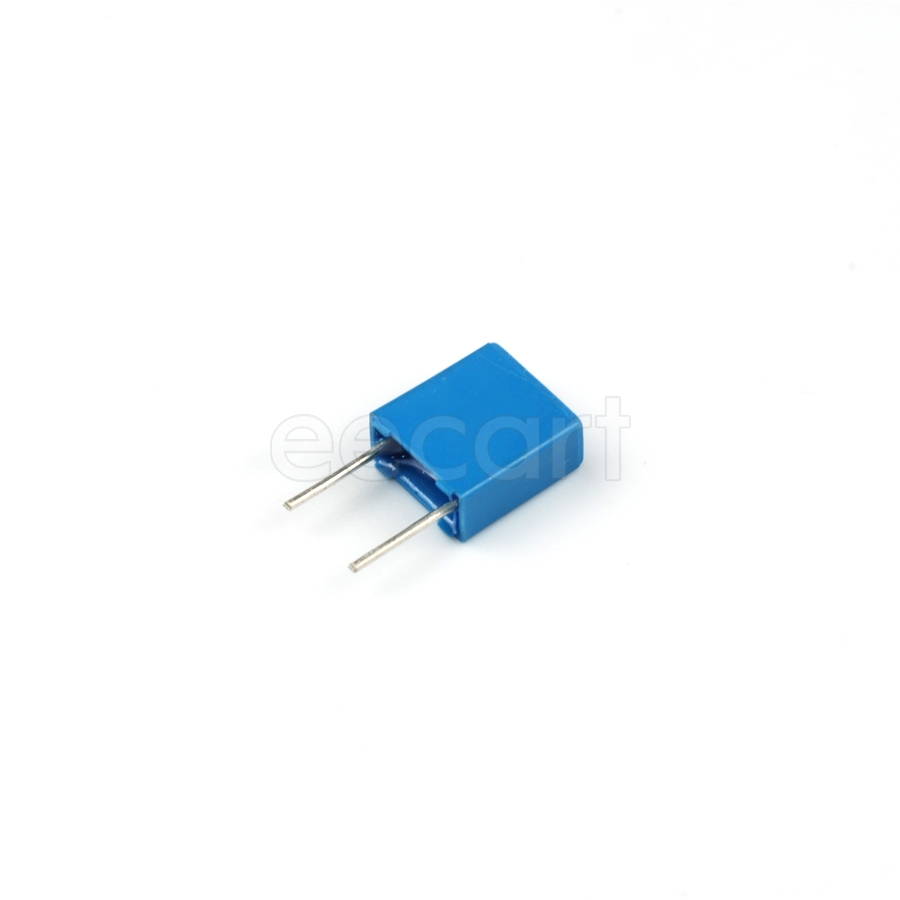

B32529C3473J
Manufacturer:
EPCOS
Mfr.Part #:
B32529C3473J
Datasheet:
Description:
Film Capacitors Through Hole 47 nF 5 % Polyethylene Terephthalate(PET) Voltage Rating (DC):250 V Voltage Rating (AC):160 V
| Parameter | Value |
|---|---|
| Capacitance | 47 nF |
| Voltage Rating (DC) | 250 V |
| Tolerance | 5 % |
| Height - Seated (Max) | 8 mm |
| Length | 7.2 mm |
| Width | 3.5 mm |
| Termination | Radial |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | Polyethylene Terephthalate(PET) |
| Voltage Rating (AC) | 160 V |
| Number of Pins | 2 |
| Height | 8 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 3.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 500 µm |
| Lead Pitch | 5 mm |
| Insulation Resistance | 3.75 GΩ |
| Voltage | 250 V |
| Dielectric Material | PET |
| Contact Plating | Tin |
| Lead Length | 6 mm |
| Schedule B | 8532250010 |
