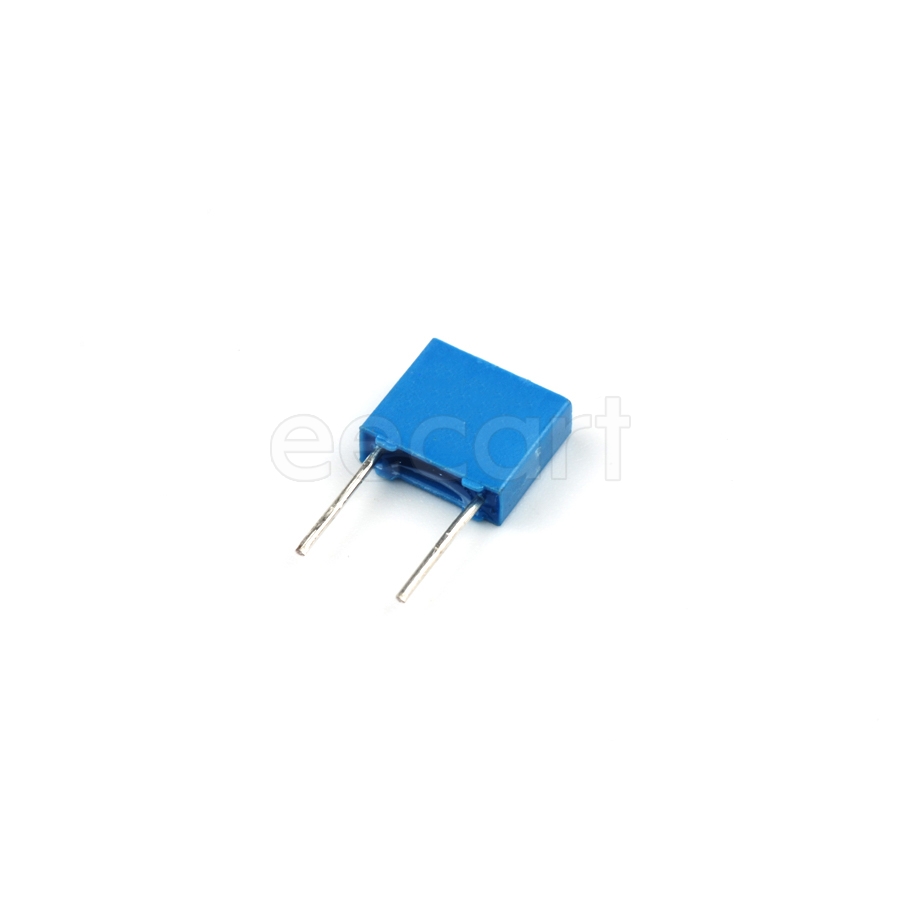

B32529C8102J
Manufacturer:
EPCOS
Mfr.Part #:
B32529C8102J
Datasheet:
Description:
Film Capacitors Through Hole 1 nF 5 % Polyethylene Terephthalate(PET) Voltage Rating (DC):630 V Voltage Rating (AC):400 V
| Parameter | Value |
|---|---|
| Capacitance | 1 nF |
| Voltage Rating (DC) | 630 V |
| Tolerance | 5 % |
| Height - Seated (Max) | 6.5 mm |
| Length | 7.2 mm |
| Width | 2.4892 mm |
| Termination | Radial |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | Polyethylene Terephthalate(PET) |
| Voltage Rating (AC) | 400 V |
| Number of Pins | 2 |
| Packaging | Bulk |
| Voltage Rating | 630 V |
| Depth | 2.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 500 µm |
| Lead Pitch | 5 mm |
| REACH SVHC | Unknown |
| Dielectric Material | PET |
| Lead Length | 6 mm |
Stock: 6558
Distributors
pcbx
pcbxUnit Price$0.24366
Ext.Price$0.24366
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.24366 | $0.24366 |
| 10 | $0.11370 | $1.13700 |
| 50 | $0.10890 | $5.44500 |
| 100 | $0.10430 | $10.43000 |
| 500 | $0.08011 | $40.05500 |
| 1000 | $0.07186 | $71.86000 |
| 3000 | $0.06446 | $193.38000 |
