B32776G4406K
Manufacturer:
EPCOS
Mfr.Part #:
B32776G4406K
Datasheet:
Description:

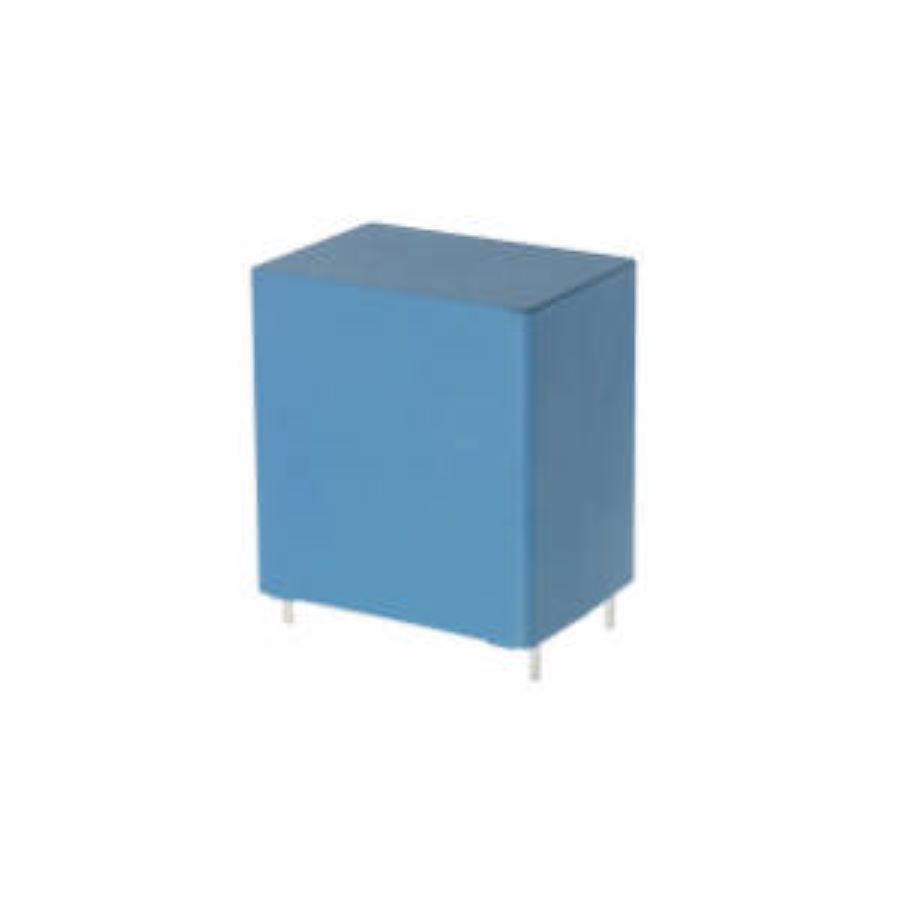

Film Capacitors Through Hole 40 µF 10 % Polypropylene (PP) Voltage Rating (DC):450 V
| Parameter | Value |
|---|---|
| Capacitance | 40 µF |
| Voltage Rating (DC) | 450 V |
| Tolerance | 10 % |
| ESR (Equivalent Series Resistance) | 5 mΩ |
| Height - Seated (Max) | 37 mm |
| Length | 42 mm |
| Width | 27.9908 mm |
| Termination | Radial |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Dielectric | Polypropylene (PP) |
| Number of Pins | 2 |
| Height | 37 mm |
| Packaging | Bulk |
| Depth | 28 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 1.2 mm |
| Lead Pitch | 37.5 mm |
| Dielectric Material | PP |
Stock: 261
Distributors
pcbx
pcbxUnit Price$9.09901
Ext.Price$9.09901
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $9.09901 | $9.09901 |
| 10 | $6.38974 | $63.89740 |
| 25 | $6.34728 | $158.68200 |
| 50 | $6.30510 | $315.25500 |
| 100 | $6.26320 | $626.32000 |
| 300 | $6.22158 | $1866.47400 |
| 500 | $6.18023 | $3090.11500 |
| 1000 | $6.13916 | $6139.16000 |
| 3000 | $6.09836 | $18295.08000 |
| 5000 | $6.05803 | $30290.15000 |
