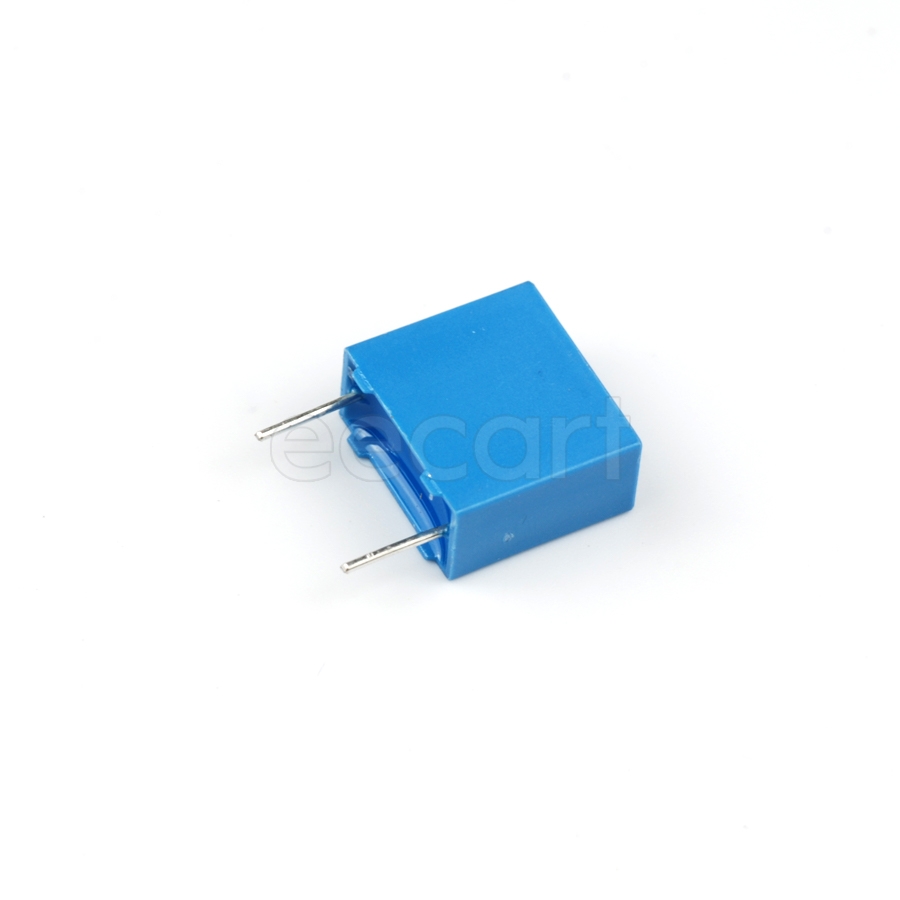

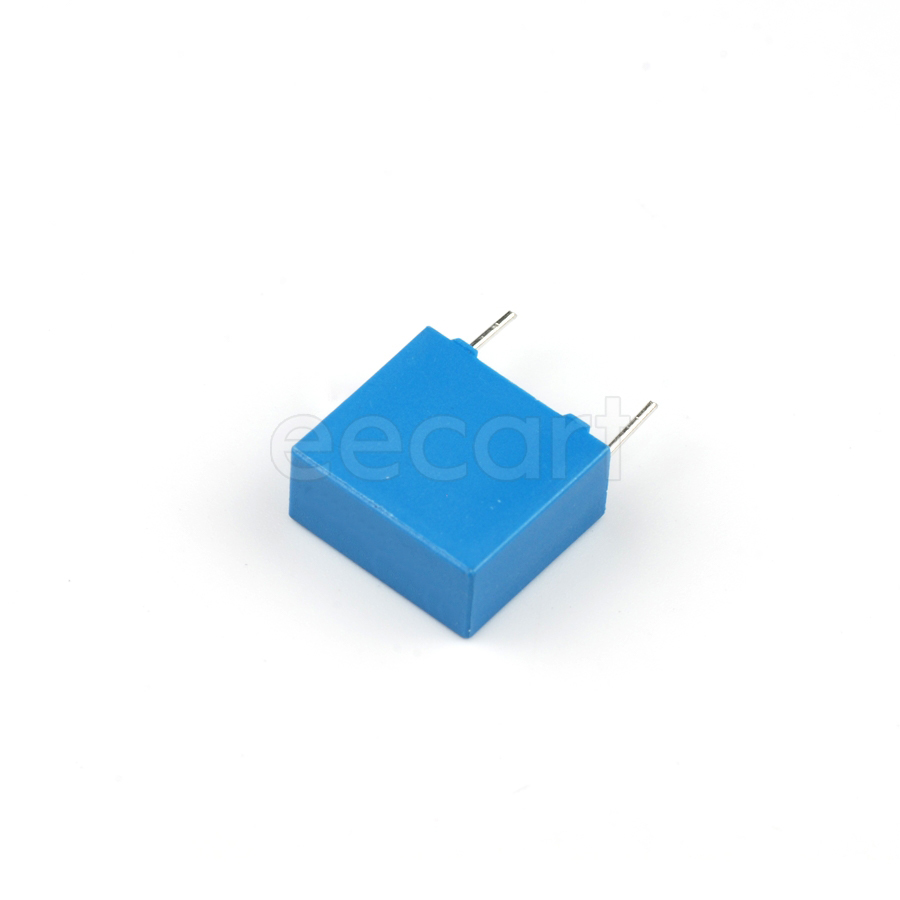

B32921C3104M
Manufacturer:
EPCOS
Mfr.Part #:
B32921C3104M
Datasheet:
Description:
Film Capacitors Through Hole 100 nF 20 % Polypropylene (PP) Voltage Rating (DC):630 V Voltage Rating (AC):305 V
| Parameter | Value |
|---|---|
| Capacitance | 100 nF |
| Voltage Rating (DC) | 630 V |
| Tolerance | 20 % |
| Height - Seated (Max) | 12 mm |
| Length | 13 mm |
| Width | 5.9944 mm |
| Termination | Radial |
| Max Operating Temperature | 110 °C |
| Min Operating Temperature | -40 °C |
| Dielectric | Polypropylene (PP) |
| Voltage Rating (AC) | 305 V |
| Number of Pins | 2 |
| Height | 12 mm |
| Packaging | Bulk |
| Depth | 6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 600 µm |
| Lead Pitch | 10 mm |
| Voltage | 305 V |
| REACH SVHC | No SVHC |
| Dielectric Material | PP |
| Contact Plating | Tin |
| Lead Length | 6 mm |
| Schedule B | 8532250020 |
