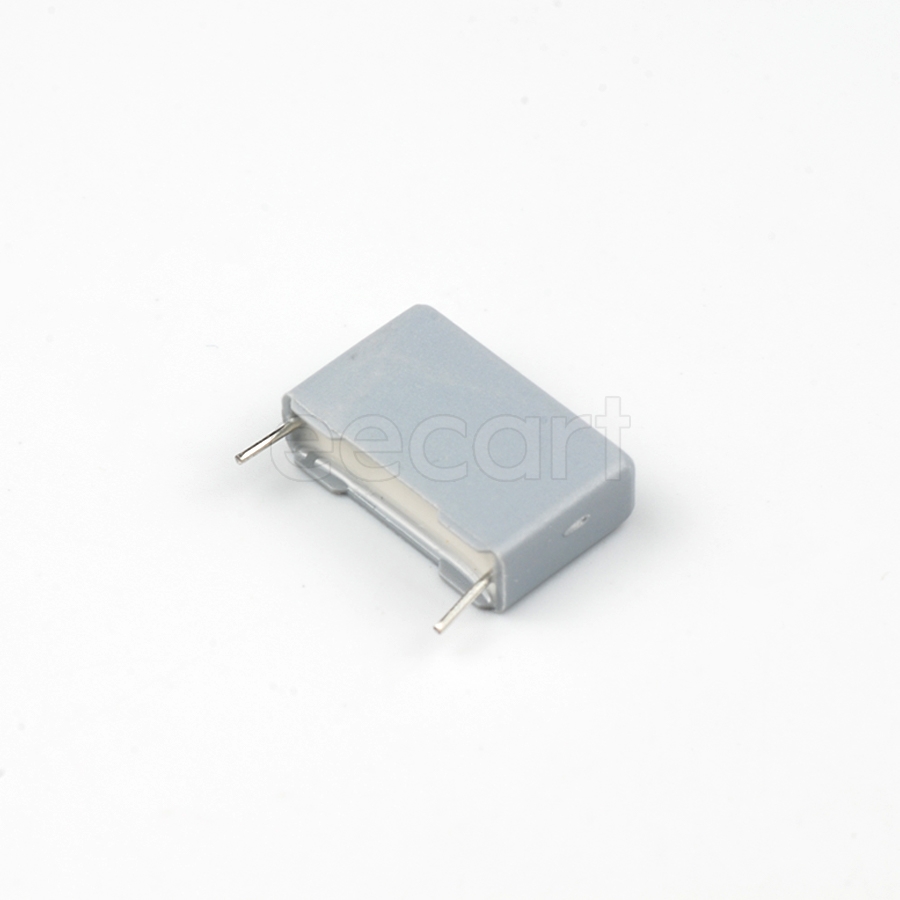

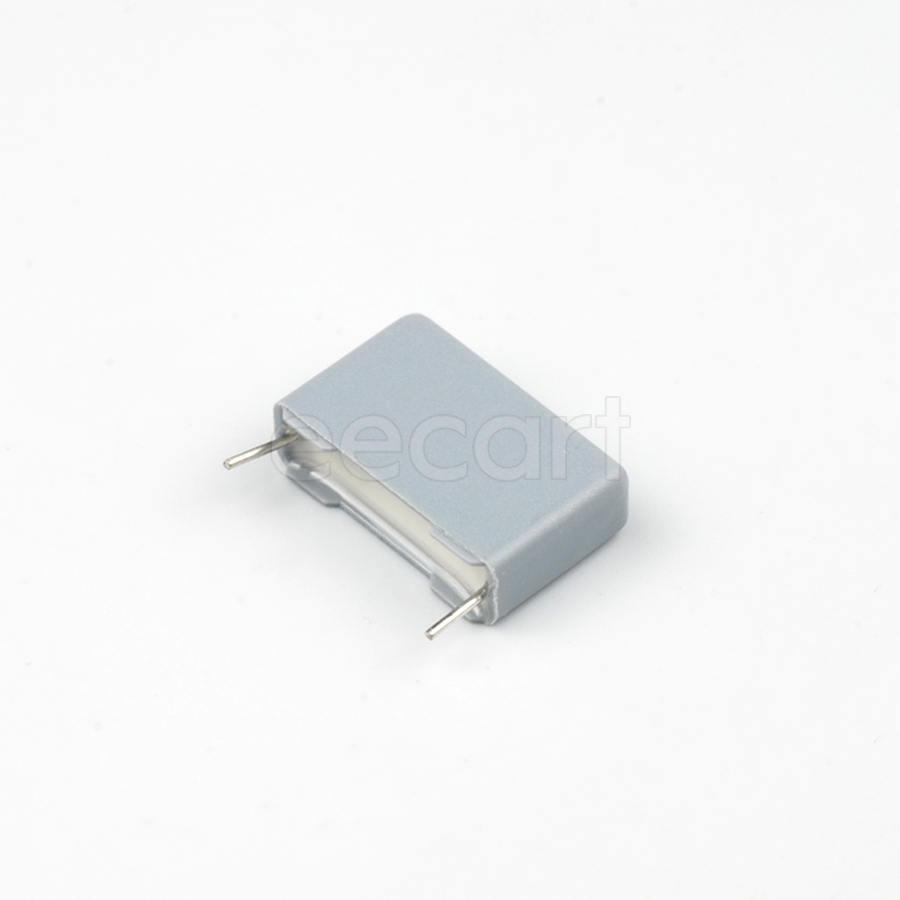

B32922C3104K289
Manufacturer:
EPCOS
Mfr.Part #:
B32922C3104K289
Datasheet:
Description:
Film Capacitors Through Hole 100 nF 10 % Polypropylene (PP) Voltage Rating (DC):630 V Voltage Rating (AC):305 V
| Parameter | Value |
|---|---|
| Capacitance | 100 nF |
| Voltage Rating (DC) | 630 V |
| Tolerance | 10 % |
| Height - Seated (Max) | 10.5 mm |
| Length | 18 mm |
| Width | 5 mm |
| Termination | Radial |
| Max Operating Temperature | 110 °C |
| Min Operating Temperature | -40 °C |
| Dielectric | Polypropylene (PP) |
| Voltage Rating (AC) | 305 V |
| Number of Pins | 2 |
| Height | 10.5 mm |
| Packaging | Reel |
| Depth | 5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 800 µm |
| Lead Pitch | 15 mm |
| Dielectric Material | Polypropylene |
| Contact Plating | Tin |
| Lifecycle Status | Production (Last Updated: 3 months ago) |
| Schedule B | 8532250020 |
Stock: 2938
Distributors
pcbx
pcbxUnit Price$0.31889
Ext.Price$0.31889
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31889 | $0.31889 |
| 10 | $0.15047 | $1.50470 |
| 50 | $0.14392 | $7.19600 |
| 100 | $0.13765 | $13.76500 |
| 500 | $0.13166 | $65.83000 |
| 1000 | $0.11294 | $112.94000 |
| 3000 | $0.09689 | $290.67000 |
| 5000 | $0.08312 | $415.60000 |
| 10000 | $0.07130 | $713.00000 |
