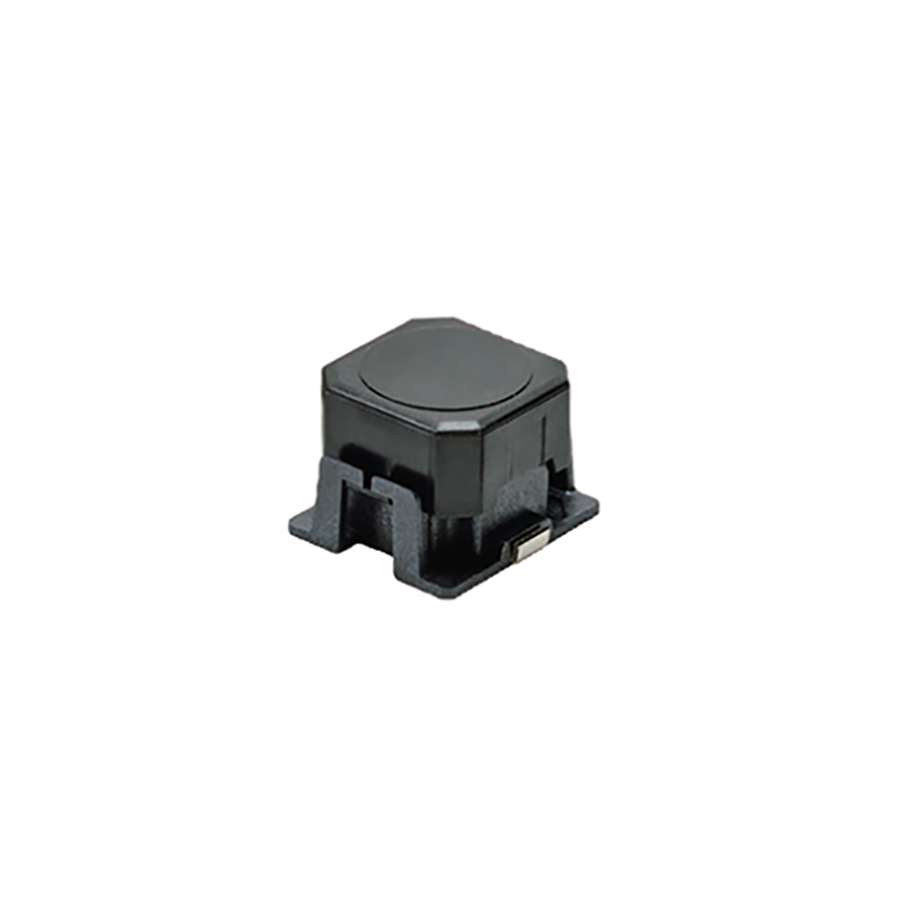

B3AL-1002P
Manufacturer:
Omron
Mfr.Part #:
B3AL-1002P
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 3 N
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 16 V |
| Length | 6.9 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 90 °C |
| Min Operating Temperature | -40 °C |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| Depth | 6.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 180 mg |
| Contact Plating | Silver |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 16 V |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 1 Mcycles |
| Operating Force | 3 N |
| Switch Travel | 1.3 mm |
| Mechanical Life | 1 Mcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Square Button |
| Schedule B | 8536509065 |
Stock: 968
Distributors
pcbx
pcbxUnit Price$0.76944
Ext.Price$0.76944
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.76944 | $0.76944 |
| 10 | $0.72583 | $7.25830 |
| 25 | $0.71985 | $17.99625 |
| 50 | $0.71813 | $35.90650 |
| 100 | $0.71642 | $71.64200 |
| 300 | $0.71471 | $214.41300 |
| 500 | $0.71301 | $356.50500 |
| 1000 | $0.68822 | $688.22000 |
