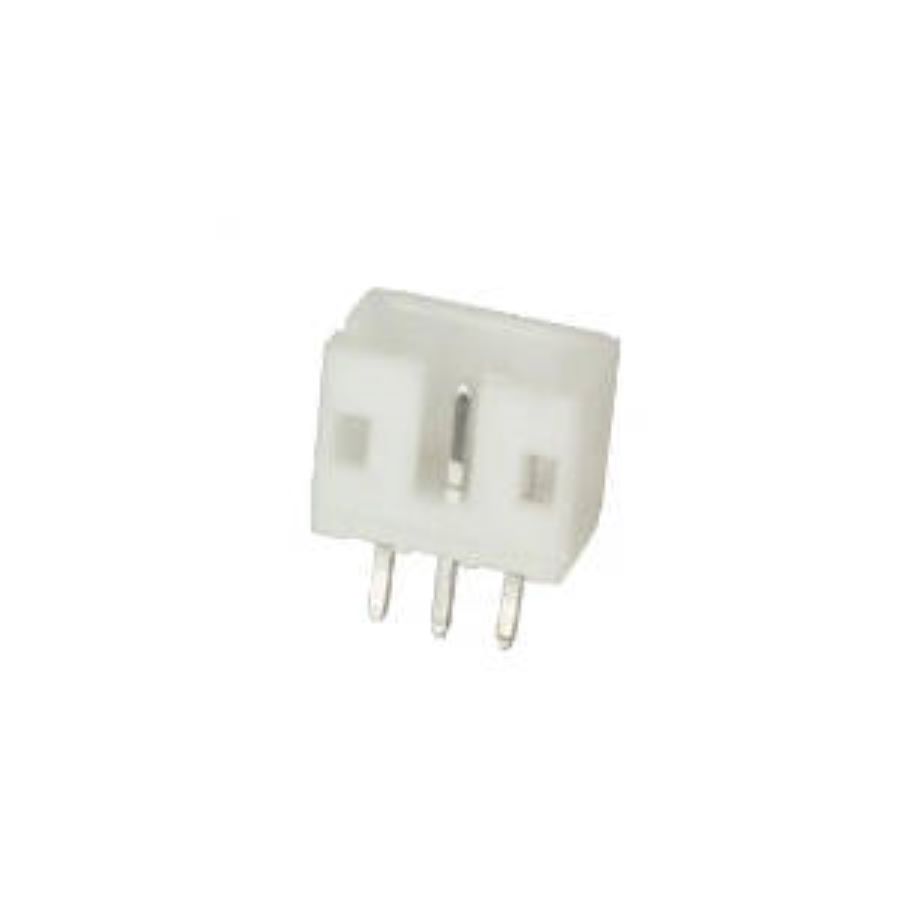

B3B-PH-K-S(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
B3B-PH-K-S(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:3 Pitch:2 mm
| Parameter | Value |
|---|---|
| Termination | Press-Fit, Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Insulation Resistance | 1 MΩ |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Gender | Male |
| Number of Contacts | 3 |
| Mounting Style | Through Hole, Vertical |
| lead free status | Lead Free |
| operating temperature | 85.0 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Connector Type | Header |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| size width | 4.50 mm |
| size length | 7.90 mm |
| size height | 6.00 mm |
| voltage rating ac | 100 V |
| Housing Color | Natural |
| pin pitch | 2.00 mm |
| Mating Post Length | 3.3 mm |
| Termination Post Length | 3.4 mm |
Stock: 63401
Distributors
pcbx
pcbxUnit Price$0.08006
Ext.Price$0.08006
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08006 | $0.08006 |
| 10 | $0.04003 | $0.40030 |
| 50 | $0.03623 | $1.81150 |
| 100 | $0.03279 | $3.27900 |
| 500 | $0.02920 | $14.60000 |
| 1000 | $0.02600 | $26.00000 |
| 3000 | $0.02493 | $74.79000 |
| 5000 | $0.02391 | $119.55000 |
| 10000 | $0.02274 | $227.40000 |
