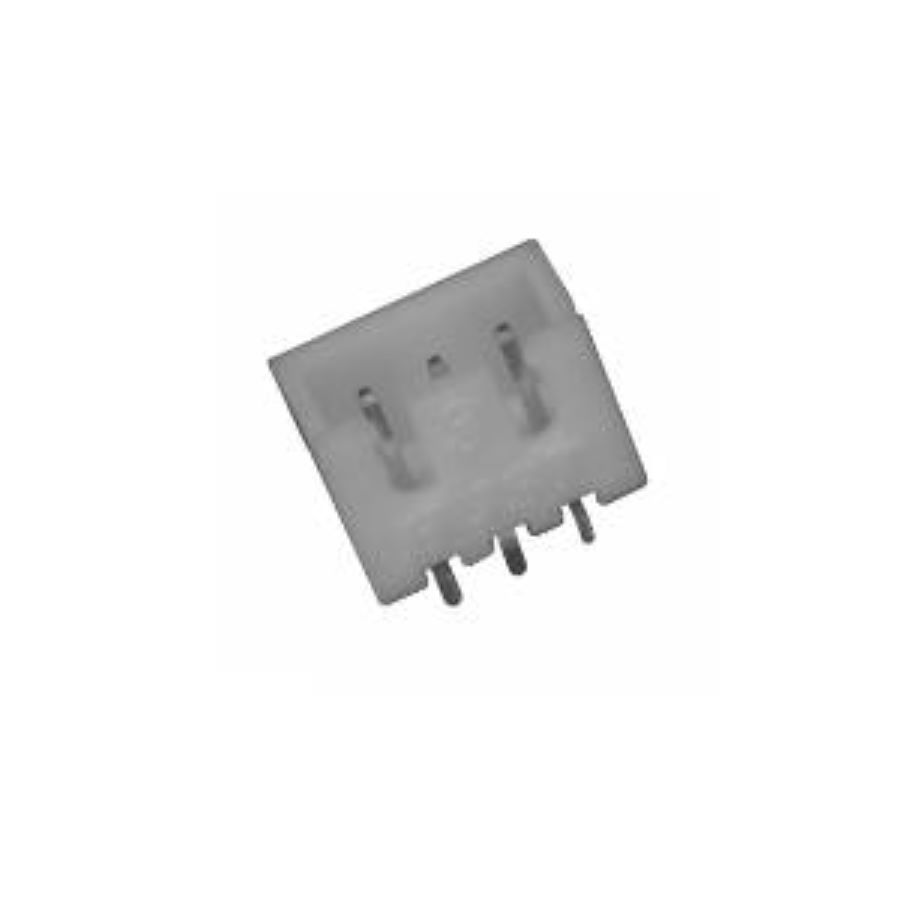

B3B-XH-AM(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
B3B-XH-AM(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:3 Pitch:2.4892 mm
| Parameter | Value |
|---|---|
| Length | 9.9 mm |
| Termination | Press-Fit |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| Depth | 5.75 mm |
| RoHS | Compliant |
| Contact Plating | Copper, Lead, Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.4892 mm |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Natural |
| Gender | Male |
| Connector Type | Male Pin |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Fastening Type | Detent |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | White |
| Termination Post Length | 3.4 mm |
Stock: 16840
Distributors
pcbx
pcbxUnit Price$0.19008
Ext.Price$0.19008
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.19008 | $0.19008 |
| 10 | $0.09504 | $0.95040 |
| 50 | $0.08545 | $4.27250 |
| 100 | $0.07682 | $7.68200 |
| 500 | $0.06296 | $31.48000 |
| 1000 | $0.05160 | $51.60000 |
| 3000 | $0.04886 | $146.58000 |
| 5000 | $0.04626 | $231.30000 |
| 10000 | $0.04341 | $434.10000 |
