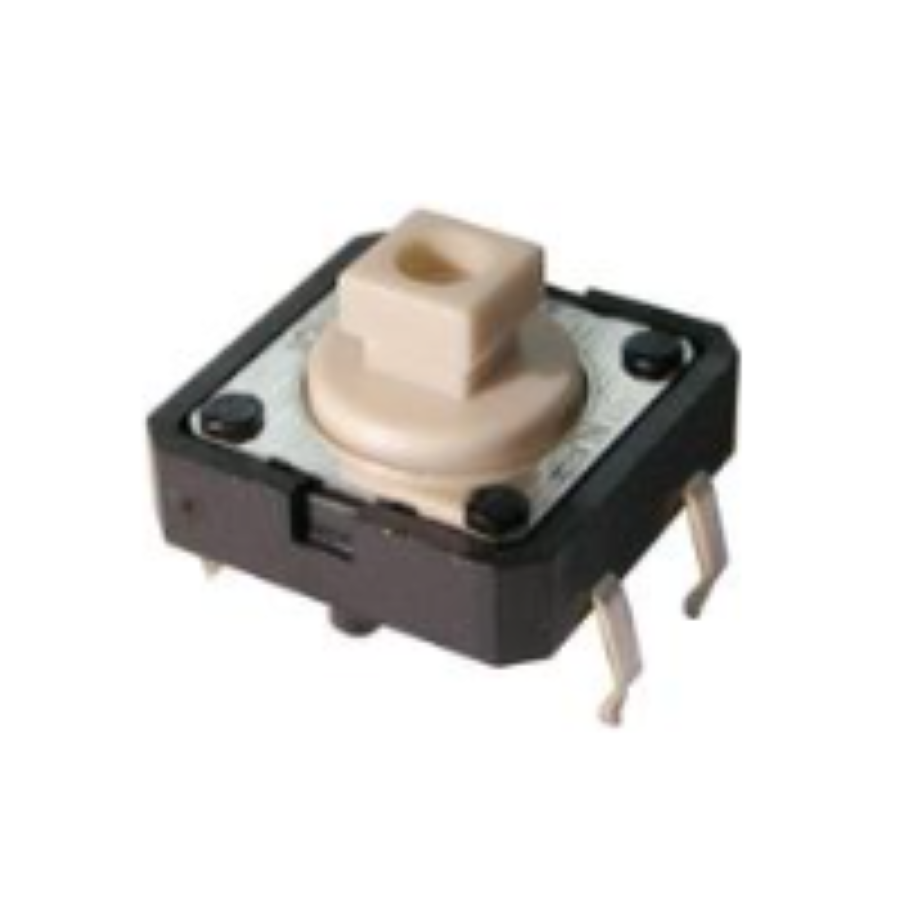

B3F-4050
Manufacturer:
Omron
Mfr.Part #:
B3F-4050
Datasheet:
Description:
Tactile Switches Through Hole SPST-NO Off-Mom 1.27 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 12 mm |
| Width | 12 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Height | 7.3 mm |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| Depth | 12 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Weight | 0.85 g |
| Contact Plating | Gold, Silver |
| Contact Material(Contact Finish) | Gold, Silver |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 24 V |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Actuator Length | 3 mm |
| Number of Poles | 1 |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Illuminated, Non-Illuminated |
| Electrical Life | 3 Mcycles |
| Operating Force | 1.27 N |
| Switch Travel | 300 µm |
| Mechanical Life | 3 Mcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Plunger for Cap |
| Mounting Direction | Straight |
Stock: 23218
Distributors
pcbx
pcbxUnit Price$0.16927
Ext.Price$0.16927
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.16927 | $0.16927 |
| 10 | $0.15217 | $1.52170 |
| 25 | $0.15133 | $3.78325 |
| 50 | $0.15090 | $7.54500 |
| 100 | $0.15047 | $15.04700 |
| 300 | $0.14908 | $44.72400 |
| 500 | $0.14770 | $73.85000 |
| 1000 | $0.14633 | $146.33000 |
| 3000 | $0.14497 | $434.91000 |
| 5000 | $0.14363 | $718.15000 |
