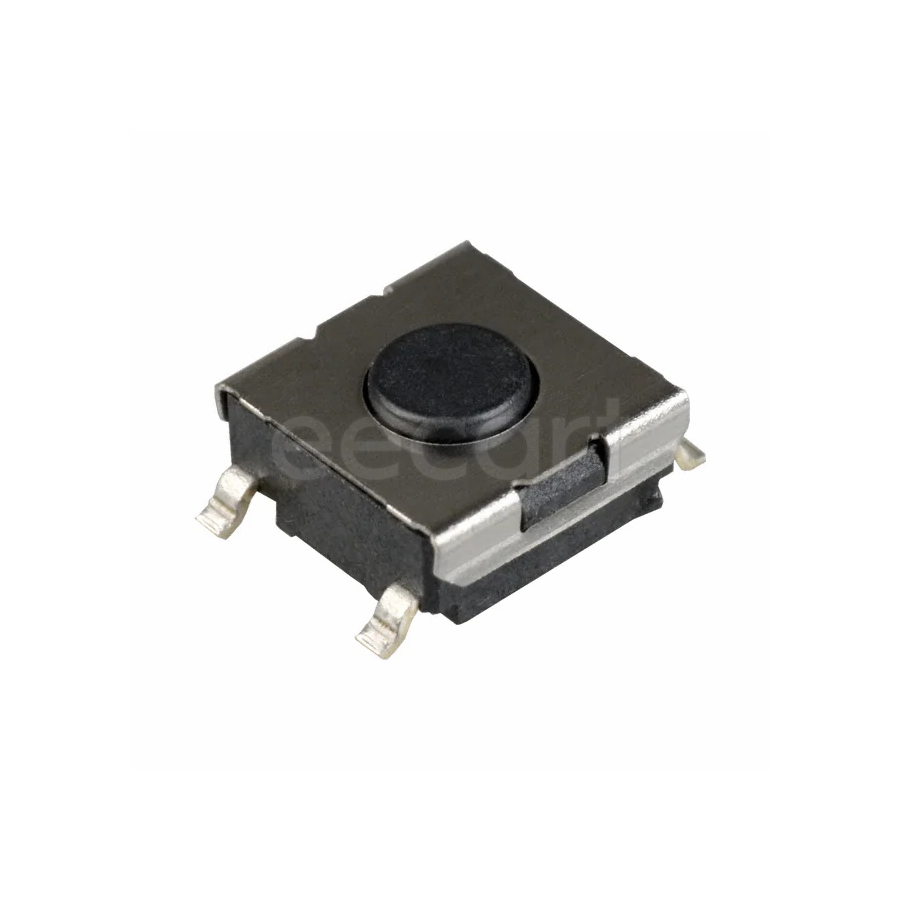

B3FS-1000P
Manufacturer:
Omron
Mfr.Part #:
B3FS-1000P
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 980 mN Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 6 mm |
| Width | 6 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Height | 3.3 mm |
| Circuit Type | SPST-NO |
| Material | Plastic |
| Packaging | Reel |
| Depth | 8 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 0.2 g |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 24 V |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Actuator Length | 500 µm |
| Ambient Temperature Range High | 70 °C |
| Number of Poles | 1 |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Illuminated, Non-Illuminated |
| Electrical Life | 1 Mcycles |
| Operating Force | 980 mN |
| Switch Travel | 250 µm |
| Mechanical Life | 1 Mcycles |
| Contact Current Rating | 50 mA |
| Life (Cycles) | 1 MCycles |
| Mounting Direction | Straight |
| Actuator Type | Standard |
Stock: 6899
Distributors
pcbx
pcbxUnit Price$0.38216
Ext.Price$0.38216
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.38216 | $0.38216 |
| 10 | $0.30264 | $3.02640 |
| 25 | $0.28384 | $7.09600 |
| 50 | $0.27383 | $13.69150 |
| 100 | $0.26417 | $26.41700 |
| 300 | $0.25680 | $77.04000 |
| 500 | $0.24964 | $124.82000 |
| 1000 | $0.23083 | $230.83000 |
| 3000 | $0.21886 | $656.58000 |
