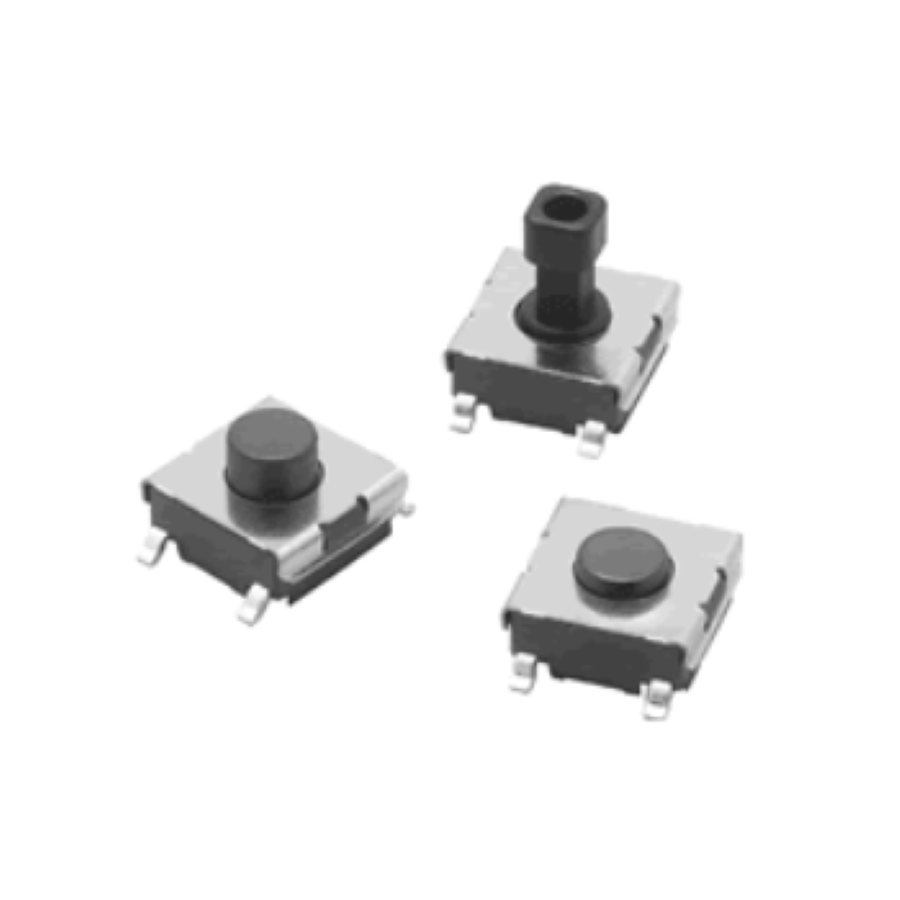

B3FS-1015P
Manufacturer:
Omron
Mfr.Part #:
B3FS-1015P
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO OFF - (ON) 2.55 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 6 mm |
| Width | 6 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| RoHS | Compliant |
| Contact Plating | Silver |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 24 V |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Blue |
| Throw Configuration | SPST |
| Switch Function | OFF - (ON) |
| Illumination Type | Non-Illuminated |
| Operating Force | 2.55 N |
| Mechanical Life | 100 kcycles |
| Actuator Type | Standard |
| Mounting Direction | Straight |
Stock: 10414
Distributors
pcbx
pcbxUnit Price$0.38131
Ext.Price$0.38131
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.38131 | $0.38131 |
| 10 | $0.37360 | $3.73600 |
| 25 | $0.36605 | $9.15125 |
| 50 | $0.35865 | $17.93250 |
| 100 | $0.35140 | $35.14000 |
| 300 | $0.34430 | $103.29000 |
| 500 | $0.33734 | $168.67000 |
| 1000 | $0.33051 | $330.51000 |
