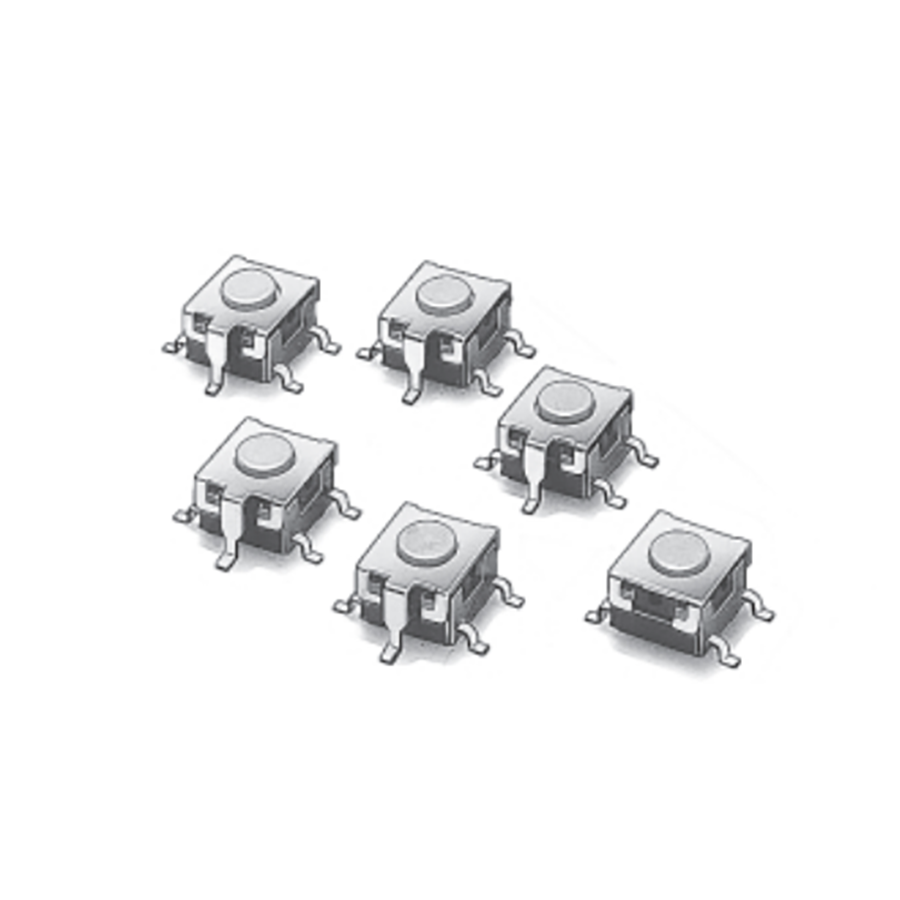

B3S-1002P
Manufacturer:
Omron
Mfr.Part #:
B3S-1002P
Datasheet:
Description:
Tactile Switches SMD/SMT Off-Mom 2.26 N
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 6.6 mm |
| Width | 6 mm |
| Termination | Gull Wing, SMD/SMT |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Height | 4.3 mm |
| Packaging | Reel |
| Depth | 9 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Ratings | Dust Tight, IP67, Waterproof |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Bronze |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 24 V |
| Orientation | Vertical |
| Actuator Length | 800 µm |
| Ambient Temperature Range High | 70 °C |
| Number of Poles | 1 |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 500000 cycles |
| Operating Force | 2.26 N |
| Switch Travel | 250 µm |
| Mechanical Life | 300000 cycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Round |
| Life (Cycles) | 500 kCycles |
Stock: 7050
Distributors
pcbx
pcbxUnit Price$0.36334
Ext.Price$0.36334
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.36334 | $0.36334 |
| 10 | $0.32915 | $3.29150 |
| 25 | $0.32801 | $8.20025 |
| 50 | $0.32687 | $16.34350 |
| 100 | $0.32573 | $32.57300 |
| 300 | $0.32487 | $97.46100 |
| 500 | $0.32402 | $162.01000 |
| 1000 | $0.31205 | $312.05000 |
| 3000 | $0.30386 | $911.58000 |
| 5000 | $0.29588 | $1479.40000 |
| 10000 | $0.28811 | $2881.10000 |
