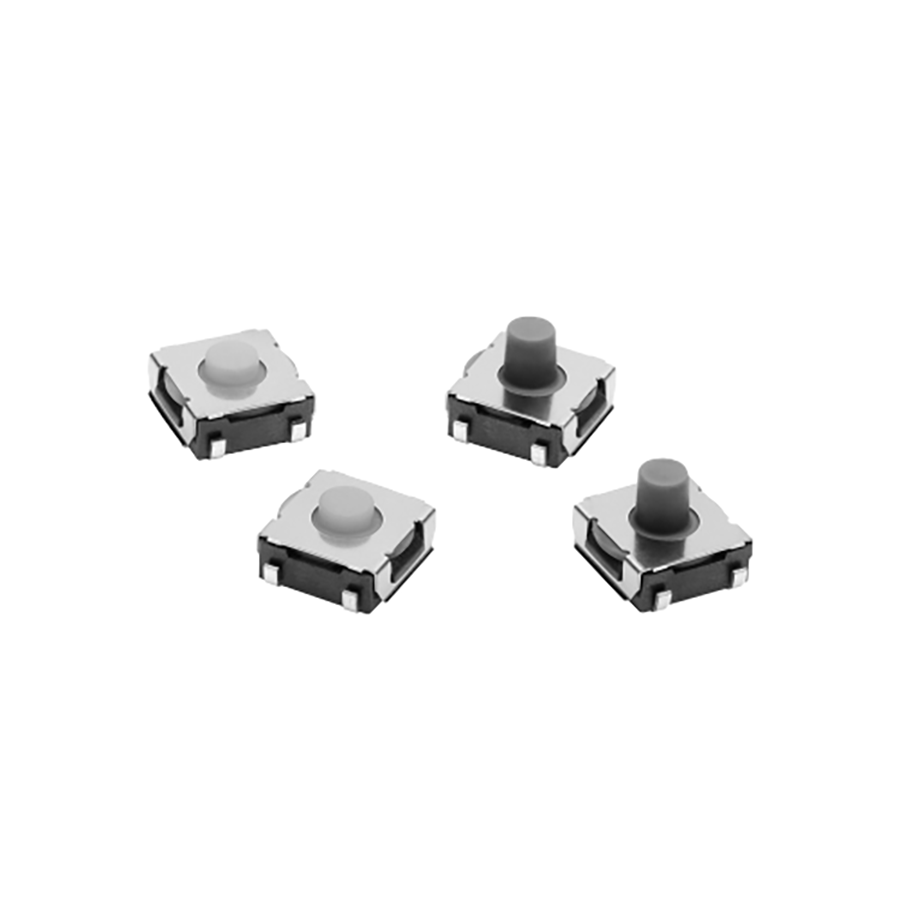

B3SL-1005P
Manufacturer:
Omron
Mfr.Part #:
B3SL-1005P
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 3.5 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 6 mm |
| Width | 6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 90 °C |
| Min Operating Temperature | -25 °C |
| Height | 3.4 mm |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Ratings | Dust Tight, IP67, Waterproof |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Actuator Length | 900 µm |
| Ambient Temperature Range High | 90 °C |
| Throw Configuration | SPST |
| Connector Type | SMD/SMT |
| Number of Positions | 2 |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Operating Force | 3.5 N |
| Switch Travel | 600 µm |
| Actuator Material | Rubber |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Standard |
| Life (Cycles) | 100 kCycles |
| Mounting Direction | Straight |
Stock: 7449
Distributors
pcbx
pcbxUnit Price$0.60101
Ext.Price$0.60101
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.60101 | $0.60101 |
| 10 | $0.57793 | $5.77930 |
| 25 | $0.54031 | $13.50775 |
| 50 | $0.50312 | $25.15600 |
| 100 | $0.46850 | $46.85000 |
| 300 | $0.44075 | $132.22500 |
| 500 | $0.41464 | $207.32000 |
| 1000 | $0.39669 | $396.69000 |
| 3000 | $0.35821 | $1074.63000 |
