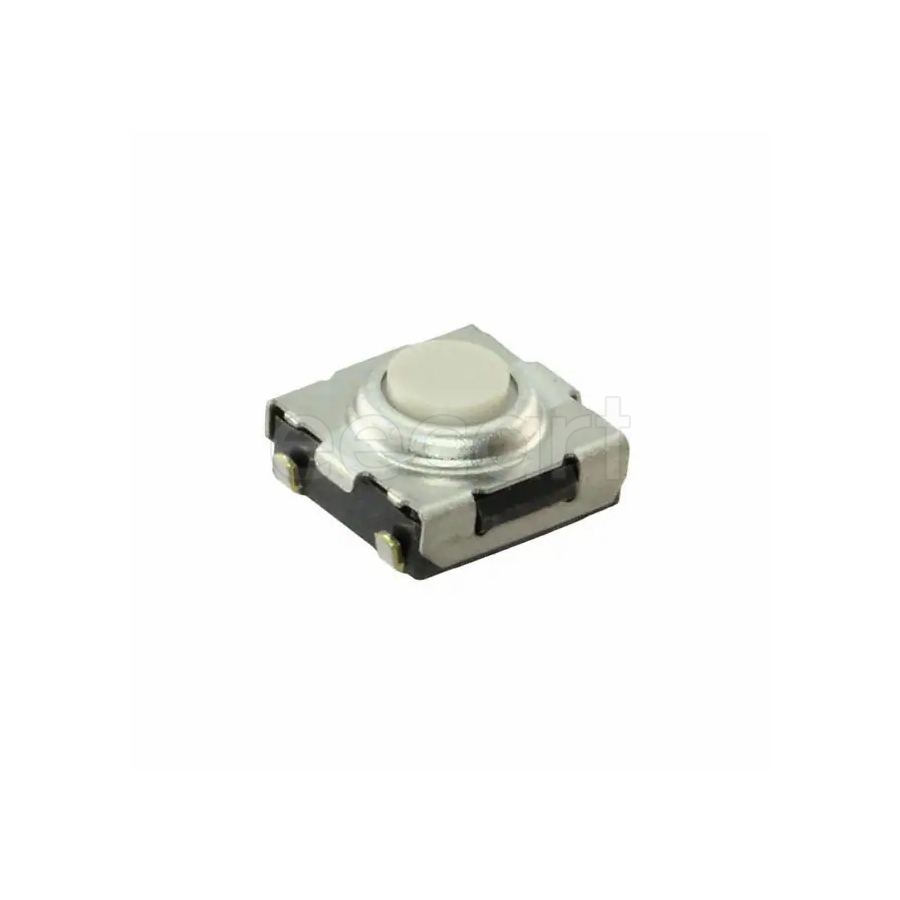

B3SN-3112
Manufacturer:
Omron
Mfr.Part #:
B3SN-3112
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 1.6 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 6 mm |
| Width | 6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Height | 3.1 mm |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| Depth | 7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Weight | 200 mg |
| Ratings | Dust Tight, IP67, Waterproof |
| Contact Plating | Gold, Silver |
| Contact Material(Contact Finish) | Gold, Silver |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 24 V |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Number of Poles | 1 |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 50 kcycles |
| Operating Force | 1.6 N |
| Switch Travel | 250 µm |
| Mechanical Life | 50 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Standard |
| Mounting Direction | Straight |
Stock: 1962
Distributors
pcbx
pcbxUnit Price$0.52929
Ext.Price$0.52929
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.52929 | $0.52929 |
