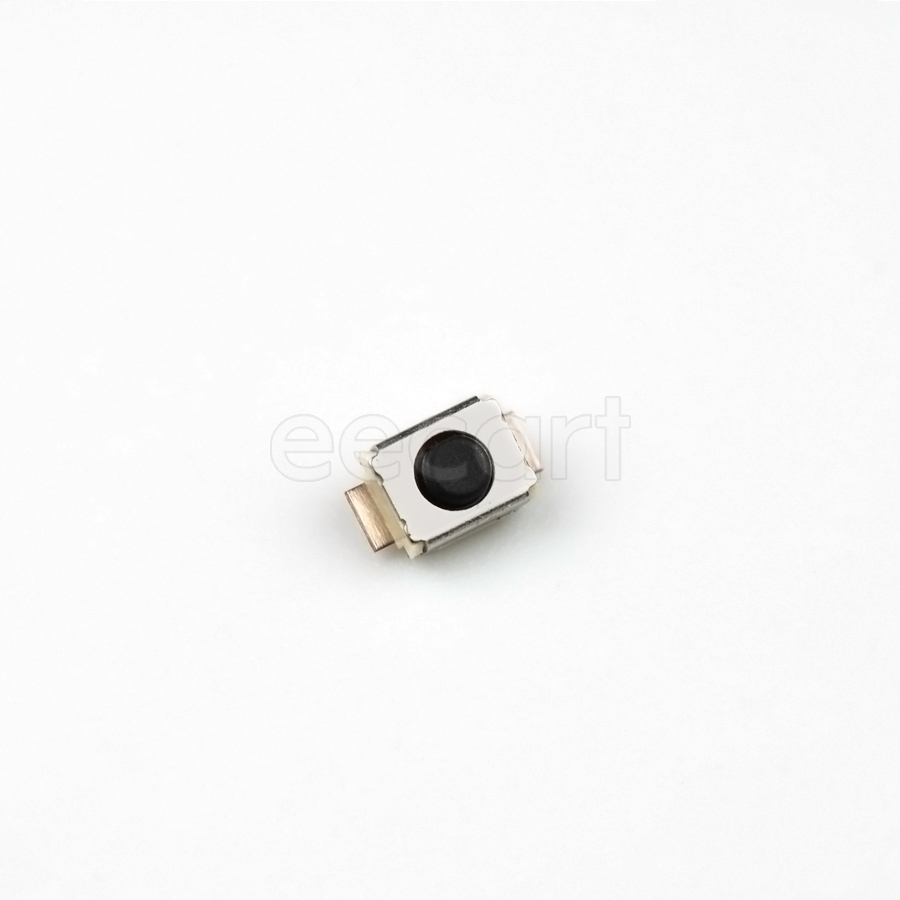

B3U-1100P
Manufacturer:
Omron
Mfr.Part #:
B3U-1100P
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 1.5 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 3 mm |
| Width | 2.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Height | 1.6 mm |
| Circuit Type | SPST-NO |
| Depth | 4 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 0.022 g |
| Ratings | Dust Proof |
| Contact Plating | Silver |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Actuator Length | 400 µm |
| Ambient Temperature Range High | 70 °C |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Illuminated, Non-Illuminated |
| Electrical Life | 200 kcycles |
| Operating Force | 1.5 N |
| Switch Travel | 150 µm |
| Mechanical Life | 200 kcycles |
| Contact Current Rating | 50 mA |
| Life (Cycles) | 200 kCycles |
| Ingress Protection | Dust Proof |
| Mounting Direction | Straight |
| Packaging | Reel |
| Actuator Type | Standard |
Stock: 13215
Distributors
pcbx
pcbxUnit Price$0.37526
Ext.Price$0.37526
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.37526 | $0.37526 |
| 10 | $0.37128 | $3.71280 |
| 25 | $0.36735 | $9.18375 |
| 50 | $0.36346 | $18.17300 |
| 100 | $0.35961 | $35.96100 |
| 300 | $0.35580 | $106.74000 |
| 500 | $0.35203 | $176.01500 |
| 1000 | $0.34830 | $348.30000 |
| 3000 | $0.34461 | $1033.83000 |
