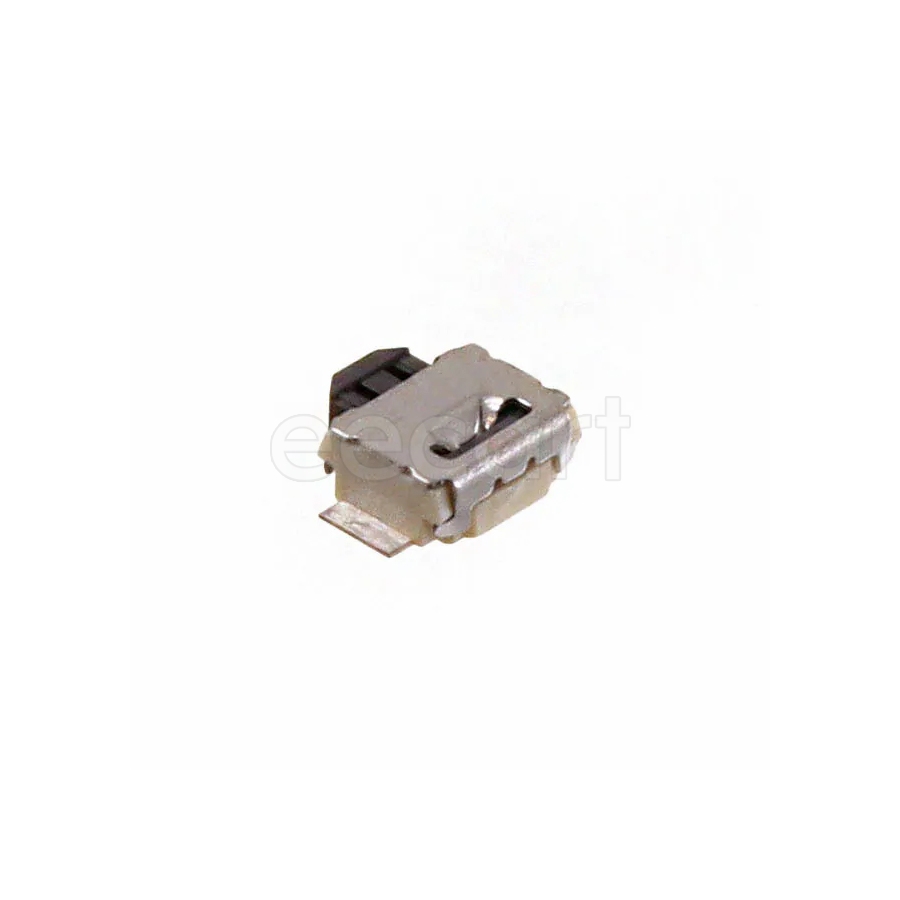

B3U-3000P
Manufacturer:
Omron
Mfr.Part #:
B3U-3000P
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 1.59 N Surface Mount, Right Angle
| Parameter | Value |
|---|---|
| Capacitance | 470 µF |
| Voltage Rating (DC) | 12 V |
| Tolerance | 20 % |
| Length | 3 mm |
| Width | 2.5 mm |
| Termination | SMD/SMT |
| Diameter | 10 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Height | 1.6 mm |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| Voltage Rating | 50 V |
| Depth | 3.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 5 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Weight | 0.022 g |
| Ratings | Dust Proof, IP40 |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Actuator Length | 700 µm |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Illuminated, Non-Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 1.59 N |
| Switch Travel | 200 µm |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Rectangular Button |
| Ingress Protection | Dust Proof |
| Mounting Direction | Surface Mount, Right Angle |
Stock: 4304
Distributors
pcbx
pcbxUnit Price$0.46337
Ext.Price$0.46337
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.46337 | $0.46337 |
| 10 | $0.39583 | $3.95830 |
| 25 | $0.39156 | $9.78900 |
| 50 | $0.36501 | $18.25050 |
| 100 | $0.34026 | $34.02600 |
| 300 | $0.33768 | $101.30400 |
| 500 | $0.33513 | $167.56500 |
| 1000 | $0.33513 | $335.13000 |
| 3000 | $0.33513 | $1005.39000 |
