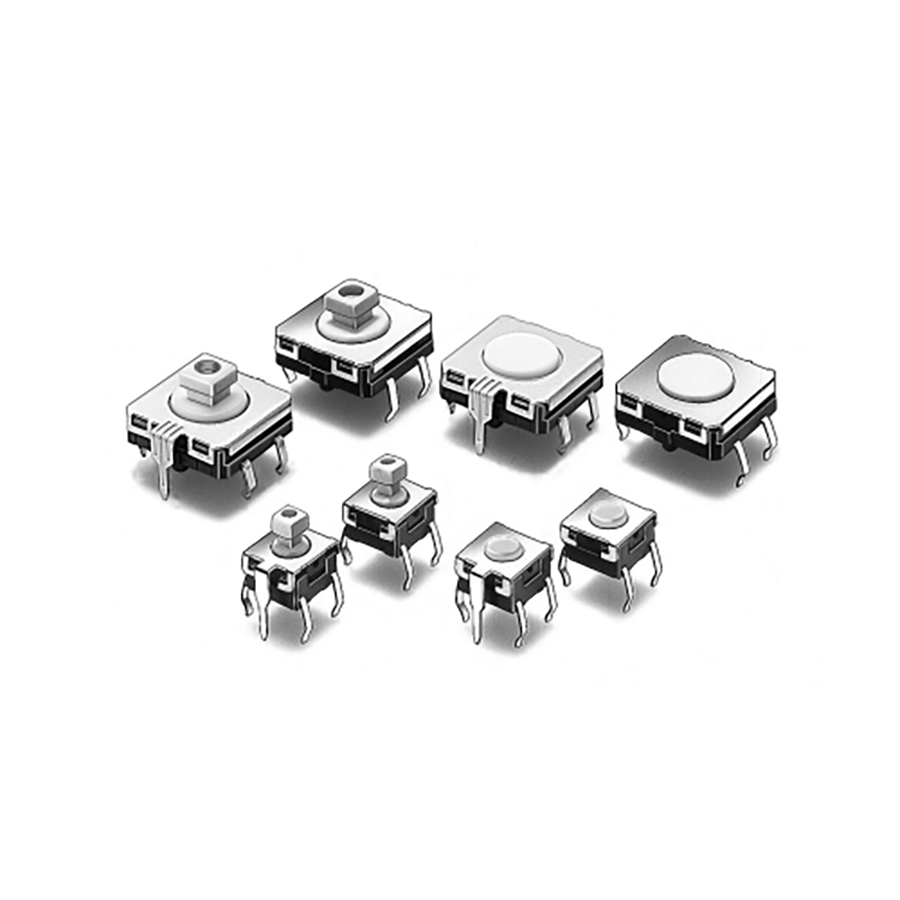

B3W-1102
Manufacturer:
Omron
Mfr.Part #:
B3W-1102
Datasheet:
Description:
Tactile Switches Through Hole SPST-NO Off-Mom 2.26 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 6 mm |
| Width | 6 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Height | 7.8 mm |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Ratings | Dust Tight, IP67, Waterproof |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 24 V |
| Orientation | Straight |
| Actuator Length | 900 µm |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Illuminated, Non-Illuminated |
| Operating Force | 2.26 N |
| Switch Travel | 250 µm |
| Mechanical Life | 300 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Standard |
| IP Rating(Ingress Protection) | IP67 |
| Mounting Direction | Straight |
Stock: 261
Distributors
pcbx
pcbxUnit Price$0.36334
Ext.Price$0.36334
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.36334 | $0.36334 |
| 10 | $0.32402 | $3.24020 |
| 25 | $0.24793 | $6.19825 |
| 50 | $0.24621 | $12.31050 |
| 100 | $0.24451 | $24.45100 |
