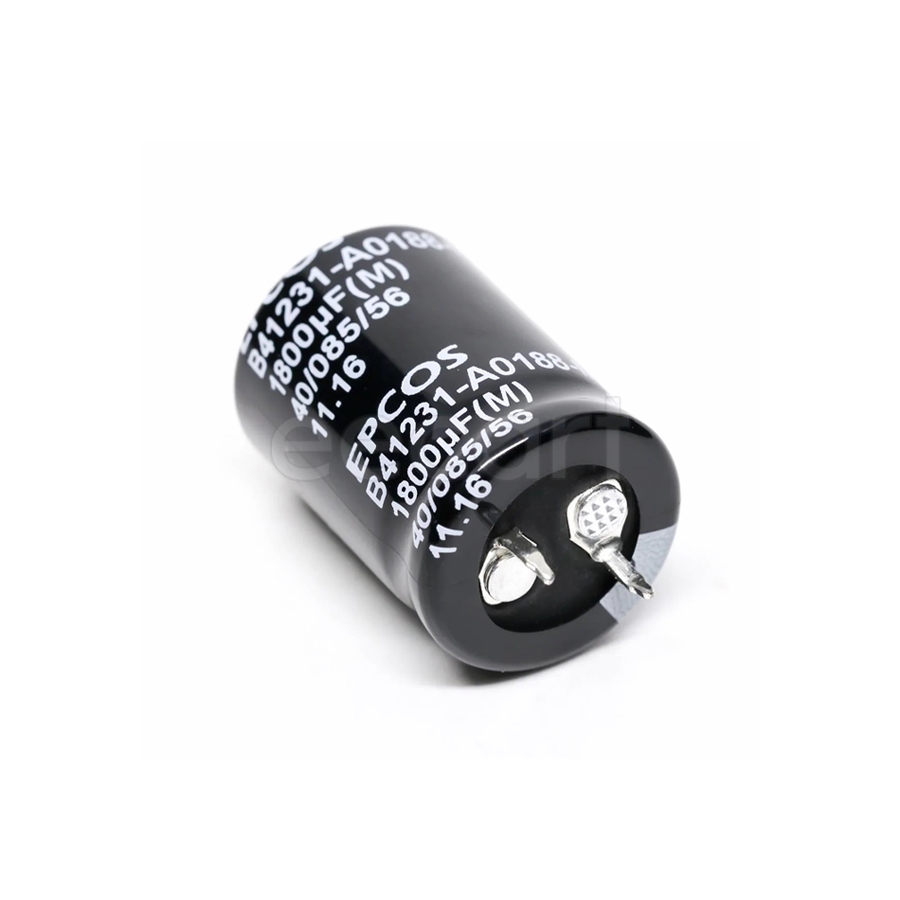

B41231A9568M000
Manufacturer:
EPCOS
Mfr.Part #:
B41231A9568M000
Datasheet:
Description:
Aluminum Electrolytic Capacitors 35.00mmD×47.00mmH Through Hole 5.6 mF 20 % 100 V
| Parameter | Value |
|---|---|
| Capacitance | 5.6 mF |
| Voltage Rating (DC) | 100 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 6.34 A |
| Length | 45 mm |
| Termination | Snap in |
| Diameter | 35 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Dissipation Factor | 0.15 % |
| Height | 45 mm |
| Packaging | Bulk |
| Voltage Rating | 100 V |
| RoHS | Compliant |
| Lead Diameter | 800 µm |
| Lead Pitch | 10 mm |
| Voltage | 100 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Aluminium |
| Contact Plating | Tin |
| Test Frequency | 120 Hz |
| Lifecycle Status | Production (Last Updated: 2 years ago) |
| Height - Seated (Max) | 47 mm |
| Ripple Current @ Low Frequency | 6.34 A @ 120 Hz |
Stock: 185
Distributors
pcbx
pcbxUnit Price$5.36297
Ext.Price$5.36297
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.36297 | $5.36297 |
| 10 | $3.12306 | $31.23060 |
| 25 | $3.05461 | $76.36525 |
| 50 | $2.98766 | $149.38300 |
| 100 | $2.92215 | $292.21500 |
