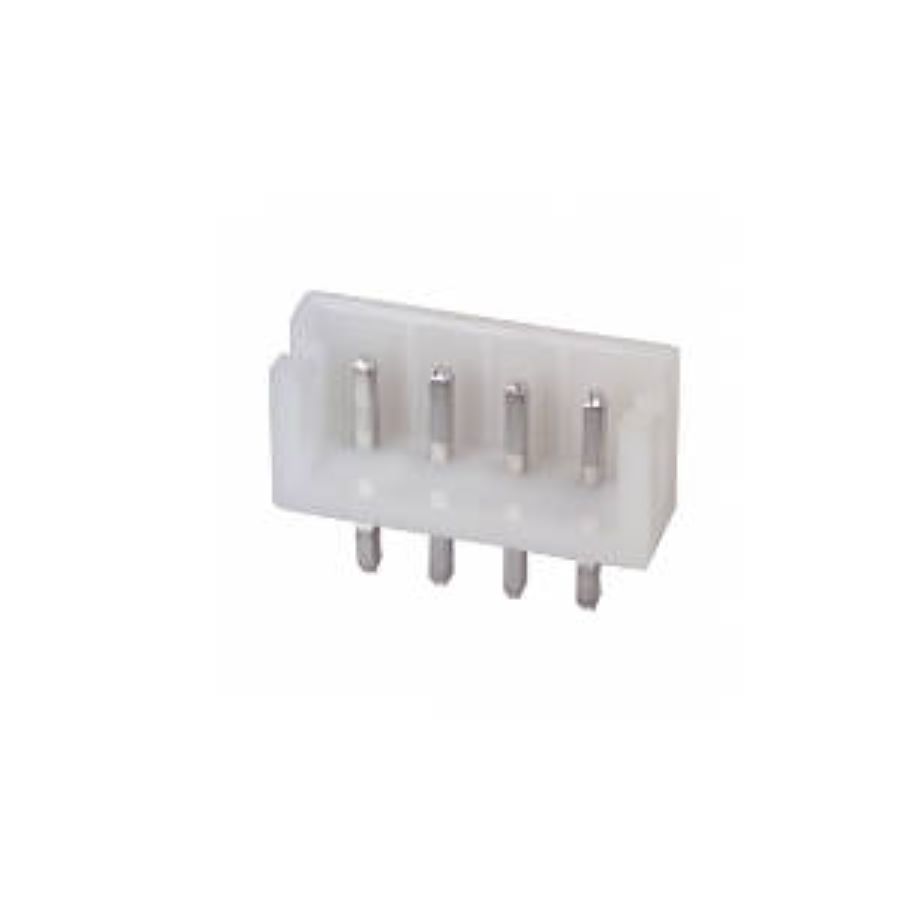

B4B-EH-A(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
B4B-EH-A(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Tin, Tin Lead |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.5 mm |
| Gender | Male |
| Number of Contacts | 4 |
| Mounting Style | Through Hole, Vertical |
| lead free status | Lead Free |
| operating temperature | 85.0 °C |
| rohs status | Compliant |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| size width | 3.80 mm |
| size length | 12.5 mm |
| size height | 6.00 mm |
| Housing Color | White |
| pin pitch | 2.50 mm |
| Mating Post Length | 3.3 mm |
| Termination Post Length | 3.2 mm |
Stock: 5086
Distributors
pcbx
pcbxUnit Price$0.08720
Ext.Price$0.08720
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08720 | $0.08720 |
| 10 | $0.07198 | $0.71980 |
| 50 | $0.06643 | $3.32150 |
| 100 | $0.06130 | $6.13000 |
| 500 | $0.05645 | $28.22500 |
| 1000 | $0.05198 | $51.98000 |
| 3000 | $0.04634 | $139.02000 |
| 5000 | $0.04539 | $226.95000 |
| 10000 | $0.04446 | $444.60000 |
